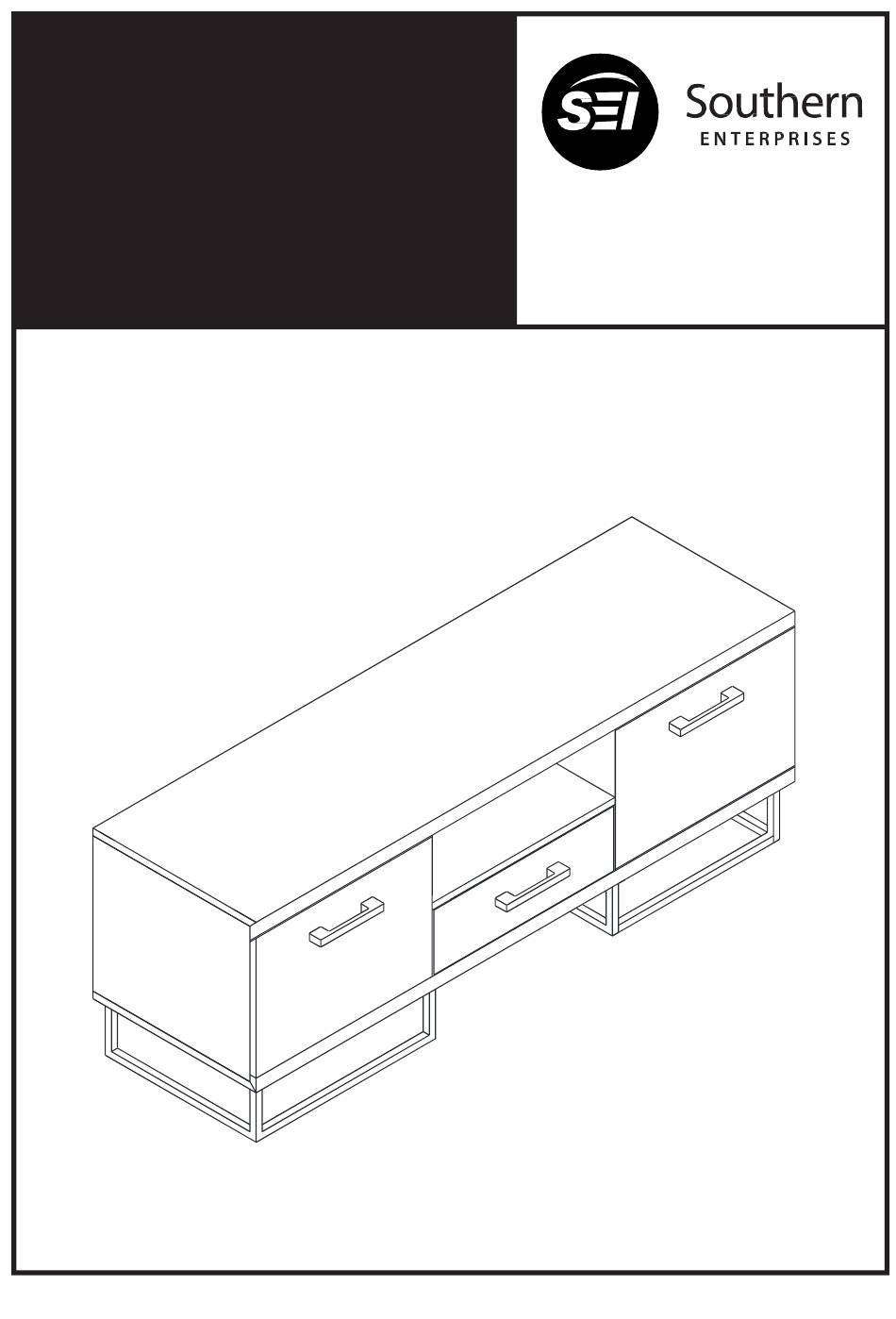

- Page 1 MS904500TX Liam Media Console For assistance with assembly, contact: Southern Enterprises Inc. Customer Service 1-800-633-5096 service@seidal.com www.seidal.com...
- Page 2 MS904500TX Liam Media Console Assembly Instructions Please review all parts and hardware before disposing of any packaging. Call Customer Service if missing hardware. Do not return to store/retailer. Using a screw that is too long will cause damage. Before beginning assembly, separate each type of screw. Carefully study the screw diagrams below.
- Page 3 MS904500TX Liam Media Console For assistance with assembly contact: Southern Enterprises Inc. Customer Service 1-800-633-5096 service@seidal.com www.seidal.com PARTS LIST: DESCRIPTION DESCRIPTION TOP PANEL CENTER BACK PANEL BOTTOM PANEL DRAWER FRONT PANEL LEFT PANEL DRAWER LEFT PANEL RIGHT PANEL DRAWER RIGHT PANEL...
- Page 4 Liam Media Console Assembly Instructions Attach the steel legs (6) with bottom panel (B) using hardware (1) (2) (3) (4) as shown in figure 1. Figure 1 Customer Service 1-800-633-5096 service@seidal.com Southern Enterprises, Inc. 600 Freeport Pkwy Ste: 200 Coppell, Texas 75019...
- Page 5 MS904500TX Liam Media Console Assembly Instructions Attach the right center divider (E), left center divider (Q) and fixed shelf (P) using wood dowels (5) as shown in figure 2. Figure 2...
- Page 6 MS904500TX Liam Media Console Assembly Instructions Assemble the panels (E), (Q) and (P) with bottom panel (B) using wood dowels (5) as shown in figure 3. Switch the lock as shown in figure 3. Figure 3...
- Page 7 MS904500TX Step 4 Liam Media Console Assembly Instructions A ss emb le the lef t pa ne l (C) and right panel (D) to the assembled unit using wood d o we ls (5 ) a s s h own in figure 4.
- Page 8 MS904500TX Step 5 Liam Media Console Assembly Instructions Assemble the top panel (A) to the assembled unit using wood d o we ls (5 ) a s s h o wn in figure 5. Switch the lock as shown in figure 5.
- Page 9 MS904500TX Liam Media Console Assembly Instructions Install cam locks (12) into the drawer back panel (O). Assemble the drawer left panel (L), drawer right panel (M), and drawer back panel (O) using cam bolts (11) as shown in figure 6.
- Page 10 MS904500TX Liam Media Console Assembly Instructions Attach the back panels (H), (J), and (I) to the assembled unit using screws (7) as shown in figure 7. Figure 7...
- Page 11 MS904500TX Liam Media Console Assembly Instructions Tighten the hinges (10) on the left door panel (F) and right door panel (G) using s c re ws (9 ) a s s h o wn in figure 8. Tighten the door handles...
- Page 12 MS904500TX Liam Media Console Assembly Instructions Insert the drawer into the assembly as shown in figure Figure 9...
- Page 13 This unit contains a permanent warning sticker located on back panel. Do not allow children under 16 years to move the cart. Model: MS904500TX Liam Media Console Southern Enterprises, Inc 600 Freeport Parkway,...
-
Page 14: Parts Replacement Form
If damages or missing parts are not reported within 90 days of your receipt, we are under no obligation to provide parts or replacement merchandise. Please contact Southern Enterprises at 800-633-5096 or in Dallas 972-869-0111/ 9am – 4pm Mon- Fri Central time if you have product issues or email us at service@ hollyandmartin.com...
