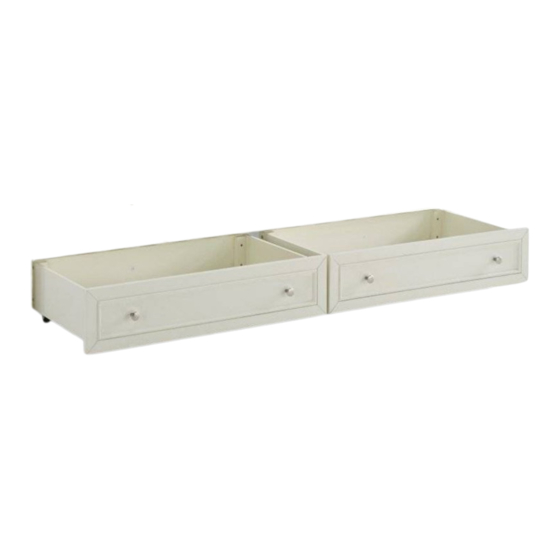

Homestyles Bunk Bed Drawers 20 05530 0555 Manual

Homestyles Bunk Bed Drawers 20 05530 0555 Manual

Advertisement

Quick Links

IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
Y1.
Drawer Front
2 pcs.
Y4.
Drawer Bottom
2 pcs.
Hardware List
Hex Wrench
1 pc.
Tool(s) required for assembly: Phillips screwdriver
9
20 05530 0555
Bunk Bed Drawers
Y2.
Drawer Back
2 pcs.
Y5.
Drawer Support
4 pcs.
M6x40
Head Cap Bolt
16 pcs. (+1 extra)
Y3.
Drawer Side
4 pcs.
Y6.
Drawer Support
2 pcs.
Knob (30mm)
4 pcs.
M4x1"
Machine Screw
4 pcs.
