Homestyles 20 05503 0181 Manual

Pedestal desk
Hide thumbs

Advertisement

Quick Links

Download this manual
IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

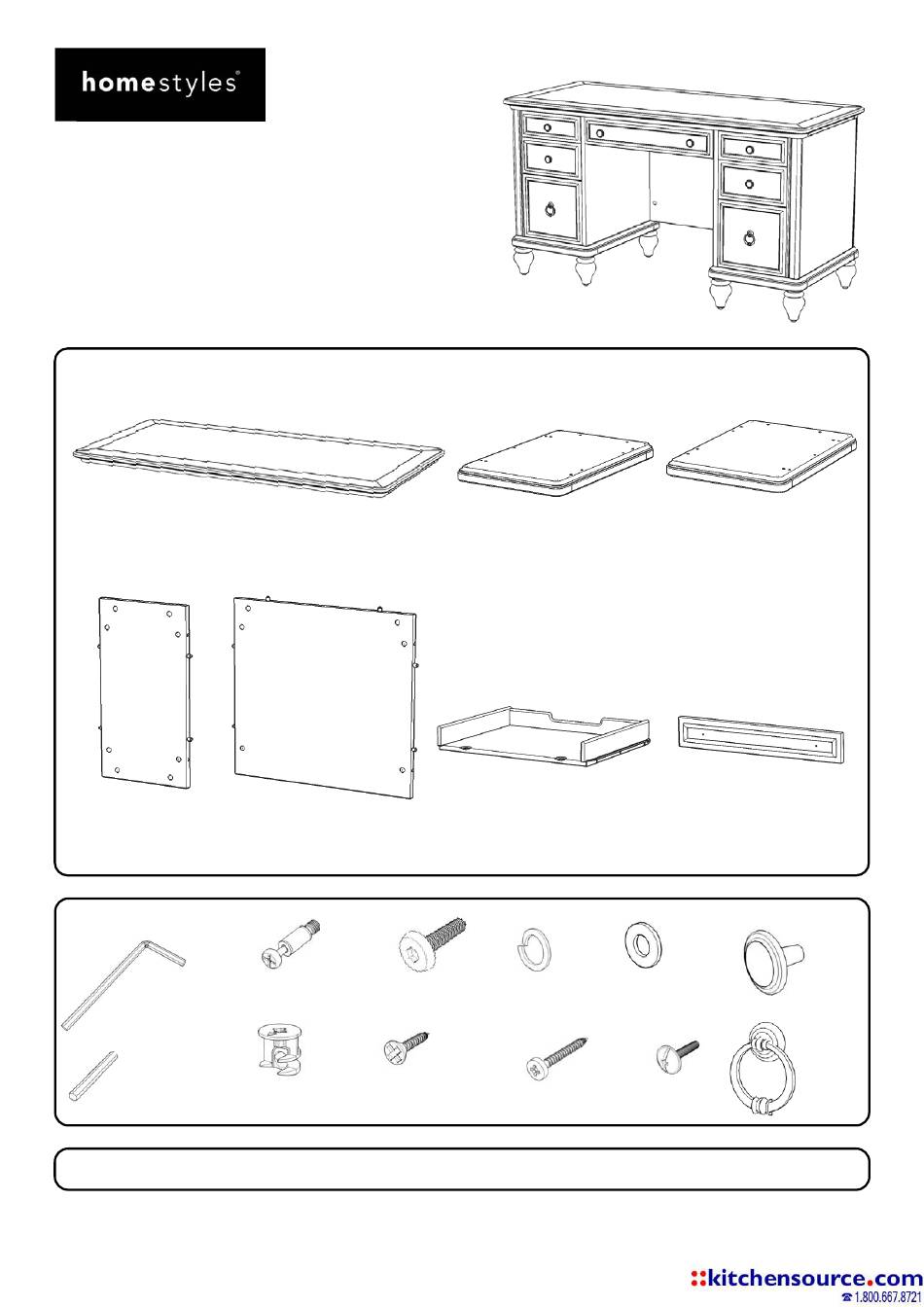

Part List
A.
Top
1 pc.
I.
Back Panel
2 pcs.
Hardware List
Hex Wrench
1 pc.
Small Hex Wrench
1 pc.
Carton 20 05503 0182 is also needed for assembly.
Tool(s) required for assembly: Phillips screwdriver, Level
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 05503 0181
Pedestal Desk
J.
Back Panel
1 pc.
M6x32
Cam Lock Screw
Head Cap Bolt
30 pcs. (+1 extra)
8 pcs. (+1 extra)
M3x12
Cam Lock
Flat Head Screw
30 pcs. (+6 extra)
6 pcs. (+1 extra)
B.
Base
1 pc.
K.
Keyboard
1 pc.
Spring Washer
Flat Washer
8 pcs. (+1 extra)
8 pcs. (+1 extra)
M3x25
M4x25
Wood Screw (long)
Machine Screw
56 pcs. (+1 extra)
8 pcs.
888-680-7460, 877-831-0319
C.
Base
1 pc.
L.
Keyboard Front
1 pc.
Knob
6 pcs.
Handle
2 pcs.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 20 05503 0181 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Homestyles 20 05503 0181

Summary of Contents for Homestyles 20 05503 0181

  • Page 1 30 pcs. (+6 extra) 6 pcs. (+1 extra) 56 pcs. (+1 extra) 8 pcs. 2 pcs. Carton 20 05503 0182 is also needed for assembly. Tool(s) required for assembly: Phillips screwdriver, Level Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
  • Page 2 Assembly Instructions 2/9 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ The unit must be level to work properly. Use the included adjustable levelers to level. Cam Lock Screw STEP 1 Place Top (A), Bases (B), (C), Side Panels (E), (F)
  • Page 3 Assembly Instructions 3/9 STEP 3 Attach Side Panel (E) Cam Lock and Middle Panel (G) to Back Panel (I) with Cam Locks. (See Figure 2) Figure 2 Figure 3 Head Cap Bolt Spring Washer Flat Washer STEP 4 Turn Base (B) unit from Step 2 over to its’...
  • Page 4 Assembly Instructions 4/9 STEP 5 Cam Lock Attach Side Panel (F) and Middle Panel (H) to Back Panel (I) with Cam Locks. Head Cap Bolt Spring Washer Flat Washer STEP 6 Turn Base (C) unit from Step 2 over to its’ upright position. Cam Lock Attach unit to Base (C) with Head Cap Bolts, Spring Washers,...
  • Page 5 Assembly Instructions 5/9 Cam Lock Flat Washer Spring Washer Head Cap Bolt STEP 8 Attach Top (A) to unit with Head Cap Bolts, Spring Washers, Flat Washers and Cam Locks. Level unit by adjusting the adjustable levelers on bottom of unit. (See Figure 4) Note: Unit must be level to proceed.
  • Page 6 Assembly Instructions 6/9 Drawer (M) Wood Screw (long) STEP 10 Attach Drawer Sides (M3) and (M4) to Drawer Front (M1) with Wood Screws (long). Roller at back STEP 14 Slide Drawer Bottom (M5) into groove. Attach Drawer Back (M2) to unit with Wood Screws (long).
  • Page 7 Assembly Instructions 7/9 Drawer (N) Wood Screw (long) STEP 13 Attach Drawer Sides (N3) and (N4) to Drawer Front (N1) with Wood Screws (long). Roller at back STEP 14 Slide Drawer Bottom (M5) into groove. Attach Drawer Back (N2) to unit with Wood Screws (long).
  • Page 8 Assembly Instructions 8/9 Drawer (O) Wood Screw (long) STEP 16 Attach Drawer Sides (O3) and (O4) to Drawer Front (O1) with Wood Screws (long). STEP 17 Slide Drawer Bottom (M5) into groove. Wood Screw (long) Attach Drawer Back (O2) to unit with Wood Screws (long).
  • Page 9 Assembly Instructions 9/9 STEP 20 Slide Drawers (M), (N), (O) and keyboard into position. Note: To remove Drawers (O) in future, push plastic lever on left side up, push plastic lever on right side down and pull open. (See Figures 6 and 7) Left Side Right Side Figure 6...
  • Page 10 Home Styles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged hardware or parts may be requested at: www.homestyles-furniture.com/customer-service/replacement-parts Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
