IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

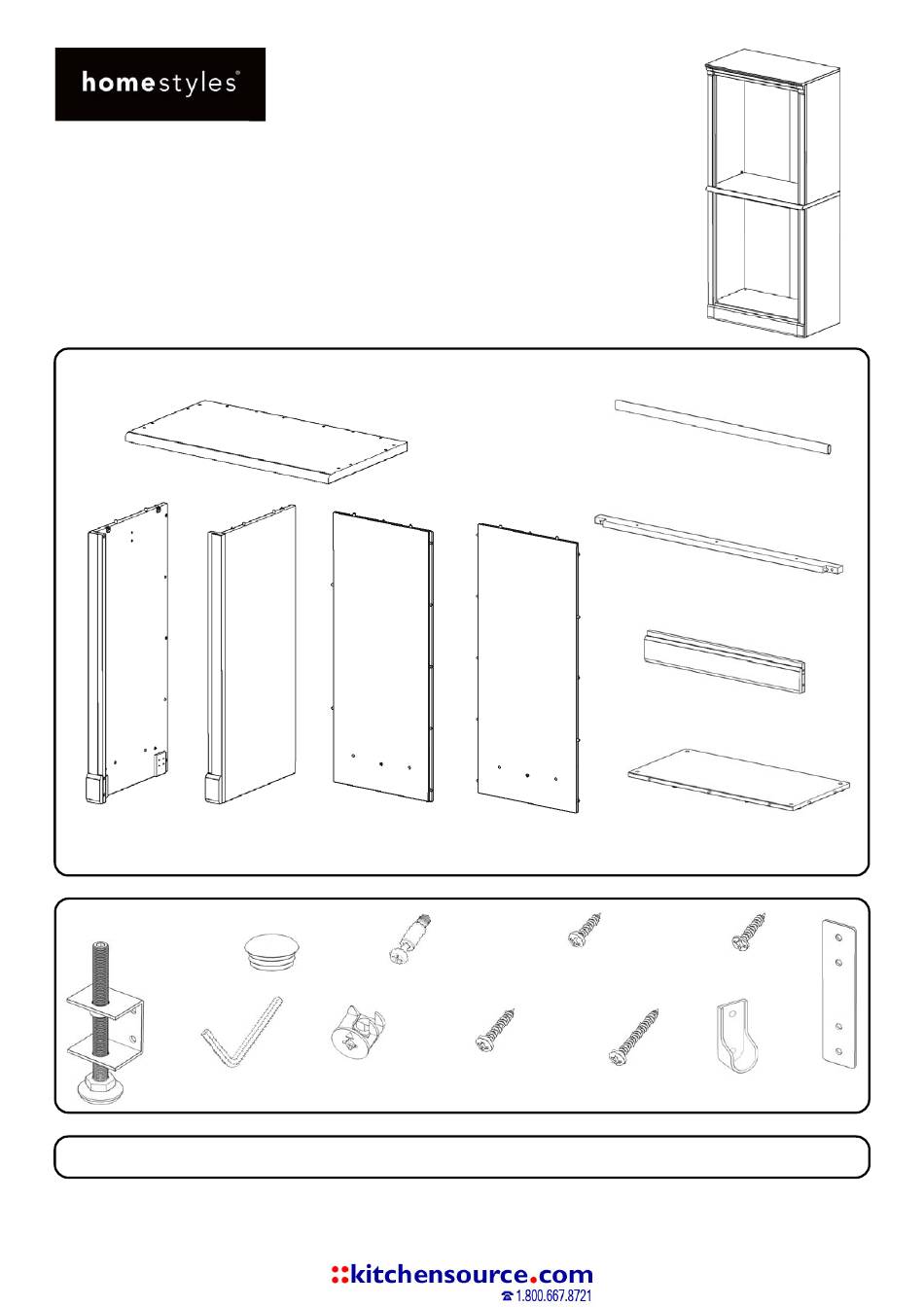

Part List
G.
Top
1 pc.
H.
Side Panel
1 pc.
Hardware List
Plug
4 pcs. (+1 extra)
Leveler
Hex Wrench
4 pcs.
1 pc.
Carton 20 05520 0771 is also needed for assembly.
Tool(s) required for assembly: Phillips screwdriver, Level, Drill (8 volts or less), 3/8" Drill Bit
9
20 05520 0772
Closet Wall Hanging Unit
I.
J.
Side Panel
Back Panel
1 pc.
1 pc.
Cam Lock Screw
6 pcs. (+1 extra)
Cam Lock
6 pcs. (+2 extra)
K.
Back Panel
1 pc.
M3x15
Wood Screw for
Bracket
8 pcs. (+1 extra)
M3x19
Wood Screw for
M3x25
Leveler
Wood Screw (long)
16 pcs. (+1 extra)
5 pcs. (+1 extra)
L.
Rod
2 pcs.
M.
Front Rail
1 pc.
N.
Plinth
1 pc.
O.
Bottom
1 pc.
M3 x1
.5
6
Wood Screw for
Rod Support
8 pcs. (+1 extra)
Rod Support
Bracket
4 pcs.
2 pcs.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Homestyles 20 05520 0772
Summary of Contents for Homestyles 20 05520 0772
- Page 1 20 05520 0772 Closet Wall Hanging Unit IMPORTANT Carefully remove all the parts from the carton and place them individually on a soft cloth to prevent scratches or other damage. Carefully and strictly follow these assembly instructions to ensure a completed product as designed.
- Page 2 Assembly Instructions 2/8 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ The unit must be level to work properly.
- Page 3 Assembly Instructions 3/8 Lock STEP 2 Attach Plinth (N) to Bottom (O), then flip Locks. (See Figures 3 and 4) Figure 3 Figure 4 Wood Screw (long) Cam Lock STEP 3 Attach unit to Side Panel (I) with Cam Locks, then flip Locks. (See Figure 5) Attach Back Panels (K) and (J) to unit, then flip Locks.
- Page 4 Assembly Instructions 4/8 STEP 4 Attach Levelers to bottom of unit with Wood Screws for Levelers into pre-drilled holes (See Figure 6) Figure 6 Wood Screw for Leveler Leveler Lock Wood Screw (long) STEP 5 Attach Top (G) to unit with Wood Screws (long), then flip Locks.
- Page 5 Assembly Instructions 5/8 Cam Lock STEP 6 Attach Back Panel (E) to Side Panel (C), then flip Locks. Attach Back Panel (F) to Side Panel (D), then flip Locks. Attach Front Rail (B) to unit with Cam Lock. Attach unit to unit with Cam Lock.
- Page 6 Assembly Instructions 6/8 STEP 8 Place top unit onto base unit, then flip Locks. Lock Plug STEP 9 Place unit at desired location. Figure 7 Note: If assembling multiple Closet Wall Units together, place all units at desired location. Level unit(s) by adjusting the adjustable levelers on bottom of unit(s).
-
Page 7: Hardware List
Assembly Instructions 7/8 IMPORTANT To help reduce the risk of the unit tipping over, the Tip-over Restraint must be installed following these instructions exactly. STEP 10 Place unit at desired location. Anchor in wall Bracket Wall Screw Pre-drilled hole Drill a 3/8” hole in wall in-line with at top of unit on wall 3/8”... - Page 8 Assembly Instructions 8/8 Wood Screw for Bracket Bracket Figure 11 STEP 11 Note: If assembling multiple Closet Wall Units together, complete Step 11. Attach tops of units together with Brackets and Wood Screws for Brackets into pre-drilled holes. (See Figure 11) Return to and complete Step 10.
- Page 9 CARE INSTRUCTIONS NEVER NEVER use glass cleaners on allow liquids to remain on furniture. finished furniture. Ammonia Absorption causes parts to warp chemically attacks the finish. and split and finishes to delaminate. Do not use power tools Do not place Do not write above 8 volts to assemble.
