IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

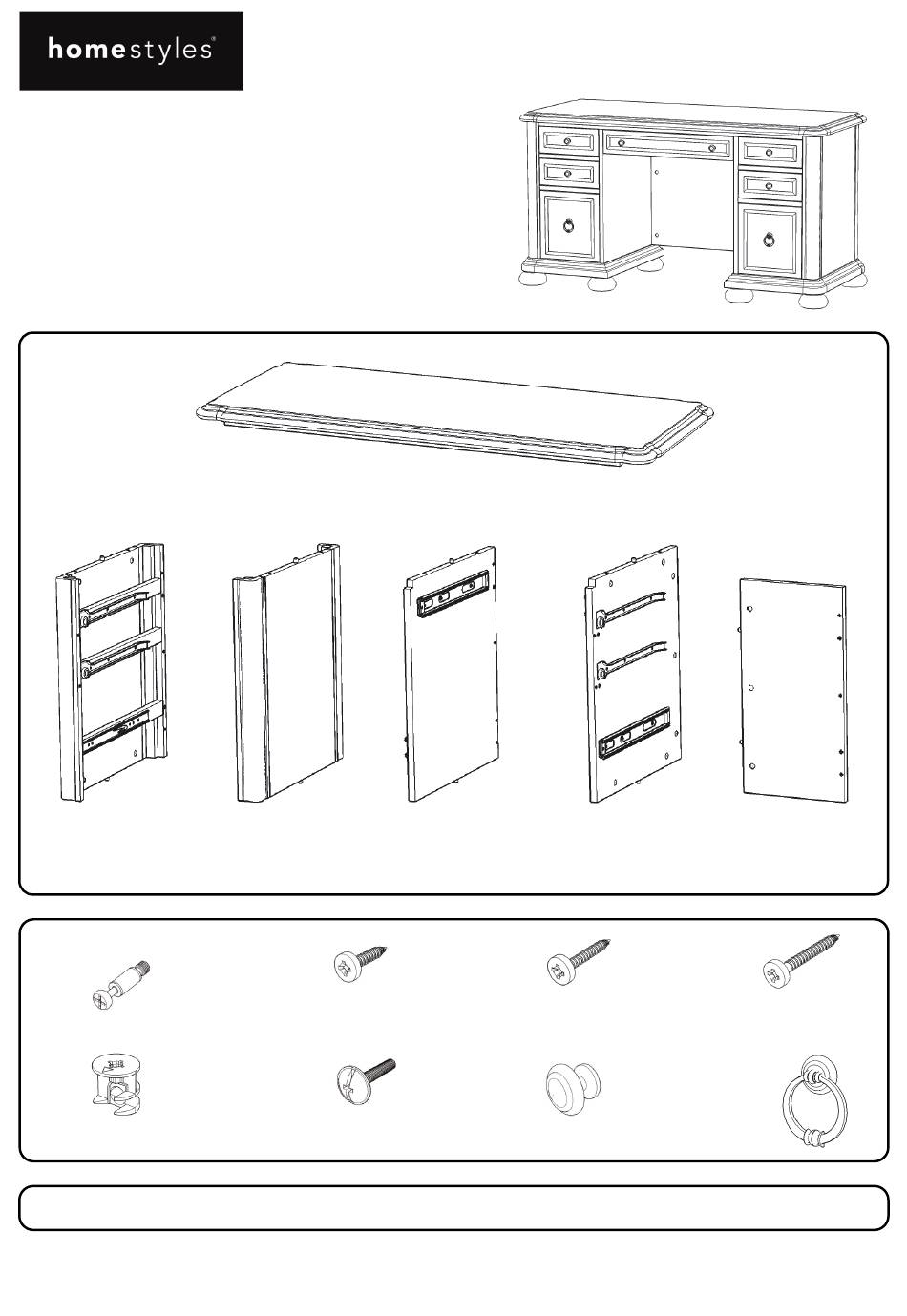

Part List
D.
Side Panel
1 pc.
Hardware List
Cam Lock Screw
45 pcs. (+1 extra)
Cam Lock
45 pcs. (+6 extra)
Carton 20 05502 0182 is also needed for assembly.
Tool(s) required for assembly: Phillips screwdriver, Level
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 05502 0181

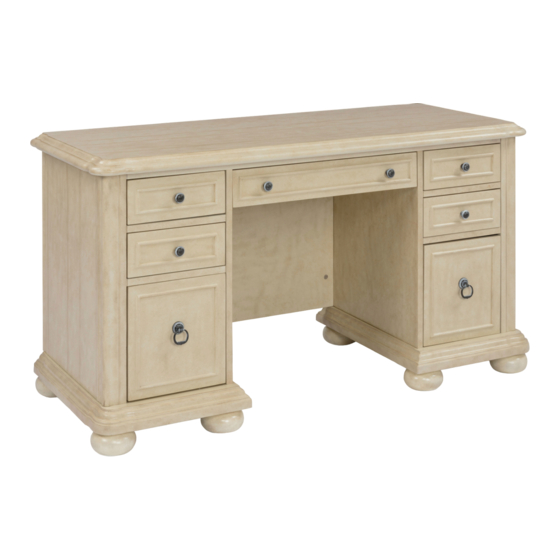

Pedestal Desk
A.
Top
1 pc.
E.
F.
Side Panel
Middle Panel
1 pc.
1 pc.
M3x12
Wood Screw
6 pcs. (+1 extra)
M4x32
Machine Screw
8 pcs.
G.
Middle Panel
1 pc.
M3x16
Wood Screw (short)
24 pcs. (+1 extra)
Knob
6 pcs.
888-680-7460, 877-831-0319
J.
Back Panel
2 pcs.
M3x25
Wood Screw (long)
56 pcs. (+1 extra)
Handle
2 pcs.
