IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

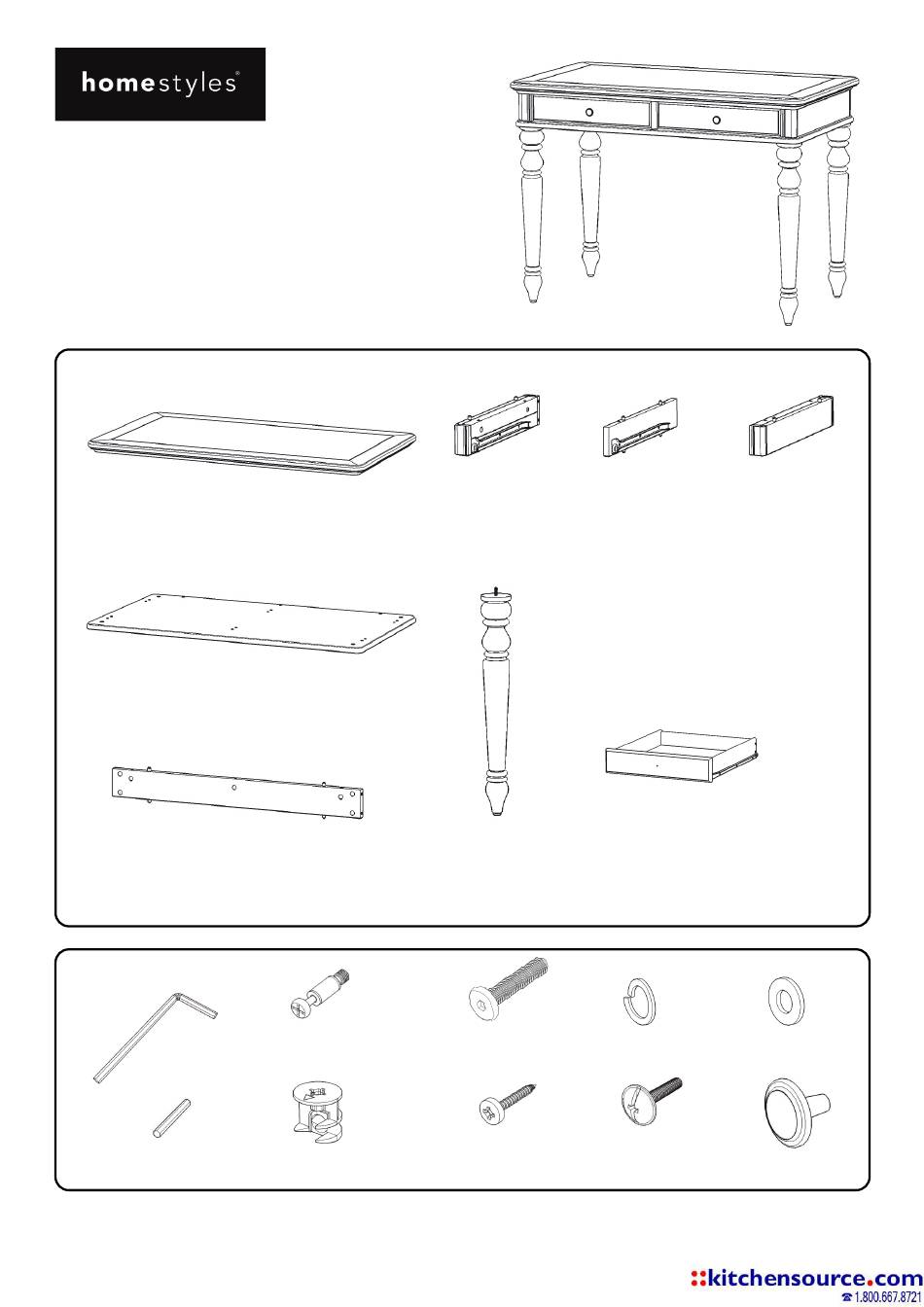

Part List
A.
Top
1 pc.
B.
Base
1 pc.
C.
Back Panel
1 pc.
Hardware List
Hex Wrench
1 pc.
Small Hex Wrench
1 pc.
Tool(s) required for assembly: Phillips screwdriver, Level
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 05503 0016

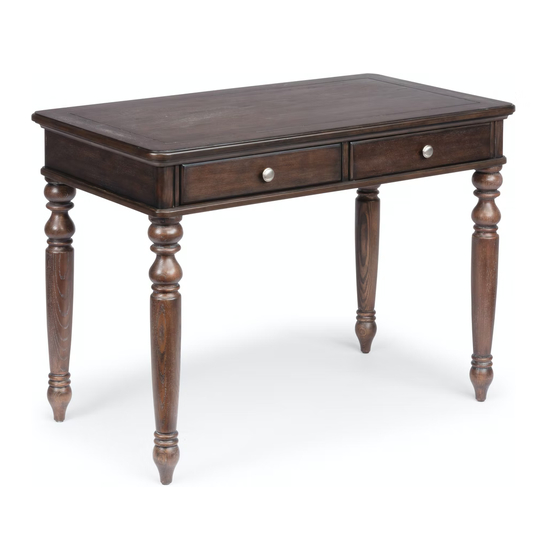

Student Desk
M6x32
Cam Lock Screw
Head Cap Bolt
13 pcs. (+1 extra)
9 pcs. (+1 extra)
M3.5x25
Cam Lock
Wood Screw
13 pcs. (+2 extra)
16 pcs. (+1 extra)
D.
E.
Side Panel
Middle Panel
1 pc.
1 pc.
H.
Drawer
2 pcs.
G.
Leg
Refer to later page(s) of these
4 pcs.
instructions for drawer assembly.
Spring Washer
9 pcs. (+1 extra)
M4x25
Machine Screw
2 pcs.
888-680-7460, 877-831-0319
F.
Side Panel
1 pc.
Flat Washer
9 pcs. (+1 extra)
Knob
2 pcs.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Homestyles 20 05503 0016
Summary of Contents for Homestyles 20 05503 0016
- Page 1 M4x25 Small Hex Wrench Cam Lock Machine Screw Knob Wood Screw 2 pcs. 2 pcs. 1 pc. 13 pcs. (+2 extra) 16 pcs. (+1 extra) Tool(s) required for assembly: Phillips screwdriver, Level Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/5 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ The unit must be level to work properly.
- Page 3 Assembly Instructions 3/5 STEP 3 Cam Lock Place Top (A) upside down on a soft cloth. Attach unit and Middle Panel (E) to Top (A) with Cam Locks. Head Cap Bolt Spring Washer Flat Washer STEP 4 Attach Base (B) to unit with Flat Washers, Spring Washers and Head Cap Bolts.
- Page 4 Assembly Instructions 4/5 Drawer (H) Wood Screw STEP 6 Attach Drawer Sides (H3) and (H4) to Drawer Front (H1) with Wood Screws. Roller at back STEP 7 Slide Drawer Bottom (H5) into groove. Attach Drawer Back (H2) to unit with Wood Screws. Machine Screw Knob Wood Screw...
- Page 5 Assembly Instructions 5/5 STEP 9 Turn unit from Step 5 over to its’ upright position. Level unit by adjusting the adjustable levelers on bottom of legs. (See Figure 4) Note: Unit must be level to work properly. Slide Drawers (H) into position. Figure 4...
- Page 6 Home Styles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged hardware or parts may be requested at: www.homestyles-furniture.com/customer-service/replacement-parts Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
