IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
Hardware List
Hex Wrench
1 pc.
Small Hex Wrench
1 pc.
Carton 20 05503 0072 is also needed for assembly.
Tool(s) required for assembly: Phillips screwdriver, Level
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 05503 0071

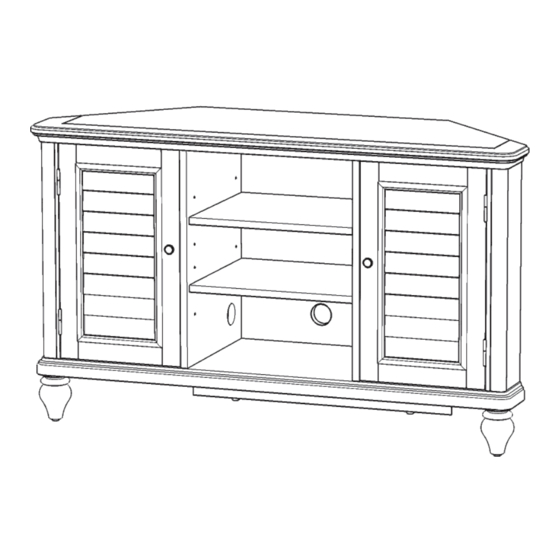

Corner Entertainment
M5x32
Wood Screw
Cam Lock Screw
for Back Panel
19 pcs. (+1 extra)
6 pcs. (+1 extra)
Cam Lock
Magnet
19 pcs. (+4 extra)
2 pcs.
A.
Top
1 pc.
B.
Base
1 pc.
M6x32
Head Cap Bolt
7 pcs. (+1 extra)
M3x15
Adjustable Pin
Wood Screw
4 pcs. (+1 extra)
24 pcs. (+1 extra)
888-680-7460, 877-831-0319
Spring Washer
Flat Washer
7 pcs. (+1 extra)
7 pcs. (+1 extra)
M4x25
Machine Screw
Knob
2 pcs.
2 pcs.
Advertisement
Related Manuals for Homestyles Corner Entertainment 20 05503 0071
Summary of Contents for Homestyles Corner Entertainment 20 05503 0071
- Page 1 19 pcs. (+4 extra) 2 pcs. 4 pcs. (+1 extra) 24 pcs. (+1 extra) 2 pcs. 2 pcs. Carton 20 05503 0072 is also needed for assembly. Tool(s) required for assembly: Phillips screwdriver, Level Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/7 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ The unit must be level to work properly.
- Page 3 Assembly Instructions 3/7 Flat Washer Spring Washer Figure 3 Head Cap Bolt STEP 3 Attach Back Panel (M) to Base (B) with Flat Washers, Spring Washers and Head Cap Bolts. (See Figure 3) Wood Screw for Back Panel Cam Lock Figure 4 Figure 5 STEP 4...
- Page 4 Assembly Instructions 4/7 STEP 5 Head Cap Bolt Spring Washer Flat Washer Attach Side Panels (F) and (G) to unit with Flat Washers, Spring Washers and Head Cap Bolts. STEP 6 Attach Back Panels (J) and (K) to unit with Cam Locks. Cam Lock Wood Screw for Back Panel STEP 7...
- Page 5 Assembly Instructions 5/7 Machine Screw Knob STEP 8 Attach Doors (N) and (O) to unit by sliding door hinges into side panel hinges. (See Figure 6) Attach Knobs to Doors (N) and (O) with Machine Screws. (See Figure 7) Figure 7 Figure 6 Adjustable Pin STEP 9...
- Page 6 Assembly Instructions 6/7 Cam Lock Flat Washer Spring Washer Head Cap Bolt STEP 10 Attach Top (A) to unit with Flat Washers, Spring Washers, Head Cap Bolts and Cam Locks. Level unit by adjusting the adjustable levelers on bottom of unit. (See Figure 9) Figure 9 Note: Unit must be level to work properly.
-
Page 7: Hardware List
Assembly Instructions 7/7 IMPORTANT To help reduce the risk of the unit tipping over, the Tipover Restraints must be installed following these instructions exactly. STEP 11 Anchor in wall Wall Screw Pre-drilled hole Bracket on wall at top of unit Place unit at desired location. - Page 8 Home Styles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged hardware or parts may be requested at: www.homestyles-furniture.com/customer-service/replacement-parts Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
