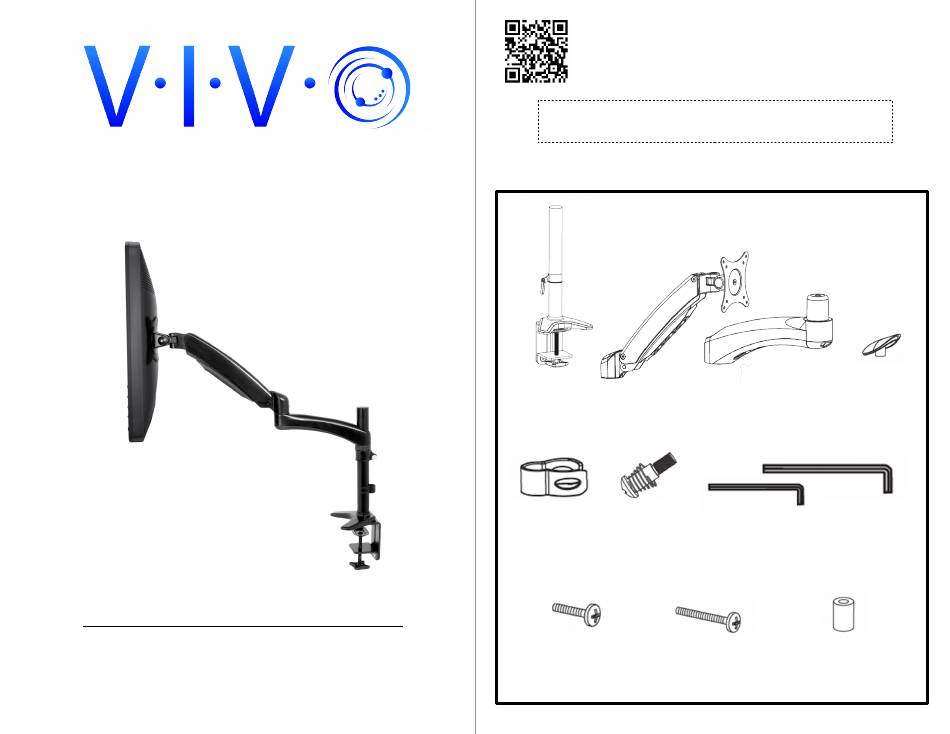

Instruction Manual
Model: STAND- STAND V001JB
Email: help@vivo-us.com
Live chat: www.vivo-us.com
Call: 1-800-371-5654
-
Scan the QR code with your mobile device or follow the link
to helpful videos and specifications related to this product.
https: STAND- / /vivo us.com/pr Desk M o ducts/stand v001jb
-
Tools Requir Desk M e d: STAND-
phillips screwdriver
Pack Mount a ge Contents
A (x1)
B (x1)
Clamp and Pole
Spring Arm
E (x1)
F (x1)
Cable Clip
M6x25 Spring Bolt
I (x4)
M4x30 Bolt
M4x12 Bolt
-
C (x1)
D (x1)
Extension Arm
Plastic Cap
G (x1)
H (x1)
3mm Allen Key
5mm Allen Key
J (x4)
K (x4)
Plastic Spacer
