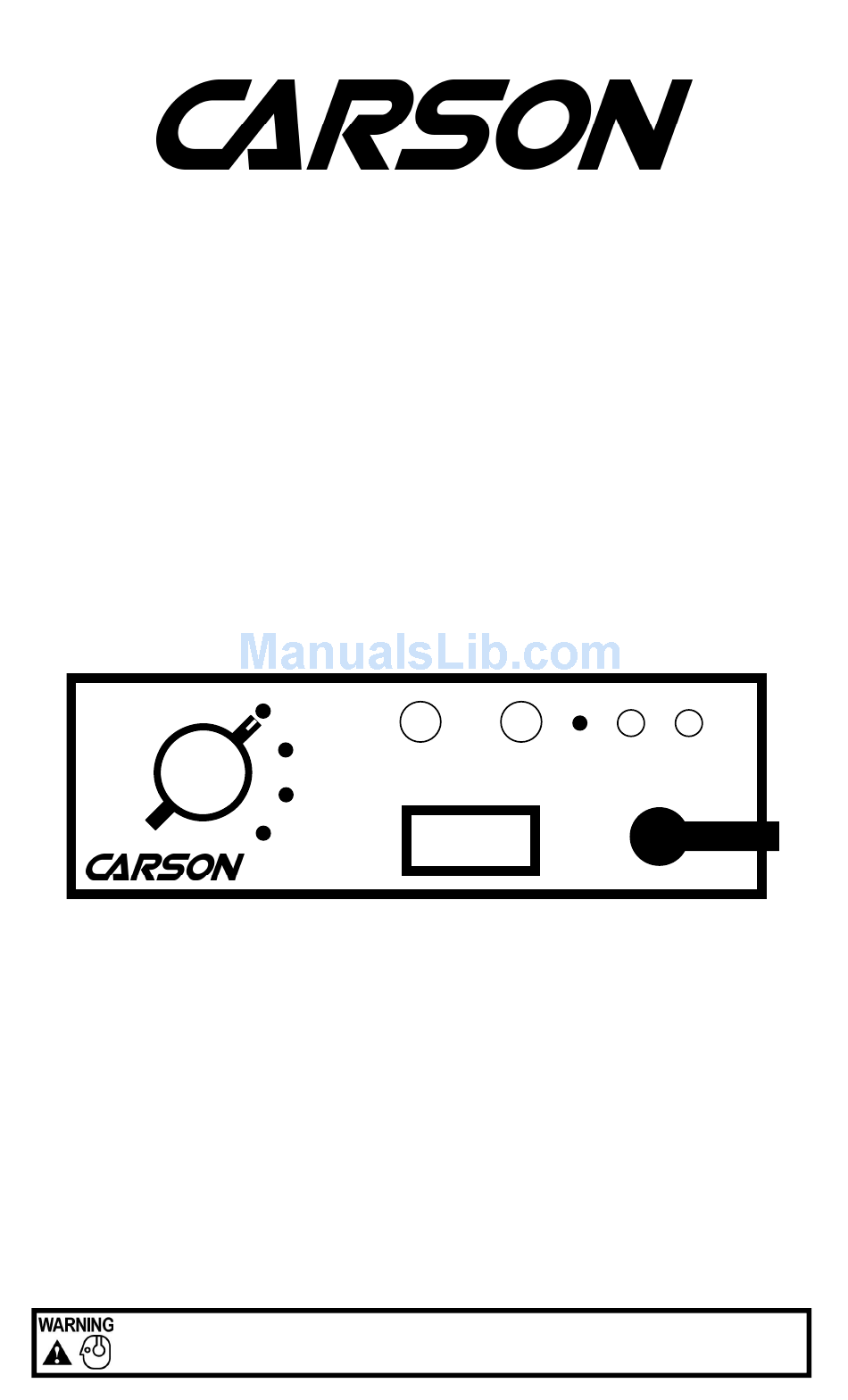

SIREN AMPLIFIER
WITH MECHANICAL TONE
INSTALLATION AND OPERATING
Carson is a trademark of Carson Manufacturing Company, Inc.
Sound Hazard - Sound level from siren speaker (>120dBA @ 10 feet) may cause hearing damage.
Do not operate siren without adequate hearing protection for you and anyone in immediate vicinity.
(Ref. OSHA 1910.95 for occupational noise exposure guidelines)
Carson Manufacturing Co., Inc.
5451 North Rural Street
Indianapolis, IN 46220
Phone: (888) 577-6877
www.carsonsirens.com
SA-500-27
Y→P→W
MECH
MANUAL
STBY
O
RADIO
F
F
INSTRUCTIONS
Fax: (317) 254-2667
OUTPUT
HORN
O
N
VOLUME
RAD
PA
SA-500
Advertisement
Table of Contents
Related Manuals for Carson SA-500-27
Summary of Contents for Carson SA-500-27
- Page 1 INSTALLATION AND OPERATING INSTRUCTIONS Carson is a trademark of Carson Manufacturing Company, Inc. Sound Hazard - Sound level from siren speaker (>120dBA @ 10 feet) may cause hearing damage. Do not operate siren without adequate hearing protection for you and anyone in immediate vicinity.
-
Page 2: Table Of Contents
Carson Manufacturing Co., Inc. makes no warranty of any kind with regard to this manual, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. -
Page 3: General Description

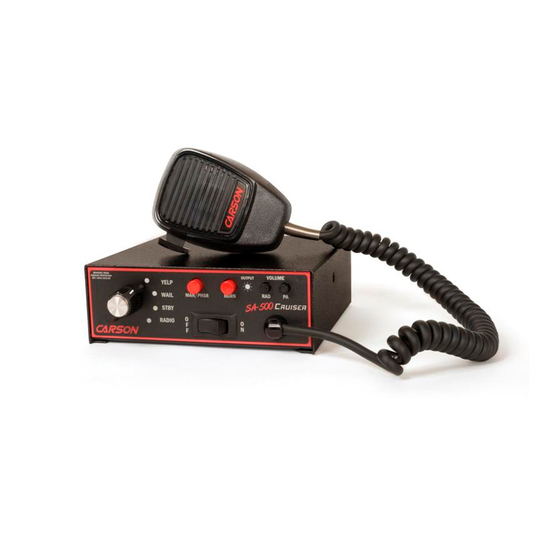

SA-500-27 14 Installation and Operating Instructions The SA-500 Siren Amplifier with Mechanical Tone is a premium unit designed for single or dual 100W speaker use. A 4-position rotary selector switch controls the primary operating modes of Yelp -> Phaser -> Wail, Mechanical, Standby and Radio. Two-Tone may optionally replace Phaser. -
Page 4: Installation
Contact supplier immediately if any components are missing. Contents of box should include the following items: Qty Item Amplifier Unit with attached Microphone (SA-500-27 14) Bracket, ‘U’ Dash Mount (CP3571) Hardware Kit (ED1558) (Kit contains 2 Bolts, 1 10-P Term Block Plug, and 1 Mic Clip) -
Page 5: Option Switches
SA-500-27 14 Installation and Operating Instructions OPTION SWITCHES An internal 8-position DIP switch on the cir- cuit board may be changed to select various options. The cover for the unit must be re- moved to access the DIP switch. Accessing Option Switches - The cover is held in place by a snap-fastener on the back of the unit. -
Page 6: Mounting
Page 6 of 12 SA-500-27 14 Installation and Operating Instructions MOUNTING The mounting bracket supplied can be installed above or below the unit. Choose a mounting location convenient to the operator and away from any air bag deployment areas. Inspect behind mounting area for clearance. - Page 7 SA-500-27 14 Installation and Operating Instructions ELECTRICAL CONNECTIONS CONTINUED Auxiliary Input Momentary Connection Examples Activated with +VDC OR -VDC Factory Default DIP SW-2 ON for +VDC DIP SW-2 OFF for -VDC Cutout Input Momentary Connection Examples Activated with +VDC OR -VDC...
-
Page 8: Operation
This momentary push-button switch provides a simulated air-horn tone while pressed. This can be used to supplement the normal vehicle horn and is useful at intersections or in low noise areas. This tone overrides other siren tones. 09/09/08 SA-500-27 14 Installation and Operating Instructions OPERATION Manual Horn... -
Page 9: Microphone (Pa Override)
SA-500-27 14 Installation and Operating Instructions Page 9 of 12 MICROPHONE (PA Override) The attached noise-canceling microphone is used for public address operation and overrides any siren tone when push-to-talk button on the side of the microphone is pressed. PA VOLUME CONTROL... -
Page 10: Service
See www.carsonsirens.com for additional information. or contact our Service Department at: E-mail service@carsonsirens.com or Phone (888) 577-6877 09/09/08 SA-500-27 14 Installation and Operating Instructions SERVICE Does backlighting come on? Do you hear a "pop" when turned on? Is the OUTPUT light on front panel coming on in Yelp? -
Page 11: Parts And Accessories
SA-500-27 14 Installation and Operating Instructions PARTS and ACCESSORIES The following parts and accessories are available from Carson Manufacturing Company, Inc.: Part Description CP5017 Button, Switch Cap Chrome (for push-button switch) CP4684 Control, 1K Vertical w/ Knurled Shaft (PA and Radio Volume) -
Page 12: Return
During this warranty period the obligation of Carson Manufacturing is limited to repairing or replacing, as Carson Manufacturing may elect, any part or parts of such product which after examination by Carson Manufacturing is determined to be defective in mate- rial and/or workmanship.
