SA-430-83F (FLUSH MOUNT CONTROL HEAD)
SA-430-83FX (FLUSH MOUNT WITH EXTENDED MIC)
Sound Hazard - Sound level from siren speaker (>120dBA @ 10 feet) may cause hearing damage.
Do not operate siren without adequate hearing protection for you and anyone in immediate vicinity.
(Ref. OSHA 1910.95 for occupational noise exposure guidelines)
TB0334B
CARSON MANUFACTURING CO., INC.
5451 NORTH RURAL STREET
INDIANAPOLIS, IN 46220
(888) 577 6877
TECHNICAL BULLETIN
INSTALLATION AND
OPERATING MANUAL
Carson
MANUFACTURING COMPANY, INC.
www.carsonsirens.com
RADIO
RADIO
SIREN
SIREN
HORN
HORN
MAN
MAN
WAIL
WAIL
ON
ON
YELP
YELP
POWER
POWER
PHASER
PHASER
SA 430
SA 430
Page 1 of 9
PA PA
VOL
VOL
10/18/03
Advertisement
Table of Contents
Related Manuals for Carson SA-430-83F
Summary of Contents for Carson SA-430-83F

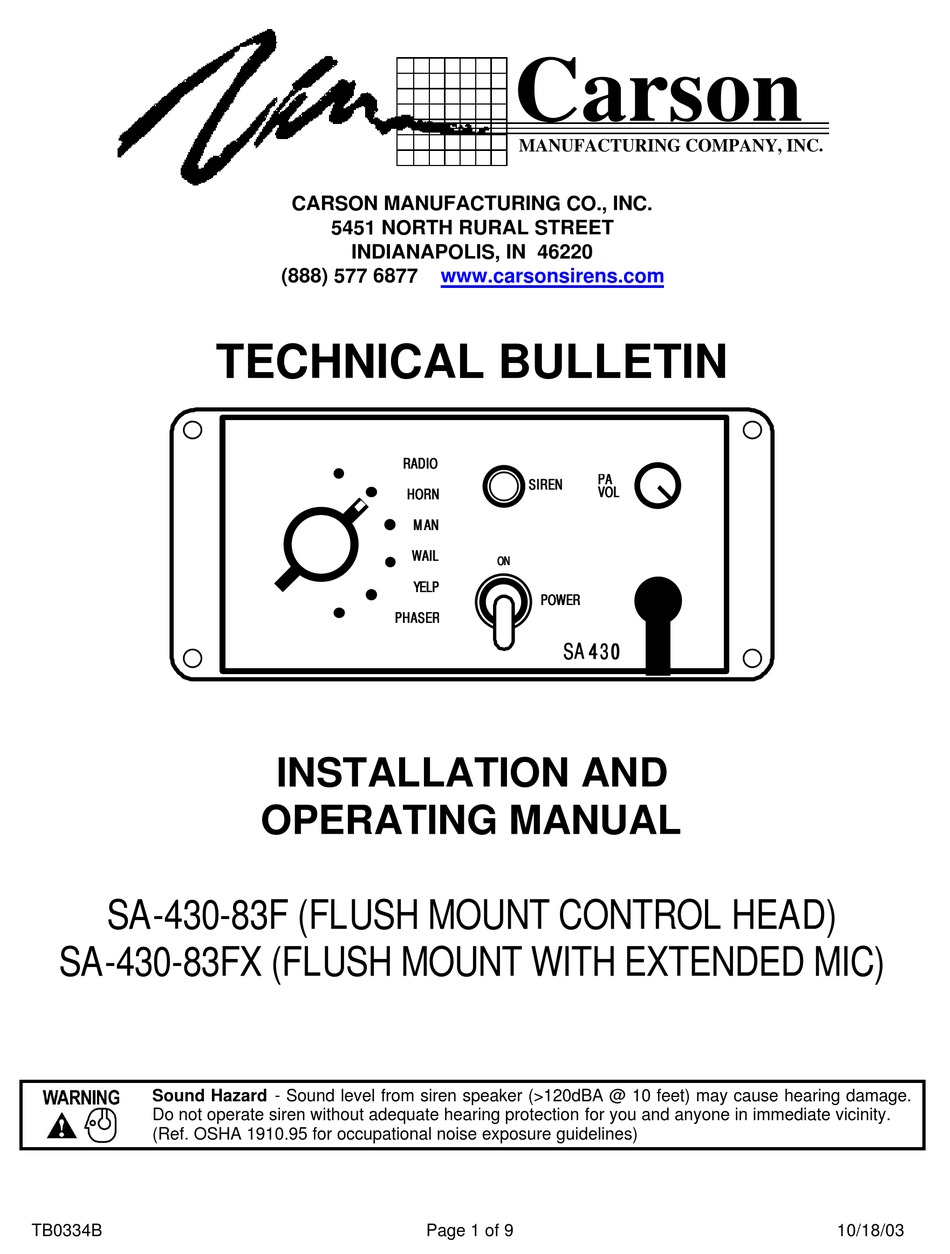

- Page 1 TECHNICAL BULLETIN INSTALLATION AND OPERATING MANUAL SA-430-83F (FLUSH MOUNT CONTROL HEAD) SA-430-83FX (FLUSH MOUNT WITH EXTENDED MIC) Sound Hazard - Sound level from siren speaker (>120dBA @ 10 feet) may cause hearing damage. Do not operate siren without adequate hearing protection for you and anyone in immediate vicinity.
- Page 2 Carson Manufacturing Co., Inc. makes no warranty of any kind with regard to this manual, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.
-
Page 3: Installation
Proper installation of the unit is essential for years of safe, reliable operation. Please read all instruction before installing the unit. Failure to follow these instructions can cause serious damage to the unit or vehicle and may void warranties. SAFETY PRECAUTIONS For the safety of the installer, vehicle operator, passengers and the community please observe the following safety precautions. - Page 4 CONTROL HEAD ELECTRICAL CONNECTIONS All control head leads may be extended with #22 AWG or larger lead wire. Negative Connection (Black) - Connect to same ground or negative supply as amplifier. Positive Connection (Red) - Connect to positive DC supply. It is recommended that the lead be connected to the accessory output of the fuse block.
- Page 5 AMPLIFIER ELECTRICAL CONNECTIONS Disconnect vehicle battery before making the following electrical connections. Electrical connections to the amplifier are made using the wiring harness supplied. If the amplifier needs service the connector can be easily removed without unwiring the harness. The power supply for the amplifier must be capable of delivering peak currents up to 50 amps for adequate short circuit protection and reliable operation.
-
Page 6: Operation
Sound Hazard - Sound level from siren speaker (>120dBA @ 10 feet) may cause hearing damage. Do not operate siren without adequate hearing protection for you and anyone in immediate vicinity. (Ref. OSHA 1910.95 for occupational noise exposure guidelines) The Toggle Power Switch controls the siren power. The siren may be left on any time the vehicle is in operation. The power should be turned off when vehicle is not being used to conserve battery power. - Page 7 Ground system noise If you have any questions concerning this or any other Carson product, please contact our Technical Service Department at (888) 577-6877. Many issues can be handled over the phone. We can also be reached via e-mail at service@carsonsirens.com...
- Page 8 Knob, PA volume control CP3149 Label, control head front panel JKL#7001PSBL Lamp, T-1-3/4 14V Bi-pin (JKL #7001) CP3570 Microphone (for SA-430-83F version) ES00028-10 Microphone with locking connector (for SA-430-83FX version) CP3633 Microphone clip with mounting screws CP3035-1 Panel, control head front...
-
Page 9: Control Head Installation Template
CONTROL HEAD INSTALLATION TEMPLATE TB0334B Page 9 of 9 10/18/03...
