SIREN AMPLIFIER
INSTALLATION AND OPERATING
Carson is a trademark of Carson Manufacturing Company, Inc.
Sound Hazard - Sound level from siren speaker (>120dBA @ 10 feet) may cause hearing damage.
Do not operate siren without adequate hearing protection for you and anyone in immediate vicinity.
(Ref. OSHA 1910.95 for occupational noise exposure guidelines)
Carson Manufacturing Co., Inc.
5451 North Rural Street
Indianapolis, IN 46220
Phone: (888) 577-6877
www.carsonsirens.com
SA-500-20
28 VOLT
YELP
WAIL
MAN/PHSR
STBY
O
RADIO
F
F
INSTRUCTIONS
Fax: (317) 254-2667
OUTPUT
HORN
O
N
VOLUME
RAD
PA
SA-500
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Carson SA-500-20
Summary of Contents for Carson SA-500-20
- Page 1 INSTALLATION AND OPERATING INSTRUCTIONS Carson is a trademark of Carson Manufacturing Company, Inc. Sound Hazard - Sound level from siren speaker (>120dBA @ 10 feet) may cause hearing damage. Do not operate siren without adequate hearing protection for you and anyone in immediate vicinity.
-
Page 2: Table Of Contents
Carson Manufacturing Co., Inc. makes no warranty of any kind with regard to this manual, including, but not lim- ited to, the implied warranties of merchantability and fitness for a particular purpose. -
Page 3: General Description

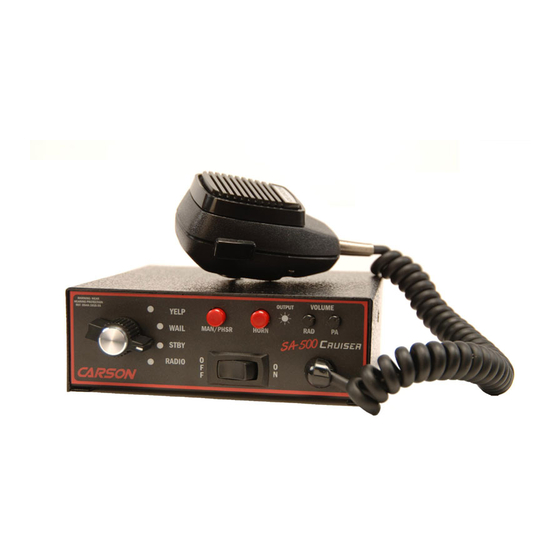

SA-500-20 28 Volt Installation and Operating Instructions The SA500 Siren Amplifier is a premium unit designed for single or dual 100W speaker use. The primary operating modes are Yelp, Wail, Standby and Radio. A Noise Canceling PA Override and push-button Horn Override are available in all modes except Radio. Another push-button is pro- vided for push-on/push-off Phaser operation in the Yelp and Wail modes, and Manual siren con- trol in the Standby mode. -
Page 4: Unpacking
Page 4 of 8 SA-500-20 28 Volt Installation and Operating Instructions Wiring - Use wiring capable of handling the current required. Make sure all connections are tight. Route wiring to prevent wear, overheating and interference with air bag deployment. Install and check all wiring before connection to vehicle battery. -
Page 5: Electrical Connections
SA-500-20 28 Volt Installation and Operating Instructions ELECTRICAL CONNECTIONS Electrical connections to the unit are made using a removable terminal block plug located on the back. A label on the unit identifies the terminal function. should install the plug on the unit before wiring. -
Page 6: Operation
Wail, Yelp, and Phaser tones. Tapping the horn ring twice quckly will stop siren tones. Holding the horn ring produces horn. See OPTION SWITCHES section for further details. 05/07/05 SA-500-20 28 Volt Installation and Operating Instructions OPERATION MAN/PHSR... -
Page 7: Service
Aux Input set to wrong function Yelp Override option installed Phaser not work- Phaser disabled Horn not working Horn disabled PARTS The following parts are available from Carson Manufacturing Company, Inc.: Part Description CP3966 Bolt, mounting, 1/4-20 X 3/8” (2 required) CP3571... -
Page 8: Return
During this warranty period the obligation of Carson Manufacturing is limited to repairing or replacing, as Carson Manufacturing may elect, any part or parts of such product which after examination by Carson Manufacturing is determined to be defective in mate- rial and/or workmanship.
