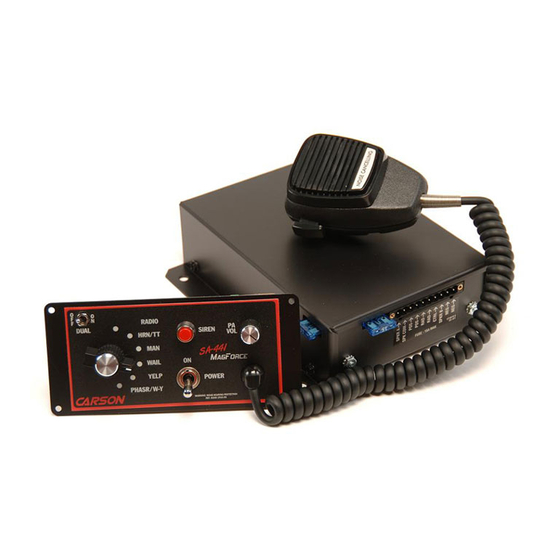

SA-441-83F (FLUSH MOUNT CONTROL HEAD)
SA-441-83FX (FLUSH MOUNT WITH EXTENDED MIC)
Sound Hazard - Sound level from siren speaker (>120dBA @ 10 feet) may cause hearing damage.
Do not operate siren without adequate hearing protection for you and anyone in immediate vicinity.
(Ref. OSHA 1910.95 for occupational noise exposure guidelines)
TB0335B
CARSON MANUFACTURING CO., INC.
5451 NORTH RURAL STREET
INDIANAPOLIS, IN 46220
(888) 577 6877
TECHNICAL BULLETIN
OFF/ON
PHASR/W- - Y Y
PHASR/W
INSTALLATION AND
OPERATING MANUAL
Carson
MANUFACTURING COMPANY, INC.
www.carsonsirens.com
RADIO
RADIO
SIREN
SIREN
HRN/TT
HRN/TT
MAN
MAN
WAIL
WAIL
ON
YELP
YELP
POWER
POWER
SA 441
SA 441
Page 1 of 10
PA
VOL
10/18/03
Advertisement
Table of Contents
Related Manuals for Carson SA-441-83F
Summary of Contents for Carson SA-441-83F

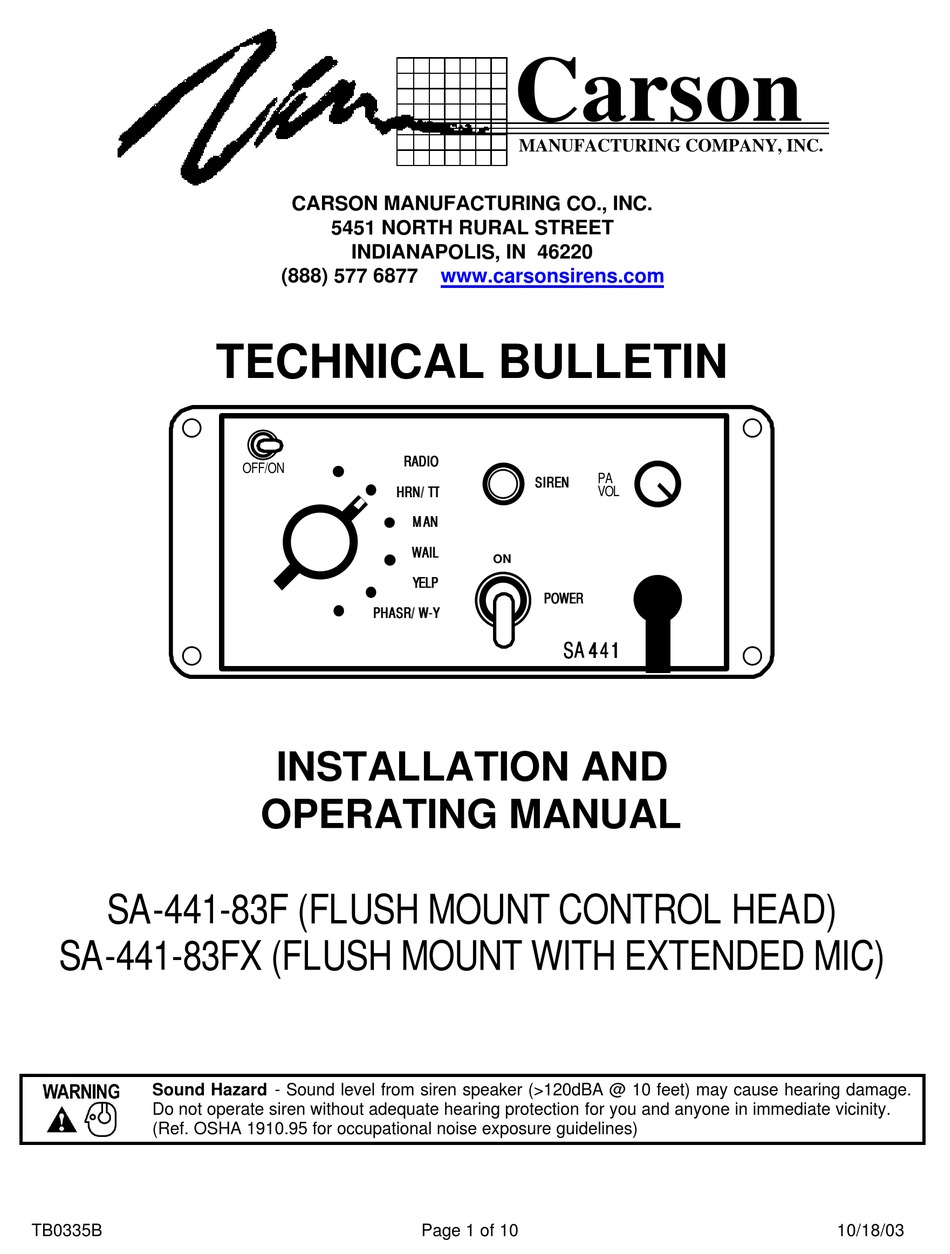

- Page 1 OFF/ON INSTALLATION AND OPERATING MANUAL SA-441-83F (FLUSH MOUNT CONTROL HEAD) SA-441-83FX (FLUSH MOUNT WITH EXTENDED MIC) Sound Hazard - Sound level from siren speaker (>120dBA @ 10 feet) may cause hearing damage. Do not operate siren without adequate hearing protection for you and anyone in immediate vicinity.
-
Page 2: Specifications
Carson Manufacturing Co., Inc. makes no warranty of any kind with regard to this manual, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. -
Page 3: Installation
Proper installation of the unit is essential for years of safe, reliable operation. Please read all instruction before installing the unit. Failure to follow these instructions can cause serious damage to the unit or vehicle and may void warranties. SAFETY PRECAUTIONS For the safety of the installer, vehicle operator, passengers and the community please observe the following safety precautions. - Page 4 CONTROL HEAD ELECTRICAL CONNECTIONS All control head leads may be extended with #22 AWG or larger lead wire. Negative Connection (Black) - Connect to same ground or negative supply as amplifier. Positive Connection (Red) - Connect to positive DC supply. It is recommended that the lead be connected to the accessory output of the fuse block.
-
Page 5: Control Head
AMPLIFIER ELECTRICAL CONNECTIONS Disconnect vehicle battery before making the following electrical connections. Electrical connections to the amplifier are made using the wiring harness supplied. If the amplifier needs service the connector can be easily removed without unwiring the harness. The power supply for the amplifier must be capable of delivering peak currents up to 50 amps for adequate short circuit protection and reliable operation. - Page 6 NORMAL OPERATION (Dual Mode Switch Off) Sound Hazard - Sound level from siren speaker (>120dBA @ 10 feet) may cause hearing damage. Do not operate siren without adequate hearing protection for you and anyone in immediate vicinity. (Ref. OSHA 1910.95 for occupational noise exposure guidelines) DUAL MODE SWITCH OFF/ON...
- Page 7 DUAL MODE OPERATION (Dual Mode Switch On) Sound Hazard - Sound level from siren speaker (>120dBA @ 10 feet) may cause hearing damage. Do not operate siren without adequate hearing protection for you and anyone in immediate vicinity. (Ref. OSHA 1910.95 for occupational noise exposure guidelines) The Toggle Dual Mode Switch gives the amplifier the ability to produce two different siren tones to each speaker simultaneously.
- Page 8 One speaker damaged If you have any questions concerning this or any other Carson product, please contact our Technical Service Department at (888) 577-6877. Many issues can be handled over the phone. We can also be reached via e-mail at service@carsonsirens.com...
- Page 9 Knob, PA volume control CP3881 Label, control head front panel JKL#7001PSBL Lamp, T-1-3/4 14V Bi-pin (JKL #7001) CP3570 Microphone (for SA-441-83F version) ES00028-10 Microphone with locking connector (for SA-441-83FX version) CP3633 Microphone clip with mounting screws CP3035-1 Panel, control head front 8121D2V40 Switch, pushbutton siren (C&K #8121SD2V4GE)
-
Page 10: Control Head Installation Template
CONTROL HEAD INSTALLATION TEMPLATE TB0335B Page 10 of 10 10/18/03...
