Carson Manufacturing Co., Inc.
Phone: (888) 577-6877

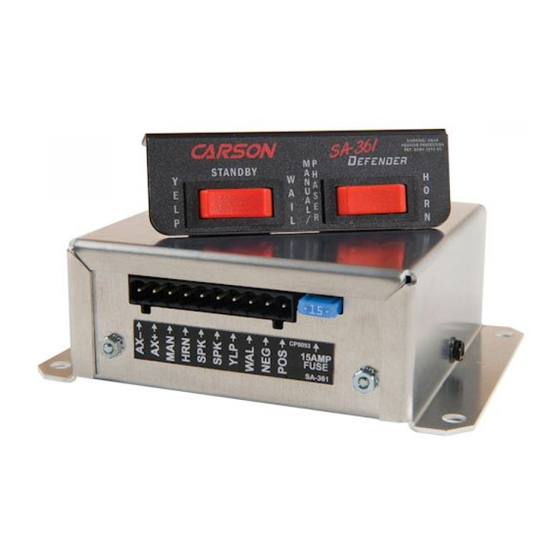

REMOTE SIREN AMPLIFIER
Y
E
L
P
INSTALLATION AND OPERATING
Carson is a trademark of Carson Manufacturing Company, Inc.
Sound Hazard - Sound level from siren speaker (>120dBA @ 10 feet) may cause hearing damage.
Do not operate siren without adequate hearing protection for you and anyone in immediate vicinity.
(Ref. OSHA 1910.95 for occupational noise exposure guidelines)
5451 North Rural Street
Indianapolis, IN 46220
www.carsonsirens.com
SA-361-30
STANDBY
W
A
I
L
INSTRUCTIONS
Fax: (317) 254-2667
SA-361
M
P
A
H
N
A
U
S
A
E
L
R
/
H
O
R
N
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Carson SA-361-30
Summary of Contents for Carson SA-361-30
- Page 1 INSTALLATION AND OPERATING INSTRUCTIONS Carson is a trademark of Carson Manufacturing Company, Inc. Sound Hazard - Sound level from siren speaker (>120dBA @ 10 feet) may cause hearing damage. Do not operate siren without adequate hearing protection for you and anyone in immediate vicinity.
-
Page 2: Table Of Contents
NOTICE This Carson siren is intended for use by authorized personnel only. It is the user’s responsibility to ensure they understand and operate this emergency warning device in compliance with all applicable city, state and federal laws and regulations. -
Page 3: Specifications
SA-361-30 Installation Instructions Page 3 of 8 SPECIFICATIONS Speaker Load Single 100W 11ohm Input Voltage 10 - 16 VDC (negative ground) Input Current 8 AMPS (@14 VDC - single 100W speaker) Standby Current Less than 5mA Output Power 105 WATTS RMS MAX. (15 VDC - single 100W speaker) Siren Frequency 700Hz - 1500Hz (Two-Tone and Horn = 435 &... -
Page 4: Option Switches
Page 4 of 8 SA-361-30 Installation Instructions OPTION SWITCHES An 8-position DIP switch on the remote amplifier may be changed to select various options. Option Switches Default Setting Shown – All ON Adjusting Option Switches - use a small screwdriver to change switch settings. - Page 5 SA-361-30 Installation Instructions Page 5 of 8 Auxiliary Input Connection (Optional) - A momentary input typically connected to the horn ring of the vehicle or other switch. See OPERATION section for auxiliary input functions. NOTE: Permanent disconnection of the vehicle horn is NOT recommended.
-
Page 6: Operation
Page 6 of 8 SA-361-30 Installation Instructions OPERATION Sound Hazard - Sound level from siren speaker (>120dBA @ 10 feet) may cause hearing damage. Do not operate siren without adequate hearing protection for you and anyone in immediate vicinity. (Ref. OSHA 1910.95 for occupational noise exposure guidelines) POWER ON/OFF The unit is turned on/off automatically (instant on) with the siren or auxiliary input controls. -
Page 7: Service
Check option switch settings. not working Remote switches wired incorrectly Are the correct switch terminals wired? PARTS and ACCESSORIES The following parts and accessories are available from Carson Manufacturing Company, Inc.: Part Description CP4990-150 Fuse, 15 Amp Mini Automotive CP4748-2... -
Page 8: Returns
During this warranty period the obligation of Carson Manufacturing is limited to repairing or replacing, as Carson Manufacturing may elect, any part or parts of such product which after examination by Carson Manufacturing is determined to be defective in material and/or work- manship.
