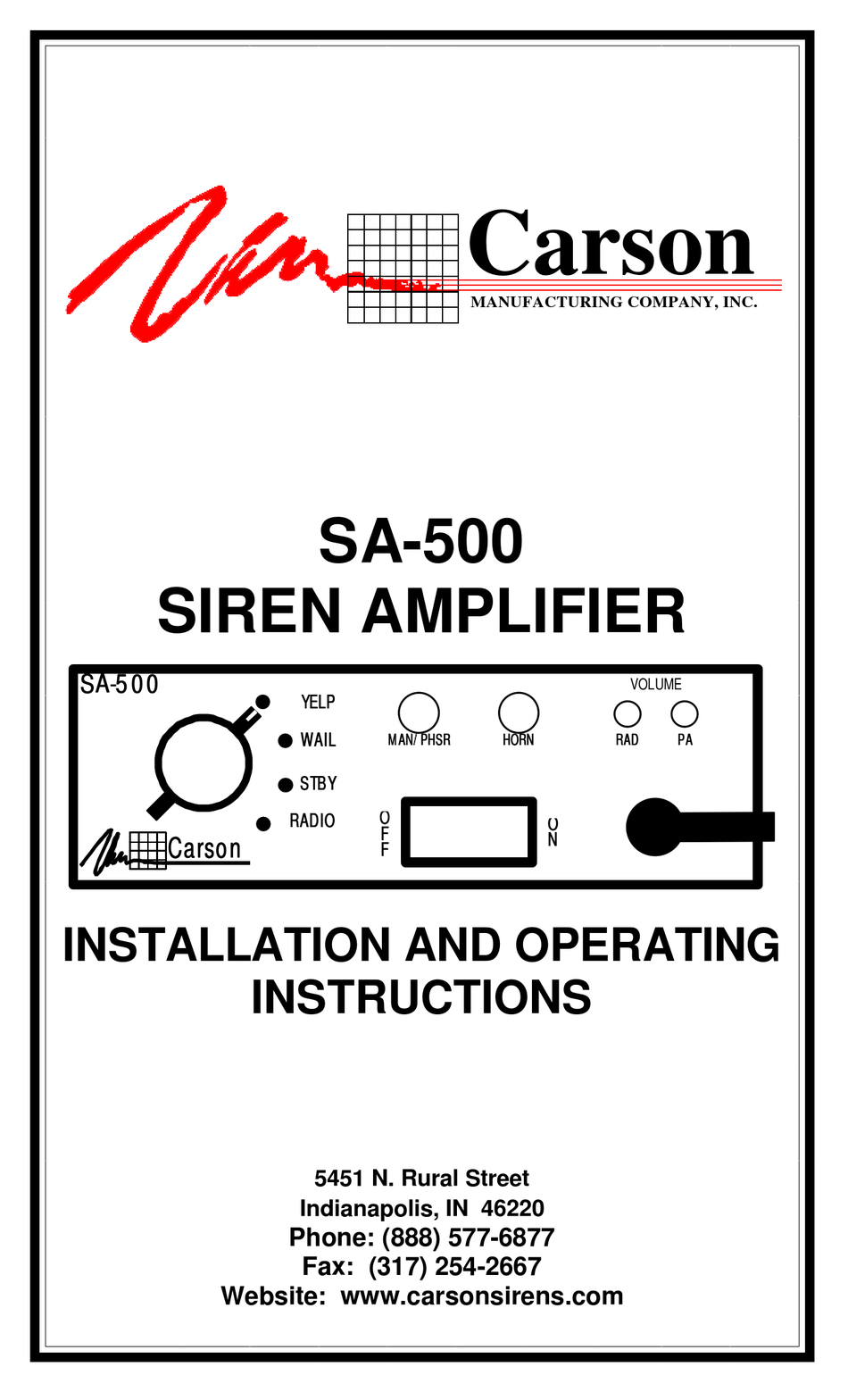

- Page 1 SIREN AMPLIFIER SA- - 500 Carson Carson INSTALLATION AND OPERATING INSTRUCTIONS Website: www.carsonsirens.com Carson MANUFACTURING COMPANY, INC. SA-500 YELP YELP WAIL WAIL MAN/PHSR MAN/PHSR HORN HORN STBY STBY RADIO RADIO 5451 N. Rural Street Indianapolis, IN 46220 Phone: (888) 577-6877 Fax: (317) 254-2667 VOLUME...
-
Page 2: Table Of Contents
Page 2 INSTALLATION INFORMATION MODEL: SA-500- _______________________ SERIAL NO: ___________________________ PURCHASE DATE: _____________________ DEALER: ______________________________ INSTALL DATE: ________________________ INSTALLER: ___________________________ Model and serial number located on bottom of unit GENERAL DESCRIPTION ...3 SPECIFICATIONS ...3 INSTALLATION ...3 SAFETY PRECAUTIONS ...3 UNPACKING ...4 MOUNTING ...4 INSTALLER-SELECTABLE OPTIONS ...4 ELECTRICAL CONNECTIONS ...5... -
Page 3: General Description

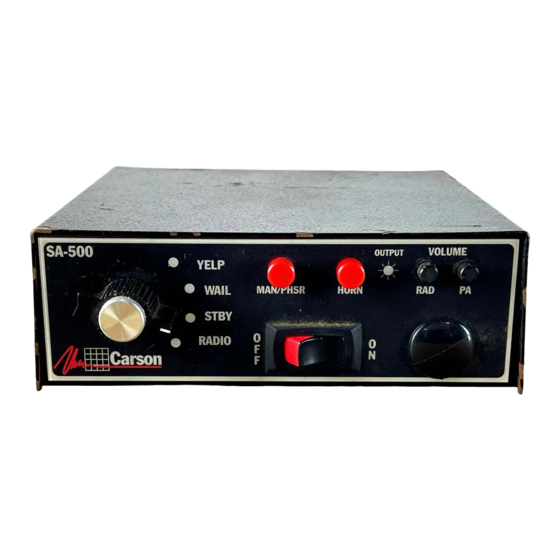

SA-500 Installation and Operating Instructions The SA500 Siren Amplifier is a premium unit designed for single or dual 100W speaker use. The primary operating modes are Yelp, Wail, Standby and Radio. A Noise Canceling PA Override and push-button Horn Override are available in all modes except Radio. A push-button is provided for push-on/push-off Phaser operation in the Yelp and Wail modes, and Manual siren control in the Standby mode. -
Page 4: Unpacking
Page 4 Wiring - Use wiring capable of handling the current required. Make sure all connections are tight. Route wiring to prevent wear, overheating and interference with air bag deployment. Install and check all wiring before connection to vehicle battery. Testing - Test all siren functions after installation to assure proper operation. -
Page 5: Electrical Connections
SA-500 Installation and Operating Instructions ELECTRICAL CONNECTIONS Electrical connections to the unit are made using a removable pressure connector located on the back. A label on the unit identifies the terminal function. should install the connector on the unit before wiring. If the unit needs service the connector can be easily removed without unwiring the connector. -
Page 6: Operation
Page 6 SA-500 Installation and Operating Instructions OPERATION GENERAL This unit is designed for easy operation under the stress associated with high-speed pursuit. Most siren functions are accessible with one simple motion without repetitive activation of switches or automatic timed switching that can interfere with desired operation. SELECTOR SWITCH The rotary selector switch controls the primary oper- ating function of the siren. -
Page 7: Service
SA-500 Installation and Operating Instructions This unit is designed to provide years of reliable service under even the worst conditions. Many times there may appear to be a problem with the unit when the true problem is in the speaker(s) or improper installation. -
Page 8: Return
Page 8 RETURN If you have any questions concerning this or any other Carson product, please contact our Technical Service Department at (888) 577-6877. Many issues can be handled over the phone. We can also be reached via e-mail at service@carsonsirens.com If a product must be returned for any reason, please contact our Technical Service Department to obtain a Returned Merchandise Authorization num- ber (RMA#) before you ship the product to Carson.
