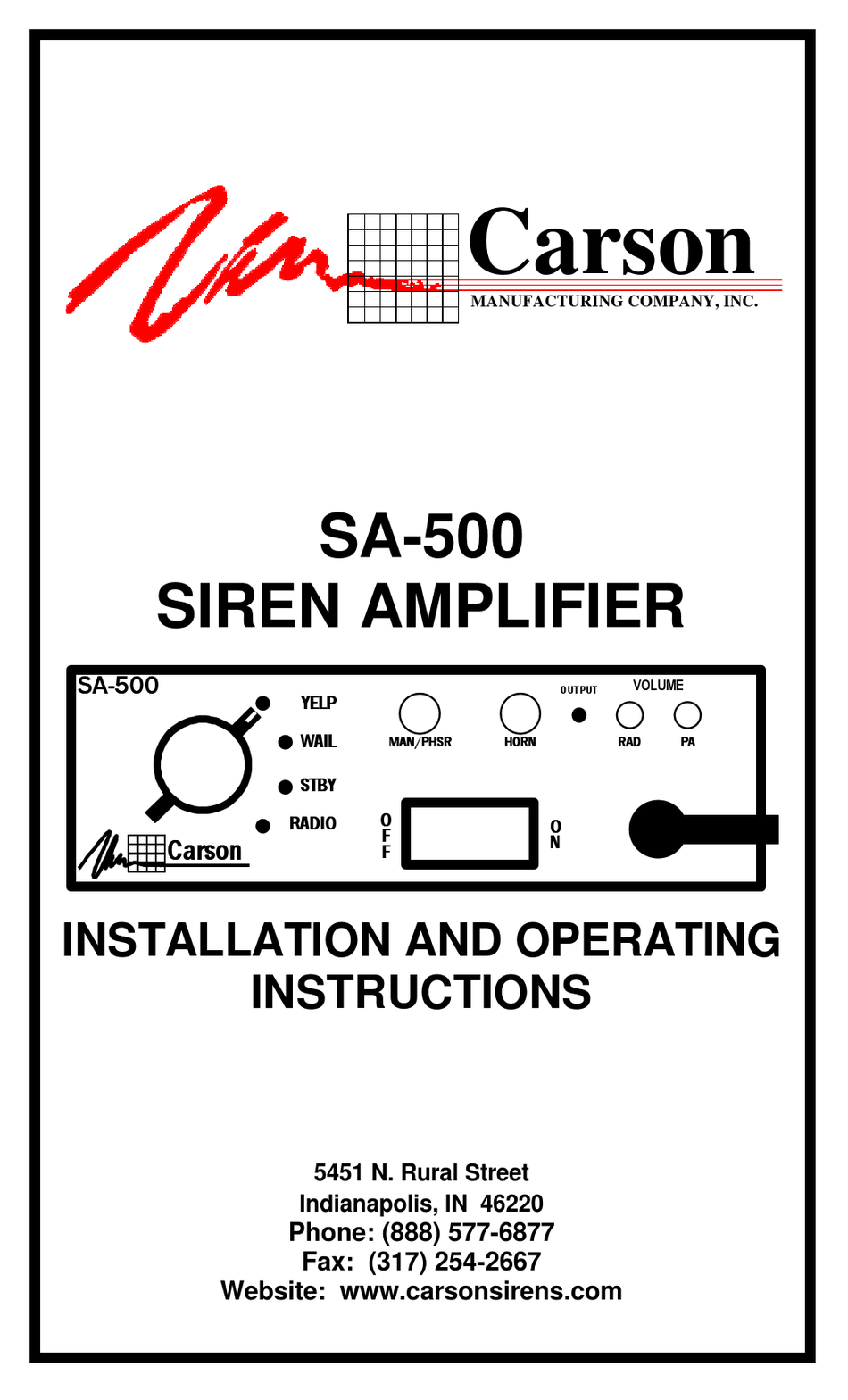

- Page 1 Carson MANUFACTURING COMPANY, INC. SA-500 SIREN AMPLIFIER SA- - 500 VOLUME OUTPUT YELP YELP WAIL WAIL MAN/PHSR MAN/PHSR HORN HORN PA PA STBY STBY RADIO RADIO Carson Carson INSTALLATION AND OPERATING INSTRUCTIONS 5451 N. Rural Street Indianapolis, IN 46220 Phone: (888) 577-6877 Fax: (317) 254-2667 Website: www.carsonsirens.com...
-
Page 2: Table Of Contents
Carson Manufacturing Co., Inc. makes no warranty of any kind with regard to this manual, including, but not lim- ited to, the implied warranties of merchantability and fitness for a particular purpose. -
Page 3: General Description

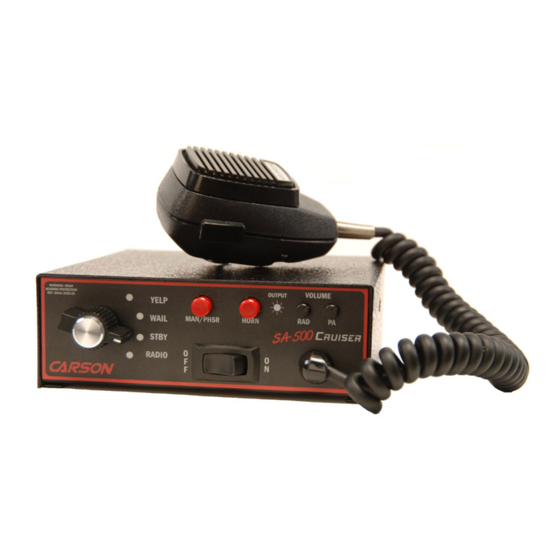

SA-500 Installation and Operating Instructions Page 3 GENERAL DESCRIPTION The SA500 Siren Amplifier is a premium unit designed for single or dual 100W speaker use. The primary operating modes are Yelp, Wail, Standby and Radio. A Noise Canceling PA Override and push-button Horn Override are available in all modes except Radio. -
Page 4: Unpacking
Page 4 SA-500 Installation and Operating Instructions Wiring - Use wiring capable of handling the current required. Make sure all connections are tight. Route wiring to prevent wear, overheating and interference with air bag deployment. Install and check all wiring before connection to vehicle battery. -
Page 5: Electrical Connections
SA-500 Installation and Operating Instructions Page 5 ELECTRICAL CONNECTIONS Electrical connections to the unit are made (2) #22 AWG BLU #22 AWG GRN (See below) using a removable pressure connector Connect to output jack, terminals or #22 AWG WHT (See below) located on the back. -
Page 6: Operation
Page 6 SA-500 Installation and Operating Instructions OPERATION GENERAL This unit is designed for easy operation under the stress associated with high-speed pursuit. Most siren functions are accessible with one simple motion without repetitive activation of switches or automatic timed switching that can interfere with desired operation. -
Page 7: Service
Phaser not work- Phaser disabled Is the P_I option selected? Horn not working Horn disabled Is the H_I option selected? PARTS The following parts are available from Carson Manufacturing Company, Inc.: Part Description CP4680-1 Siren Cover ED1558 Hardware Kit (Connector, bolts, microphone bracket with screws) -
Page 8: Return
During this warranty period the obligation of Carson Manufacturing is limited to repairing or replacing, as Carson Manufacturing may elect, any part or parts of such product which after examination by Carson Manufacturing is determined to be defective in mate- rial and/or workmanship.
