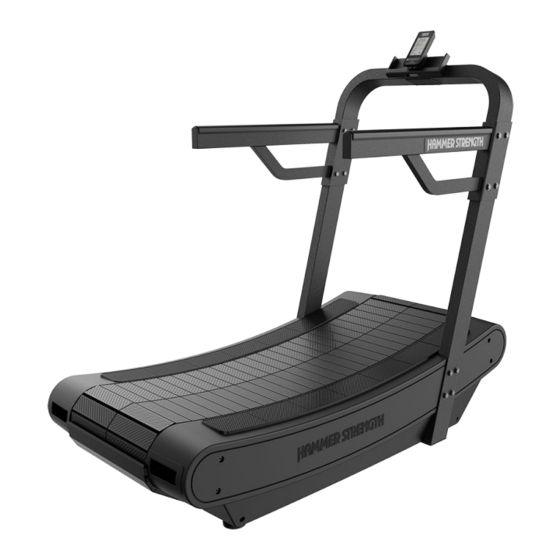

Summary of Contents for Hammer Strength PT-ST

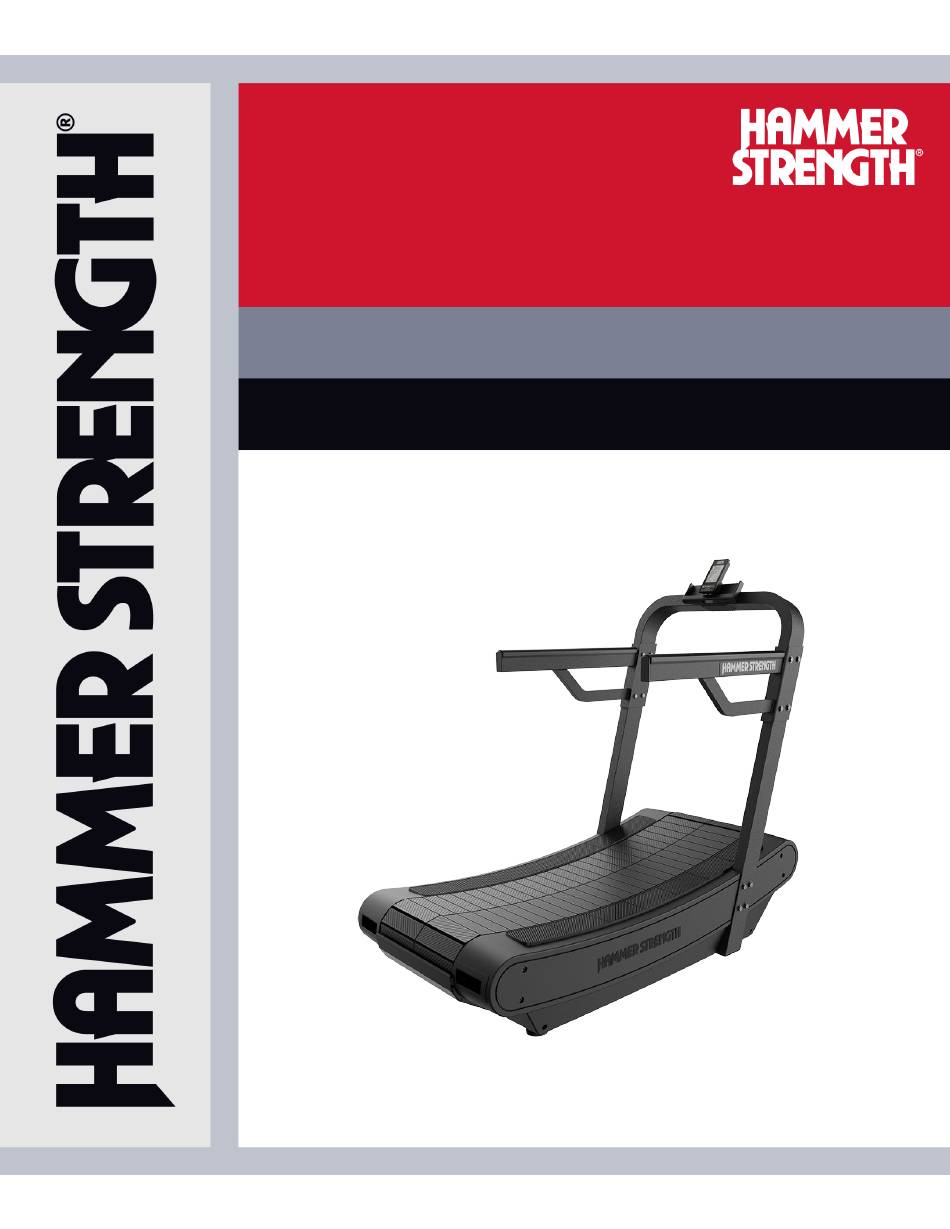

- Page 1 HD Tread Assembly Instructions PT‑ST 1018934-0001 REV AA...
- Page 3 Corporate Headquarters 10601 W Belmont Ave, Franklin Park, IL 60131 • U.S.A. 847.288.3300 • FAX: 847.288.3703 Service phone number: 800.351.3737 (toll-free within U.S.A., Canada) Global Website: www.lifefitness.com International Offices AMERICAS United Kingdom All Other EMEA Countries and Distributor Business EMEA* North America Life Fitness UK LTD Life Fitness Atlantic BV...
- Page 4 User and Service Documents Link https://lifefitness9512.zendesk.com/hc/en-us https://www.lftechsupport.com/web/document-library/documents Additional information is available online using the links above. أ علاه إل ر إبط باستخدإم إ لإ ن تر نت على إضافية معلومات تتوفر 点击上面的链接可在线获取更多信息。 Flere oplysninger er tilgængelige online gennem linket ovenfor. Bijkomende informatie is online beschikbaar via bovenstaande link.
-
Page 5: Table Of Contents
Polar Electro Inc. © Copyright 2021, Life Fitness, LLC. All Rights Reserved. Life Fitness, Hammer Strength, Cybex, ICG and SCIFIT are registered trademarks of Life Fitness, LLC and its affiliated companies and subsidiaries. Brunswick and related trademarks used under license from Brunswick Corporation. -
Page 6: Safety Instructions
1. Safety Safety Instructions Read all instructions before use. CAUTION: Any changes or modifications to this equipment could void the product warranty. CAUTION: Risk of injury to persons – to avoid injury, use extreme caution when stepping onto or off of a moving belt. - Page 7 • Do not reach into, or underneath, the unit or tip it on its side during operation. • This equipment is not intended for use by children. Keep children under the age of 14 away from the machine. • Do not allow other people to interfere in any way with the user or equipment during a workout. •...
-
Page 8: Consignes De Sécurité
Consignes de Sécurité Veuillez lire toutes les instructions avant usage. ATTENTION : Toute modification apportée à cet équipement pourrait en annuler la garantie. ATTENTION : Risque de blessures - pour éviter toute blessure, faire preuve d’extrême prudence pour monter sur un tapis en mouvement, ou pour en descendre. Lisez les instructions d’assemblage avant toute utilisation. AVERTISSEMENT : Une utilisation incorrecte ou excessive de l'appareil peut entraîner des blessures. - Page 9 • N’utilisez pas ces produits avec les pieds nus. Portez toujours des chaussures. Portez des chaussures à semelles en caoutchouc ou antidérapantes. N’utilisez pas de chaussures à talon, à semelle en cuir, à crampons ou à pointes. Assurez-vous qu’aucun caillou ne s’est incrusté dans les semelles. •...
-
Page 10: Immobilization Method, Home Use
Immobilization Method, Home use The purpose of immobilizing the treadmill is to prevent unauthorized use by children when installed in a home. The belt lock is included with treadmill. 1. Hold belt lock as shown and insert tab into striding belt slats. Rotate forward to install belt lock onto striding belt slats. -
Page 11: Biomechanical Positioning
Biomechanical Positioning The user shall be positioned on the striding belt facing the console. Handrails are used for mounting, dismounting, and balance. Item Description Striding belt Handrails Console This product is designed to exercise the major muscle groups in the upper and lower body. WARNING: Injuries to health may result from incorrect or excessive training. -
Page 12: Getting Started
2. Getting Started Free Area and Training Area 1. Read the entire manual before setting up the treadmill. 2. After following all Safety Instructions, move the treadmill to the location where it will be used. 3. The following information is supplied as regional reference data regarding safety clearances around the exterior of the treadmill. -
Page 13: Water Bottle Holder (Optional)
Water Bottle Holder (optional) A standard bicycle water bottle holder can be installed on the mounting bolts on right upright. Water bottle holders are not available through Hammer Strength. Item Description Mounting bolt Right upright Page 11 of 19... -
Page 14: Assembly
3. Assembly Hardware and Tools Required Hardware: Item Description Qty. Screw, M10 X 1.5 X 65 mm, HXS, Hex Screw, M10 X 1.5 X 80 mm, HXS, Hex Washer, M10.5 X 22 X 2, Flat Nut: Hex, M10 X 1.5 Screw, M8 X 1.25 X 16 mm, HXS, Hex Washer, M8 X 19 X 1, Flat Tools Required:... -
Page 15: Install Left Upright
2. Install four screws and four washers securing right upright to base using a 17 mm socket wrench. Torque to 20-25 ft-lbs. Item Description Screw, M10 X 1.5 X 65 mm Washer, M10.5 X 22 X 2, Flat Right upright Install Left Upright 1. -
Page 16: Install Right Handrail
Install Right Handrail 1. Place right handrail in position on right upright and insert two screws and washers into lower holes in right upright. Item Description Right handrail Screw, M10 X 1.5 X 80 mm Washer, M10.5 X 22 X 2, Flat Handrail plate Nut: Hex, M10 X 1.5 Right upright... -
Page 17: Install Console Crossbar
Install Console Crossbar 1. Place right side of console crossbar onto right handrail. Item Description Console crossbar Upper console cable Middle console cable Left handrail Right handrail 2. Plug upper console cable into middle console cable. 3. Lower console crossbar onto left handrail NOTE: Do not pinch console cables. -
Page 18: Install Console
6. Install two screws, four washers, and two nuts securing console crossbar to right handrail and upright using a 17 mm open end wrench and 17 mm socket wrench. Torque to 20-25 ft-lbs. Item Description Screw, M10 X 1.5 X 80 mm Washer, M10.5 X 22 X 2, Flat Right handrail and upright Nut: Hex, M10 X 1.5... -
Page 19: Install Batteries
3. Install two screws and two washers securing console bracket to console crossbar using a 13 mm socket wrench. Torque to 7 ft-lbs. Item Description Console bracket Screw, M8 X 1.25 X 16 mm Washer, M8 X 19 X 1, Flat Console crossbar Install Batteries 1. -
Page 20: Complete Installation
Complete Installation 1. Place treadmill in location where it will be used. See Free Area and Training Area. 2. Stabilize treadmill to prevent rocking. See How to Stabilize Treadmill. Page 18 of 19... -
Page 21: Specifications
4. Specifications Specifications Designed Use EN 957-6, Product Class S Maximum User Weight 350 lbs. / 159 kg Drive Type Belt Power Requirements Battery power console. Two D cell batteries. Heart Rate Wireless heart rate using an Analog signal. Operation Frequency 2402 ~ 2480 Mhz RF Output Power 0.22 Mw...
