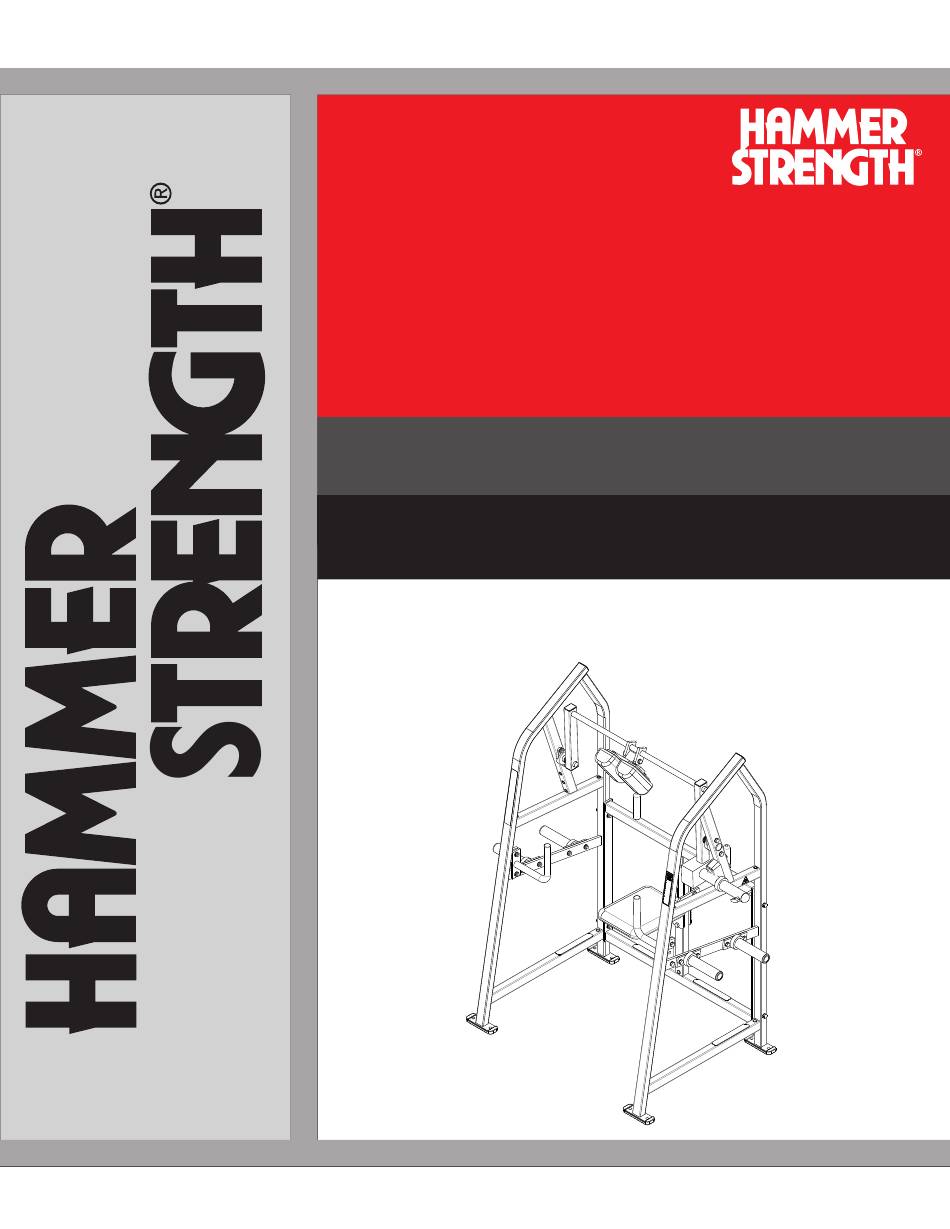

- Page 1 PLATE LOADED PARTS MANUAL 4 WAY NECK PL4W & PL-4W SERIAL NUMBER: PL4W A 0101 TO PL-4W0817A002 10/9/2018...
-
Page 2: Table Of Contents
CONTENTS COMPONENT ASSEMBLY ................PAGE 3 HANDLE ASSEMBLY ....................4 LEFT SIDE FRAME ASSEMBLY ................5 MOVEMENT ARM ASSEMBLY .................. 6 SEAT FRAME ASSEMBLY ..................7 STD SEAT ASSEMBLY ................... 8 RIGHT SIDE FRAME ASSEMBLY ................9 WEIGHT HORN ASSEMBLY .................. 10 UPHOLSTERY Items with Gray call-outs require the upholstery color listed within the order notes. -
Page 3: Component Assembly
COMPONENT ASSEMBLY ITEM NO. QTY. PART NO. DESCRIPTION PL4W-CST ASSY, SEAT FRAME, PL4W 7499399 PAD, 13-3/4 X 10-3/4 7501399 PAD, 8 X 4 X 2-3/4 PL4W-CETC1 ASSY, HANDLEBAR, PL4W WASH.5STAR 1/2" INTERNAL LOCK WASHER NUT.5JAMLOCK 1/2 THIN LOCK NUT HHB.5X1.5 BOLT, HEX HEAD 1/2 X 1-1/2 HHB.5X3... -
Page 4: Handle Assembly
HANDLE ASSEMBLY ITEM NO. QTY. PART NO. DESCRIPTION H-GRIP HANDLE GRIPS (.938X16) -
Page 5: Left Side Frame Assembly
LEFT SIDE FRAME ASSEMBLY ITEM NO. QTY. PART NO. DESCRIPTION PL4W-SF WLDMT, SIDE FRAME, PL4W NUT.5JAMLOCK 1/2 THIN LOCK NUT HHB.5X2.5 1/2 X 2 1/2 BOLT WASH.5SAE 1/2" SAE FLAT WASHER NUT.5LOCK 1/2 DIA THICK LOCK NUT WASH.5STAR 1/2" INTERNAL LOCK WASHER HHB.5X3.5... -
Page 6: Movement Arm Assembly
MOVEMENT ARM ASSEMBLY ITEM NO. QTY. PART NO. DESCRIPTION PL4W-ETC WLDMT, PAD MOUNT, PL4W WASH.5STAR 1/2" INTERNAL LOCK WASHER NUT.5LOCK 1/2 DIA THICK LOCK NUT HHB.5X4BRO 1/2 X 4 BOLT BRONZE RC1520-1Q1 CAP:1-1/2 X 2 RECTANGLE PLUG RUBCAP1-2 RUBBER CAP #1... -
Page 7: Seat Frame Assembly
SEAT FRAME ASSEMBLY ITEM NO. QTY. PART NO. DESCRIPTION HHB.5X2.5 1/2 X 2 1/2 BOLT NUT.5JAMLOCK 1/2 THIN LOCK NUT H-HPLUG (REG) HOLE PLUG H-GRIP HANDLE GRIPS (.938X16) NONSKID 1 X 9 PLASTIC NON SKID STRIP 1 X 9 H-SEATRCKS-N PLASTIC SEAT GUIDES(PP229)NEW) H-SEATRCKS-RIB SEATRACK BACK SEAT NUMBER... -
Page 8: Std Seat Assembly
STD SEAT ASSEMBLY ITEM NO. QTY. PART NO. DESCRIPTION H-HPLUG(SMALL) 1/2 IN. HOLE PLUG SELECTOR PIN-4 SELECTOR PIN 4" WITH LANYARD HHB.375X4.5 STEEL BOLT 3/8 X 4.5 NUT.375LOCK 3/8 THICK LOCK NUT RC1530-1Q1 CAP:1-1/2 X 3 RECTANGLE PLUG STD SEAT PIN STD SEAT PIN WASH.375SAE 3/8"... -
Page 9: Right Side Frame Assembly
RIGHT SIDE FRAME ASSEMBLY ITEM NO. QTY. PART NO. DESCRIPTION PL4W-SF WLDMT, SIDE FRAME, PL4W NUT.5JAMLOCK 1/2 THIN LOCK NUT HHB.5X2.5 1/2 X 2 1/2 BOLT MM-8 2 X 6 FLANGE RUBBER SLIPPER WASH.5STAR 1/2" INTERNAL LOCK WASHER H-LOCK-PLUG(SMALL) SMALL LOCKING PLUG... -
Page 10: Weight Horn Assembly
WEIGHT HORN ASSEMBLY ITEM NO. QTY. PART NO. DESCRIPTION 8078001 CAP, END 1.75 DIA RD 14-20 GA 7671601 BUMPER, WEIGHT HORN/ROD LABEL NOT INCLUDED IN ASSEMBLY 8351801 LABEL, WEIGHT HORN, SHEET...
