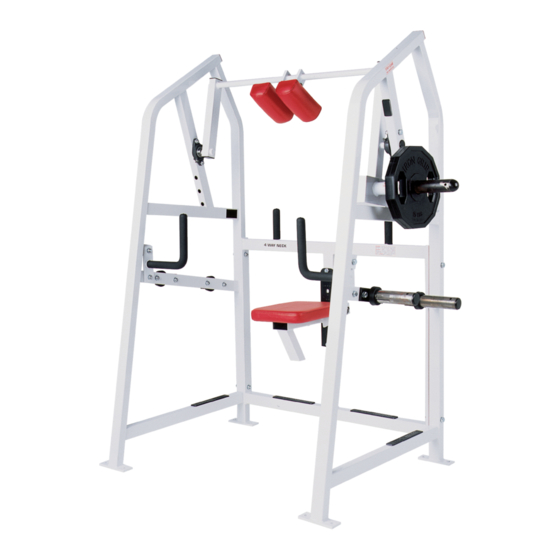

PLATE LOADED
PARTS MANUAL
4 WAY NECK
PL-4W
SERIAL NUMBER: PL-4W0817A003 TO CURRENT
10/9/2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PL-4W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hammer Strength PL-4W

Summary of Contents for Hammer Strength PL-4W

  • Page 1 PLATE LOADED PARTS MANUAL 4 WAY NECK PL-4W SERIAL NUMBER: PL-4W0817A003 TO CURRENT 10/9/2018...

  • Page 2: Table Of Contents

    CONTENTS COMPONENT ASSEMBLY ................PAGE 3 HANDLE ASSEMBLY ....................4 LEFT SIDE FRAME ASSEMBLY ................5 MOVEMENT ARM ASSEMBLY .................. 6 SEAT FRAME ASSEMBLY ..................7 STD SEAT ASSEMBLY ................... 8 RIGHT SIDE FRAME ASSEMBLY ................9 WEIGHT HORN ASSEMBLY .................. 10 UPHOLSTERY Items with Gray call-outs require the upholstery color listed within the order notes.

  • Page 3: Component Assembly

    COMPONENT ASSEMBLY ITEM NO. QTY. PART NO. DESCRIPTION PL4W-CST ASSY, SEAT FRAME, PL4W PL4W-CSFR ASSY, SIDE FRAME, RIGHT, PL4W PL4W-CSFL ASSY, SIDE FRAME, LEFT, PL4W PL4W-CETC1 ASSY, HANDLEBAR, PL4W WASH.5STAR 1/2" INTERNAL LOCK WASHER NUT.5JAMLOCK 1/2 THIN LOCK NUT HHB.5X1.5 BOLT, HEX HEAD 1/2 X 1-1/2 HHB.5X3 1/2 X 3 BOLT...

  • Page 4: Handle Assembly

    HANDLE ASSEMBLY ITEM NO. QTY. PART NO. DESCRIPTION H-GRIP HANDLE GRIPS (.938X16)

  • Page 5: Left Side Frame Assembly

    LEFT SIDE FRAME ASSEMBLY ITEM NO. QTY. PART NO. DESCRIPTION 8773701 LABEL, ASTM PL VERT NUT.5JAMLOCK 1/2 THIN LOCK NUT HHB.5X2.5 1/2 X 2 1/2 BOLT WASH.5SAE 1/2" SAE FLAT WASHER NUT.5LOCK 1/2 DIA THICK LOCK NUT WASH.5STAR 1/2" INTERNAL LOCK WASHER HHB.5X3.5 1/2 X 3 1/2 BOLT H-LOCK-PLUG(SMALL) SMALL LOCKING PLUG...

  • Page 6: Movement Arm Assembly

    1/2" INTERNAL LOCK WASHER NUT.5LOCK 1/2 DIA THICK LOCK NUT HHB.5X4BRO 1/2 X 4 BOLT BRONZE 3236206 SCREW, M10 X1.5 45MM STEELBUSH 3/4 I.D. FLANGED DRILL BUSHING H-BEAR-SML SMALL BEARING ACCORDIAN SHAFT GUARD H-NAMEPLATE HAMMER STRENGTH BADGE WASH.375SAE 3/8" SAE FLAT WASHER...

  • Page 7: Seat Frame Assembly

    SEAT FRAME ASSEMBLY ITEM NO. QTY. PART NO. DESCRIPTION SEAT NUMBER SEAT NUMBER HHB.5X2.5 1/2 X 2 1/2 BOLT NUT.5JAMLOCK 1/2 THIN LOCK NUT H-HPLUG(REG) H-PLUG 9-16 H-GRIP HANDLE GRIPS (.938X16) NONSKID 1 X 9 PLASTIC NON SKID STRIP 1 X 9 H-SEATRCKS-N PLASTIC SEAT GUIDES(PP229)NEW) H-SEATRCKS-RIB SEATRACK BACK...

  • Page 8: Std Seat Assembly

    STD SEAT ASSEMBLY ITEM NO. QTY. PART NO. DESCRIPTION H-HPLUG(SMALL) 1/2 IN. HOLE PLUG SELECTOR PIN-4 SELECTOR PIN 4" WITH LANYARD HHB.375X4.5 STEEL BOLT 3/8 X 4.5 NUT.375LOCK 3/8 THICK LOCK NUT RC1530-1Q1 CAP:1-1/2 X 3 RECTANGLE PLUG STD SEAT PIN STD SEAT PIN WASH.375SAE 3/8"...

  • Page 9: Right Side Frame Assembly

    RIGHT SIDE FRAME ASSEMBLY ITEM NO. QTY. PART NO. DESCRIPTION ID-PL4W PRODUCT PLACARD, PL4W NUT.5JAMLOCK 1/2 THIN LOCK NUT HHB.5X2.5 1/2 X 2 1/2 BOLT MM-8 2 X 6 FLANGE RUBBER SLIPPER WASH.5STAR 1/2" INTERNAL LOCK WASHER H-LOCK-PLUG(SMALL) SMALL LOCKING PLUG RC1520-1Q1 CAP:1-1/2 X 2 RECTANGLE PLUG H-HPLUG(REG)

  • Page 10: Weight Horn Assembly

    WEIGHT HORN ASSEMBLY ITEM NO. QTY. PART NO. DESCRIPTION 8078001 CAP, END 1.75 DIA RD 14-20 GA 7671601 BUMPER, WEIGHT HORN/ROD LABEL NOT INCLUDED IN ASSEMBLY 8351801 LABEL, WEIGHT HORN, SHEET...
