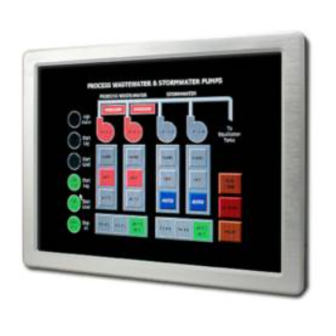

- Page 1 LPC-1009/1209/1509/ 1709 Series Fanless Multifunctional Touch Panel Computer Quick Reference Guide Ed – 02 September 2015 Copyright Notice Copyright 2015 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017L090A2R...
- Page 2 Disclaimer Avalue Technology Inc. reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Avalue Technology assumes no responsibility or liability for the...
- Page 3 Applications that are described in this manual are for illustration purposes only. Avalue Technology Inc. makes no representation or warranty that such application will be suitable for the specified use without further testing or modification.
-
Page 4: Table Of Contents
LPC-1009/1209/1509/1709 Series Content Getting Started ....................5 1.1 Safety Precautions ..................... 5 1.2 Packing List ....................... 5 1.3 Document Amendment History................6 1.3 System Specifications ..................7 1.4 System Overview ..................... 11 1.4.1 Top View ........................11 1.4.2 Bottom View ......................... 11 1.5 System Dimensions .................. -
Page 5: Getting Started
Quick Reference Guide 1. Getting Started 1.1 Safety Precautions Warning! Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. -
Page 6: Document Amendment History
LPC-1009/1209/1509/1709 Series 1.3 Document Amendment History Revision Date Comment November 2014 Avalue Initial Release June 2015 Avalue Update Specifications Apr 2016 Avalue Update Specifications 6 LPC-1009/1209/1509/1709 Series Quick Reference Guide... -
Page 7: System Specifications
Quick Reference Guide 1.3 System Specifications Panel LPC-1009 LPC-1209 Model LCD size 10.4", 4:3 12.1", 4:3 Display type XGA TFT Resolution 1024 x 768 Pixel pitch 0.0685mm(H) x 0.2055mm(V) 0.240mm(H) x 0.240mm(V) Luminance 500 cd/m² 600 cd/m² Contrast ratio 1200 Viewing angle 88(U), 88(D), 88(L), 88(R) 70(U), 70(D), 80(L), 80(R) - Page 8 LPC-1009/1209/1509/1709 Series Audio AC97 Codec Realtek ALC892 supports 5.1-CH Audio Audio Interface Connector: Line out Ethernet LAN Chip Dual Intel I210IT PCI-E Gigabit LAN Ethernet 10/100/1000 Base-Tx Fast Ethernet compatible Interface Mechanical & Environment Color Front Silver & Rear panel Black Mounting Wall/Stand/VESA 75 mm x 75 mm System Power...
- Page 9 Quick Reference Guide Panel LPC-1509 LPC-1709 Model LCD size 15", 4:3 17", 4:3 Display type SXGA Resolution 1024 x 768 1280 x 1024 Pixel pitch 0.297mm(H) x 0.297mm(V) 0.264mm(H) x 0.264mm(V) Luminance 400 cd/m² 350 cd/m² Contrast ratio Viewing angle 70(U), 70(D), 80(L), 80(R ) 60(U), 80(D), 80(L), 80(R ) Response time...
- Page 10 LPC-1009/1209/1509/1709 Series Resolution HDMI 1.4a resolutions up to 1920x1200@ 60 24bpp Dual Display LVDS + HDMI,LVDS + VGA,HDMI + VGA Audio AC97 Codec Realtek ALC662 supports 5.1 -CH Audio Ethernet LAN Chip Dual Intel I211AT-Gigabit Ethernet Ethernet 10/100/1000 Base-Tx Fast Ethernet compatible Interface Mechanical &...
-
Page 11: System Overview
Quick Reference Guide 1.4 System Overview 1.4.1 Top View LPC-1009/1209 LPC-1509/1709 1.4.2 Bottom View Connectors Label Function Note POWER Power on button COM1-3 DB-9 male connector Serial port 1-3 connector GPIO DB 9 male connector GPIO connector Audio Port 1x Line-out,1 x Mic 1 x USB 2.0 connector Dock USB 4 x USB 3.0 connector... -
Page 12: System Dimensions
LPC-1009/1209/1509/1709 Series 1.5 System Dimensions 1.5.1 LPC-1009 Front and Rear side (The I/O will be j u stified without notice) (Unit: mm) 12 LPC-1009/1209/1509/1709 Series Quick Reference Guide... -
Page 13: Lpc-1209 Front And Rear Side
Quick Reference Guide 1.5.2 LPC-1209 Front and Rear side (The I/O will be j u stified without notice) (Unit: mm) LPC-1009/1209/1509/1709 Series Quick Reference Guide 13... -
Page 14: Lpc-1509 Front And Rear Side
LPC-1009/1209/1509/1709 Series 1.5.3 LPC-1509 Front and Rear side (The I/O will be j u stified without notice) (Unit: mm) 14 LPC-1009/1209/1509/1709 Series Quick Reference Guide... -
Page 15: Lpc-1709 Front And Rear Side
Quick Reference Guide 1.5.4 LPC-1709 Front and Rear side l l i f i t (Unit: mm) LPC-1009/1209/1509/1709 Series Quick Reference Guide 15... -
Page 16: Hardware Configuration
LPC-1009/1209/1509/1709 Series 2. Hardware Configuration For advanced information, please refer to: 1- EMX-BYT2 User’s Manual Note: If you need more information, please visit our website: http://www.avalue.com.cn 16 LPC-1009/1209/1509/1709 Series Quick Reference Guide... -
Page 17: Lpc-1009/1209/1509/1709 Series Connector Mapping
Quick Reference Guide 2.1 LPC-1009/1209/1509/1709 Series connector mapping 2.1.1 Serial port 1 connector (COM1) RS-232 Signal PIN PIN Signal RS-422/485 2.1.2 Serial port 2 connector (COM2-3) Signal PIN PIN Signal LPC-1009/1209/1509/1709 Series Quick Reference Guide 17... - Page 18 Quick Reference Guide 2.1 LPC-1009/1209/1509/1709 Series connector mapping 2.1.3 GPIO port 1 connector (GPIO ) GPIO Signal PIN PIN Signal GPIO1 GPIO6 GPIO2 GPIO7 GPIO3 GPIO8 GPIO4 GPIO5 GND(CASE) 2.1.3 DC-IN port connector (DC-IN) Lockable DC Jack +12 LPC-1009/1209/1509/1709 Series Quick Reference Guide...
-
Page 19: Installing Hard Disk & Memory (For Lpc-1009/1209)
Quick Reference Guide 2.2 Installing Hard Disk & Memory (For LPC-1009/1209) Unfasten 6 screws from the case. Then take off the top chassis. VESA installation LPC-1009/1209/1509/1709 Series Quick Reference Guide 19... -
Page 20: Installing Hard Disk & Memory (For Lpc-1509/1709)
Quick Reference Guide 2.3 Installing Hard Disk & Memory (For LPC-1509/1709) Unfasten 6 screws from the case to take off the top chassis. VESA installation LPC-1009/1209/1509/1709 Series Quick Reference Guide...
