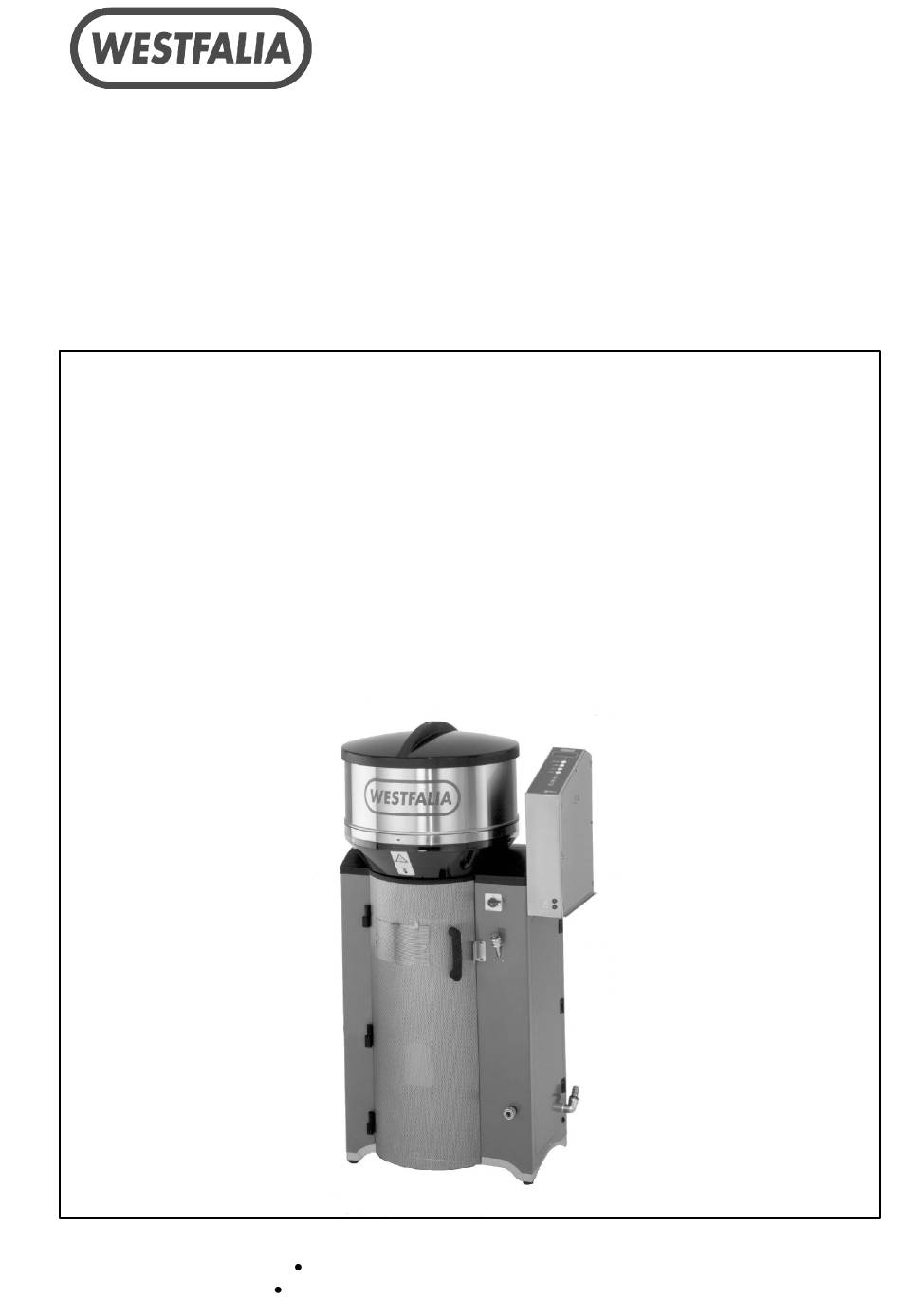

Page 1 PREMIUM BOY / PREMIUM BIG BOY SM TAK5--SM2--27--F1 VDW5--SM2--27--F1 TAK5--SM2--28--P1 VDW5--SM2--28--P1 TAK5--SM2--30--P1 VDW5--SM2--30--P1 TAK5--SM2--32--P1 VDW5--SM2--32--P1 TAK5--SM2--38--P1 VDW5--SM2--38--P1 (DAIRY PROGRAM controlled by CALFSCAN) Westfalia Landtechnik GmbH Postanschrift: Werner-Habig-Straße 1 D-59302 Oelde Westfalia Landtechnik GmbH Telefon (02522) 77-0 Telefax (02522) 77-2488 D-59299 Oelde Printed in F.R.Germany...
Page 3: Table Of Contents
Table of contents 1 Introduction ............1.1 Safety Instructions .
Page 4 Table of contents 9 Entries on the Feed Computer ......... . 9.1 Setup in DP5 .
Page 5 Table of contents 12.4.1 Mixer Cleaning ............12.4.2 HE Cleaning .
Page 6: Introduction
Introduction 1 Introduction 1.1 Safety Instructions Be sure to read and follow all instructions contained in this manual before connecting and using the automatic calf feeder. Use the appliance only to feed calves. Servicing and installation of the automatic calf feeder has to be restricted to qualified and authorised service personnel.
Page 7: Danger Signs On The Automatic Calf Feeder
Introduction 1.2 Danger Signs on the Automatic Calf Feeder CAUTION! This sign warns you of rotating parts starting to work automatically. This sign is located on potential danger areas such as the milk powder hopper, the milk powder outlet, the mixer as well as the outlet for pow- der additives on the additive dispenser.
Page 8: Construction Parts System--Machine Combi
Construction Parts System--Machine Combi 1.4 Construction Parts System- -Machine Combi Milk powder hopper Control unit with operating elements Main switch ON/OFF Dosing slide Pilot lamps for milk powder outlet heating and protection against Milk- - resp. water outlet frost Quick- - acting closure Mixer for sponge cleaning Water connection...
Page 9 Construction Parts System--Machine Combi Thermostat for minimum operating temperature Heating thermostat Circulation valve* Water valve heat exchanger Circulation valve Water valve boiler Milk valve Milk connection Water connection Milk pump Water connection for hose cleaning Detergent pump (accessory) Box valve 1 Box valve 2 (accessory) Receptacle for detergent (accessory) * not available on model TAK5--SM2--27--F1...
Page 10: Motherboard And Distribution Board Sm 2 Plus
Motherboard and Distribution Board SM 2 Plus 1.4.1 Motherboard and Distribution Board SM 2 Plus On the motherboard are located the transformer for weak current supply of the processor control, the relays, the connectors for external components, the fuses and LEDs.
Page 11: Heat Exchanger / Circulation Pump
Heat Exchanger / Circulation Pump 1.4.2 Heat Exchanger / Circulation Pump Heat exchanger with circulation pump (not available on model Mixer to mix up „TAK5- - SM2- - 27- - F1“) and stainless the feed components steel coil. The circulation pump Feeding pump keeps the warm water in the boiler running at high speed effecting in...
Page 12: Hand--Actuated Feeding Pump
Hand--Actuated Feeding Pump 1.4.3 Hand- - Actuated Feeding Pump Thanks to the hand- -actuated feeding pump that is located below the valve unit, calves may easily get accustomed to the teat. You can activate the feeding pump either by pressing a key on the operating unit (stylized teat) or by pushing a button on the remote control.
Page 13: Specifications Automatic Calf Feeder
Specifications Automatic Calf Feeder 2 Specifications Automatic Calf Feeder Please observe the information on the nameplate located at the left of the chassis! Electrical Connection TAK5- -SM2- -38- -P1, TAK5- -SM2- -27- -F1 (400 V) 230V / 400V / 3 / N / PE, 50 Hz, 16 A TAK5- -SM2- -27- -F1 (230 V) 230V / L / N / PE, 50 Hz, 16 A TAK5- -SM2- -28- -P1 (only for U.S.A.
Page 14 Specifications Automatic Calf Feeder Dimensions of the automatic calf feeder (Combi version) Height: 126 cm Width: 67 cm in case of closed lateral doors 115 cm in case of open lateral doors Depth: 57 cm without dispenser for powder additives 66 cm with dispenser for powder additives Weight (with basic equipment): approx.
Page 15: Locating The Automatic Calf Feeder
Locating the Automatic Calf Feeder 3 Locating the Automatic Calf Feeder 3.1 Local Electrical Connection Refer installation of the local electrical connection to qualified electricians. Observe local recommendations and protective measures. To operate the automatic calf feeder, it is demanded to install an earth leak switch (30 mA) in the local power supply.
Page 16: Mounting The Sucking Station
Mounting the Sucking Station 3.3 Mounting the Sucking Station Install the sucking station max. 65 cm above the stable ground. Mount the teat approx. 15 cm above the suction hose connection of the mixer. Fix the suction hose in such a way, that the mixer jar can easily be tipped in forward direction.
Page 17: Mounting The Race--Way
Mounting the Race--Way 3.4 Mounting the Race- -Way Mount an appropriate race- -way in front of the sucking station, in order to prevent a calf from being pushed aside by other calves. Mount the race- -way according to the mounting instructions. 3.5 Connecting the Micro- -Identification “Calfscan”...
Page 18: Water And Milk Connection
Water and Milk Connection 3.6 Water and Milk Connection Water connection Milk connection 3.6.1 Water Connection Connect the 1/2“ water hose with a 3/4“ hose coupling at the right of the automatic calf feeder. The water pressure supplied by customer has to be between 2,5 and 6 bar. Note : To ensure troublefree functioning of the automatic feeder, take care that the water pressure does not fall below 2,5 bar!
Page 19: Milk Connection
Water and Milk Connection 3.6.2 Milk Connection Convey the milk from the milk storage tank straight to the automatic calf feeder. In case long pipes are inevitable, use bigger diameters. To avoid air bubbles, do not hang the milk hose into the milk tank from above but install connection for milk pipe at the bottom of the milk tank.
Page 20: Operating Elements
Operating Elements 4 Operating Elements 4.1 Keyboard You can carry out all major settings and operations concerning e.g. operating mode, portion values, calibration, cleaning, diagnosis etc. via the keyboard. The display shows all current settings. Display Automatic key with LED Automatic Key for feeding pump Cleaning key...
Page 21: Operational Control Keys
Operating Elements 4.1.1 Operational Control Keys Automatic Automatic key: the automatic calf feeder runs in the automatic mode. You will find more detailed information on the individual functions in chapter 11, page 65 ff. Press this key to activate the feeding pump. Press Cleaning key to access the cleaning menu.
Page 22: Entering The Values
Operating Elements 4.1.2 Entering the Values Press Arrow Up/Arrow Down or Enter to enter, set or change the values concerning e.g. calibration, concentration, milk ratio, additive amount etc. Press the Menu key to access the main menus. Press Enter to change a value. The value displayed on the screen starts flashing (e.g.
Page 23: Selecting The Options
Operating Elements 4.1.3 Selecting the Options You can only select one of the available options. The automatic feeder can run either in the „ad libitum“ or in the „restricted“ mode. The selected option is marked by an asterisk in the second line of the display.
Page 24: Installing The Automatic Calf Feeder
Installing the Automatic Calf Feeder 5 Installing the Automatic Calf Feeder 5.1 Connecting the Automatic Calf Feeder to the Mains Supply Warning: Before switching the heating on, fill up the heat exchanger, otherwise the boiler will be damaged. There will be no guarantee for a reliable functioning of the automatic feeder.
Page 25: Deaerating The Circulation Pump (If Available)
Installing the Automatic Calf Feeder 5.3 Deaerating the Circulation Pump (if available) Open the door on the right- -hand side of the chassis. Remove the cover, strip the deaeration screw and wait until some water comes out. Fasten the deaeration screw. Fix the cover.
Page 26: Calibrating The Feed Components
Installing the Automatic Calf Feeder Cool the milk or preserve it with formic acid (20 - 30 ml, concentration 10 % per liter milk). Do not feed the animals with milk starting to turn sour! 5.6 Calibrating the Feed Components You have to calibrate all feed components otherwise the automatic feeder cannot prepare an exact feed mix in feeding mode.
Page 27: Setting The Heating
Setting the Heating 5.7 Setting the Heating Switch the heating on only after you have filled the heat exchanger with water! Thermostat for minimum operating temperature and heating: The thermostat for minimum operating temperature prevents too cold milk or water from being distributed.
Page 28: Recommendations For Temperature Settings
Setting the Heating The marks facilitate temperature setting. Yet, you have to check the settings regularly. 5.7.2 Recommendations for Temperature Settings The heat exchanger is designed in such a way that also the cheaper milk powders with higher fat melting point can be used without problems. In this case, the outlet temperature has to be exactly between 42GC and 43GC.
Page 29: Heating For Milk Powder Outlet And Protection Against Frost
Setting the Heating 5.8 Heating for Milk Powder Outlet and Protection against Frost CAUTION! In order to avoid injuries due to electric shocks, before opening the control unit it is imperative to make the automatic feeder currentless by turning the main switch to position „0/OFF“...
Page 30: Functioning Of The Automatic Calf Feeder
Functioning of the Automatic Calf Feeder 6 Functioning of the Automatic Calf Feeder 6.1 Preparing the Milk Portions The warm water is taken from the boiler of the heat exchanger. The milk pump delivers the milk through the stainless steel coil of the heat exchanger into the mixer jar. The circulation pump (not available on model TAK5- -SM2- -27- -F1) keeps the warm boiler water moving at high speed causing a rapid heat transfer to the liquid inside the stainless steel coil.
Page 31: In The Ad Libitum Mode
Functioning of the Automatic Calf Feeder 6.2.2 In the Ad Libitum Mode In the ad libitum mode the automatic calf feeder operates without animal identification. As soon as the rod electrode is free, the machine starts preparing the next portion. In case of two sucking stations, both suction lines are open.
Page 32: Settings In Setup
Settings in Setup 7 Settings in Setup You have to set all basic functions of the automatic feeder in Setup. Warning: Refer activation of these functions only to qualified personnel! The manufac- turer has already provided the machines with the correct settings. The manufacturer accepts no responsibility for incorrect settings that have been carried out by the user.
Page 33 Settings in Setup In addition, here you have to enter whether box 1 or box 2 are equipped with servo- - or gra- dient control. Select „no“ if you want to cancel or you do not want to register a box. In case an additive dispenser is connected and additives should be dispensed, select the Additive additive dispenser in Setup.
Page 34: Function Table „Setup
Settings in Setup 7.2 Function Table „Setup“ Setup Option deutsch english Language target language Powder Combi Machine Type Machine Type Fresh milk no Interface relay signal priority Interface Alcom--Bus VC3--Bus Address Squelch 0 < x < 255 Box 1 / Box 2 yes/no/servo/gradient Additive Dispenser yes/no...
Page 35: How To Make Entries In Setup
How to make entries in Setup 7.3 How to make entries in Setup When switching the automatic feeder on, only press the language „Menu“ key on the operating unit and keep it pressed until *deutsch the display shows: Press Enter, select the language by means of Arrow Up/ Arrow Down and confirm with Enter.
Page 36: Connecting The System- -Machine To The Feeding Computer
Connecting the System--Machine to the Feeding Computer 8 Connecting the System- -Machine to the Feeding Computer 8.1 Connecting the System- -Machine to the VC3- -Bus You may connect the automatic feeder directly to the VC3- -Bus by means of the VC3- -Bus- - Interface.
Page 37 Connecting the System--Machine to the Feeding Computer...
Page 38: Entries On The Feed Computer
Entries on the Feed Computer 9 Entries on the Feed Computer The following sections look at the options for setting up links with the various computer systems. The subsections are as follows: 8.1 Setup in DP5 8.2 Setup in DP4.4 8.3 Setup in C16 9.1 Setup in DP5 During the day- -to- -day use of the calf feeders, the data connection is controlled by the...
Page 39 Internet update and if it does not, it must be updated. DP5 users can download the latest version of DP5.0 from the Internet free of charge (address: www.westfalia.com - ->Service for you). 1. Setup for feed type The settings for the feed types required are entered in the ”DPSetup>...
Page 40 Entries on the Feed Computer Name of the feed, freely modifiable The type of feed must be specified here. (This function replaces the ”Feed Code” for feed in DP4) The supply of feed can be entered here. If a value is entered in the left- -hand field, then this will be ad- ded to the right- -hand field.
Page 41 Entries on the Feed Computer The following explanations relate to the illustration above There are two possible options for operating the calf feeder. a) constant concentration = Same percentage of milk powder for all animals In order to use a constant concentration for the feed, feed option1 (located under the ”Basic Powder Concentration”...
Page 42 Entries on the Feed Computer your animals 10 g of supplementary feed/litre of feed, then you must specify the amount for 1/2 a litre here, ie 5 g (= 0.005). b) variable concentration = The percentage of milk powder can be specified for individual animals In order to use a variable concentration for the feed, feed option1 (located under the ”Basic Powder Concentration”...
Page 43 Entries on the Feed Computer (the milk percentage can be entered in 10% increments from ”0.0” (= no milk) to ”1.0” (= 100%). In the case of feeders with a single heating circuit (HE 1 circuit), the percentage milk must be at least 30%) The feeding details for individual animals are entered in the main menu under ”Feeding”.
Page 44: Setup In Dp4.4
Entries on the Feed Computer 9.2 Setup in DP4.4 In principle, the settings required in DP4.4 are identical to those required for DP5. The dif- ference lies in the menu which is somewhat different. Therefore only the corresponding menu or the differences will be explained below. Please refer to the section entitled ”Setup in DP5 (From Version 5.016)”...
Page 45 Entries on the Feed Computer Setup for the feeding box This menu can be found in the main menu under ”Settings> Setup Feeding> Setup Feeding Stations”. The values which must be entered are identical to those described above under Setup in DP5 (from Version 5.016). If a facility is to be provided for controlling the variable percentage of milk for individual animals using DP 4.4, at least DP Version 4.418 will be required.
Page 46 Entries on the Feed Computer If the percentage of milk is not provided despite the setup and details being correct, the following changes will also have to be carried out: - - Change ”Edit Box Type” to ”Yes” - - Allocate Box Type 1 to the station and save - - Then change Box Type back to 4.
Page 47: Setup In C16
Entries on the Feed Computer 9.3 Setup in C16 The settings required for the C16 program cows/calves are explained in the C16 operating instructions. The following information only relates to the C16 standard program. In case of C16 Standard, you can enter the feed amount in feed type 2. Whereas, in case an extra feed (additive) dispenser is connected, the extra feed (additive) is distributed in feed type 3.
Page 48: Settings For Animal--Specific Increase Of The Concentration On C16
Entries on the Feed Computer 9.5 Settings for Animal- -Specific Increase of the Concentration on C16 Feed station: In order to set the powder concentration for each individual calf, you have to enter the following parameters: Interval 1: 2 = only calves with one feed ration are entitled to left- -over milk 3 = all calves are entitled to left- -over milk Portion weight 1: In Feed type 1, you can enter the animal- -specific milk powder concentration in g per liter...
Page 49: Functions Of The Menu Key
Functions of the Menu Key 10 Functions of the Menu Key The functions of the „Menu“ key are summed up in the following main menus: - - Hand Functions, - - Portion Values, - - Milk Values, - - Calibration, - - Machine Values, - - Diagnosis.
Page 50: Portion Values
Functions of the Menu Key 10.2 Portion Values In the main menu „Portion values“ you can enter the operating mode as well as the values of the portion that should be prepared. You may choose between the following submenus: - - Concentration - - Milk ratio - - Additive - - Operating mode...
Page 51: Entering The Milk Ratio
Functions of the Menu Key 10.2.2 Entering the Milk Ratio In submenu „Milk Ratio“ you can enter the proportions of a mixture (freshmilk and milk powder + water). Milk and water can be mixed from 30 % to 90 % in 1 % steps. In case the automatic feeder is equipped with a heat exchanger with circulation pump, milk and water can be mixed from 10 % to 90 % in 1 % steps.
Page 52: Milk Values
Functions of the Menu Key 10.3 Milk Values In the main menu „Milk values“ you can carry out all settings concerning fresh milk feeding. You may choose between the following submenus: - - Operating mode - - Milk value - - Switch to MP- -operating mode - - Switch to 1- -circle- -operating mode in case milk ratio <...
Page 53: Commuting To Mp--Mode
Functions of the Menu Key 10.3.3 Commuting to MP- - mode When the milk tank is empty, the automatic calf feeder switches off or commutes to milk powder mode. When you select „Switch to MP- -mode“, the machine runs in when milk empty the MP- -mode when the milk storage tank is empty.
Page 54: Calibration
Functions of the Menu Key 10.4 Calibration 10.4.1 Calibrating Water, Milk, MP Calibration is defined as the input into the computer of the amount of water, milk and MP distributed during a fixed period of time. Only enter the value corresponding to the amount that has actually been distributed.
Page 55 Functions of the Menu Key Example for the calibration of water: hand functions hold measuring ves- sel under discharge water HE water HE calibration start ? targ.: 500 ml dosing process is running water boiler water HE act.:>500< ml start ? weigh the quantity milk...
Page 56: Calibrating Additives And Detergent
Functions of the Menu Key 10.4.2 Calibrating Additives and Detergent When the automatic feeder is equipped with an additive dispenser or with a detergent pump and should the mixer be cleaned with a detergent, you have to calibrate the additives and the detergent, too.
Page 57: Machine Values
Functions of the Menu Key 10.5 Machine Values The main menu „Machine Values“ contains the following submenus: - - Intermediate Mix - - Afterrun Mixer - - Emptying Mixer - - Press Out Milk - - Distribution Pause - - Box 1 / Box 2 10.5.1 Intermediate Mix Press „Menu“...
Page 58: Press Out The Milk
Functions of the Menu Key When a calf does not claim its milk portion at all or in case it only claims it partially, the milk can be drained off into the mixer jar via the mixer outlet valve after the entered time has lapsed.
Page 59: Box 1 / Box 2
Functions of the Menu Key 10.5.6 Box 1 / Box 2 In this submenu you can enter draining time and in case the automatic feeder is equipped with gradient- - and servo- -control, you can also enter turn- -on and turn- -off delay. When the suction hoses are longer than two meters, it is advisable to enter draining time.
Page 60: Diagnosis
Functions of the Menu Key 10.6 Diagnosis The main menu „Diagnosis“ facilitates trouble shooting. In addition, motors, valves and pumps can be controlled individually. Press Menu key. Press Arrow Down to move to the main diagnosis menu „Diagnosis“: 10.6.1 Valves/Motors In the following submenus each output can be controlled individually.
Page 61: Calibration
Functions of the Menu Key - - Temperature - - Detergent 10.6.3 Calibration In this submenu you can check duration of dispense of the relevant feed component resp. of detergent (HE water; Boiler water; Milk; MP; Additive; Detergent). The following example concerns boiler water but it also fits to all other components: Press Arrow Down to move to submenu „Calibration“.
Page 62: Version
Functions of the Menu Key 10.7 Version Here you can read the version number of Eprom, identifica- System-Machine tions for box 1 and 2 and interface. xxxx-xx x.xx...
Page 63: Function Table Of The Menu Key For Connection To Bus--System
Function Table of the Menu Key for Connection to Bus--System 10.8 Function Table of the Menu Key for Connection to Bus- -System In case the System- -Machine is connected to the Bus- -system, the following functions are displayed (as of version 01.01): Menu Submenu Hand Functions...
Page 64 Function Table of the Menu Key for Connection to Bus--System Machine Values Box 1/2 Turn- -on delay Turn- -off delay Diagnosis Valves Water valve HE open? Water valve boiler open? Milk valve open? Mixer valve open? Circulation valve open? Air valve open? Box valve 1/2 open? Motors Milk pump start?
Page 65: Functions Of The Automatic Key
Functions of the Automatic Key 11 Functions of the Automatic Key After pressing the Automatic key, the feeder runs in the automatic mode. The green pilot lamp lights. The automatic feeder starts preparing a milk portion as soon as the feeding computer transmits the corresponding signal.
Page 66 Functions of the Automatic Key display shows the following message: box: 1* The open box valve is marked by an asterisk*. feed: xx.x l After that, the display shows the feed quantity that has been feed: xx.x l dispensed until then. cl.
Page 67: Releasing An Extra--Portion
Functions of the Automatic Key 11.2 Releasing an Extra- -Portion In the Automatic- -mode a milk portion can be released as soon as the rod electrode is free. Keep ENTER pressed for about 2 seconds. The displayed extra-portion concentration value starts flashing. Press Arrow Up/Arrow >120 g/l<...
Page 68: Functions Of The Cleaning Key
Functions of the Cleaning Key 12 Functions of the Cleaning Key Particularly when fresh milk is fed you have to clean the automatic feeder regularly. When pressing the Cleaning key, the automatic feeder commutes from the automatic mode to the cleaning menu. Press the Automatic key to return to the automatic operating mode.
Page 69: Entering The Figures
Functions of the Cleaning Key 12.1 Entering the Figures Press Arrow Up/Arrow Down and then ENTER in order to enter figures. In case of manual activation of „Cleaning Mixer“, in menu „Cleaning“ you can enter the detergent amount provided that you have previously selected the detergent pump in Setup (see following illu- stration).
Page 70: Selecting The Options
Functions of the Cleaning Key 12.2 Selecting the Options You can only select one of the available options. The selected option is marked by an asterisk in the second line of the display. Press ENTER to change the option. The displayed option starts flashing. Press Arrow Up/ Arrow Down to scroll the available options.
Page 71: Cleaning
Functions of the Cleaning Key 12.3 Cleaning CAUTION! In order to avoid injuries, before carrying out any kind of operation on the mixer, such as e.g. manual evacuation of rinsing water, it is imperative to make the automa- tic feeder currentless by turning the main switch to position „0/OFF“ or by pulling the mains plug.
Page 72: Cleaning The Heat Exchanger
Functions of the Cleaning Key In case the water cannot be drained off via the mixer outlet valve within 2 minutes (the rod electrode is still covered), the alarm message „Emptying Mixer“ is displayed. If neces- sary, check whether the suction hose or the mixer outlet valve are blocked. Evacuate the rinsing water from the mixer jar (refer to above- mentioned safety instruction).
Page 73 Functions of the Cleaning Key For that, the circulation valve to the HE as well as the milk solenoid valve close automati- cally while the milk pump runs. The cleaning process is interrupted as soon as the display shows the fault message „Milk/circulation valve“. Prerinsing During prerinsing the display shows: cleaning HE...
Page 74: Heat Exchanger With Suction Hoses
Functions of the Cleaning Key After heat exchanger cleaning has been completed, the stainless steel coil is filled with water. When a calf that is entitled to get a milk portion enters the feeding station, the water portion in the heat exchanger is delivered into the mixer jar and drained off via the mixer outlet valve.
Page 75 Functions of the Cleaning Key When the mixer is empty, the display shows: cleaning HE/hose ready? In order to prepare the suction hoses to the cleaning process, proceed as follows: Disconnect the suction hoses from the teat. Disconnect the milk hose from the automatic feeder. In case the milk hose should be cleaned too, disconnect it from the milk tank.
Page 76: Air Cleaning
Functions of the Cleaning Key Main rinsing Once you confirm “Cleaning HE/hose, connected?” the main cleaning HE/hose cleaning process starts running. In case the automatic feeder main rinsing is equipped with a detergent pump that you have previously selected in Setup, some detergent is added to the water.
Page 77: Heat Exchanger With Sponge
Functions of the Cleaning Key Press Arrow Down to select submenu „Air cleaning“. air cleaning start? Press ENTER to move to the next screen. Enter the number of air cleaning the box where air cleaning should take place. Press ENTER to *box 1 start cleaning.
Page 78 Functions of the Cleaning Key Close the quick- -acting closure. Press Enter to start the cleaning process. The cleaning sponge is pressed through the stainless steel coil sponge cleaning into the mixer jar by the incoming water. In order to complete taken out? the cleaning process, press Enter to confirm “Sponge Clea- ning, taken out ?”.
Page 79: Settings
Functions of the Cleaning Key 12.4 Settings Menu „Settings“ contains all settings relating to automatic cleaning (with or without deter- gent) of the heat exchanger, the mixer and the suction hoses as well as to air cleaning. 12.4.1 Mixer Cleaning Press Cleaning key and then Arrow Down.
Page 80: He/Hose Cleaning
Functions of the Cleaning Key 12.4.4 HE/Hose Cleaning In „HE/hose cleaning“ you can enter the water amount needed for pre- - and afterrinsing. As soon as a calf has consumed the last portion of its entitlement, 1/4 liter of water is dosed into the mixer jar after draining time has lapsed.
Page 81: Service And Maintenance Of The Automatic Calf Feeder
Service and Maintenance of the Automatic Calf Feeder 13 Service and Maintenance of the Automatic Calf Feeder Always keep the automatic calf feeder clean and dry. Never spray it with water! When the automatic calf feeder runs in milk mode you have to clean it regularly with a cleaning sponge.
Page 82: Carrying Out A Regular Check Routine
Service and Maintenance of the Automatic Calf Feeder Check whether the circulation pump is running or not. The circulation pump switches off automatically 2 minutes after the last portion has been distributed. General function check: - - check calibration values - - measure the temperature of the milk - - make sure that the calves are identified reliably.
Page 83 Service and Maintenance of the Automatic Calf Feeder open the de- -aeration screw of the circulation pump (if available) in order to make the water run out. In case of frost risk: Let the water flow out of the solenoid valves and the pressure reducer. Remove the water inside the stainless steel coil of the heat exchanger by means of compressed air (1 bar).
Page 84: Fault Messages
Fault Messages 14 Fault Messages In case fault messages should occur, in main menu „Diagnosis“ you can control each individual actuator. See chapter 10.6, page 60, „Functions of the Menu Key, Diagnosis“. As soon as a fault message occurs, the green pilot lamp indicating that the automatic feeder is working in the automatic mode goes out.
Page 85: Temperature
Fault Messages 14.3 Temperature When the feeding mode is cut off because the minimum ope- fault rating temperature has fallen below the standard figure, the temp. too low display shows: Check position of the thermostats. Check the heating. Check setting of the minimum operating temperature. See chapter 5.7.1 „Adjusting the thermostats“, page 27.
Page 86: Lack Of Water
Fault Messages After 5 attempts the automatic feeder switches off or commutes to the milk powder mode. In the operating mode the display shows either: fault milk empty milk empty o MP mixer full Fill the milk storage tank and press the Automatic key in order to return to the milk mode. 14.8 Lack of Water When the water does not hit the supply electrode in water mode, the automatic feeder starts a water check.
Page 87: Accessories
Accessories 15 Accessories 15.1 Two- -Group- -Valve- -Unit Thanks to the priority control with two- -group- -valve- -unit, System- -Machines can provide, in succession, two feeding stations with milk, i.e. when a calf with drinking right enters the feeding station the available milk amount for this calf is distributed without interruption while the other feeding station is blocked during this time.
Page 88: Additive Dispenser
Accessories 15.2 Additive Dispenser CAUTION! In order to avoid injuries due to rotating parts on the powder outlet of the additive dispenser, before carrying out any kind of operation on the additive dispenser, it is imperative to make the automatic feeder currentless by turning the main switch to „0/OFF“...
Page 89: Electrical Vapour Screen For Mp-- And Powder Additive Outlet
Accessories 15.4 Electrical Vapour Screen for MP- - and Powder Additive Outlet The electrical vapour screen consists of a heating element located right below the outlet for milk powder resp. powder additive. In case of bad weather conditions, such as e.g. too high atmospheric humidity, the electrical vapour screen should prevent the milk powder and the powder additive from sticking to the outlet.
Page 90: Protection Against Flies
Accessories 15.6 Protection against Flies In case of fly infestation occurring particularly in summer we recommend to protect the mixer jar by means of a large fly screen. Water vapour can escape through the openings of the fly screen. You can attach the fly screen together with the dispenser for powder additives to the automatic calf feeder.
Page 91: Replacement Of The Program Chip
Replacement of the Program Chip 16 Replacement of the Program Chip Refer replacement of the program chip only to qualified personnel. Proceed as follows: 1. Before replacing the program chip, write down all machine settings. To this end, switch the System- -machine off, press the Menu key while switching the machine on once again. Keep the Menu key pressed until the new program version is displayed.
Page 92 Index cleaning key, 68 compressor, 76 accessories, 87 connecting the mains plug, 24 additive dispenser, 88 connection detergent dosing pump, 89 additive dispenser, 88 electrical vapour screen, 89 for milk pipe , 19 fully automatic heat exchanger cleaning, 88 milk pipe, 19 protection against flies, 90 suction hose, 16 two- - group- - valve- - unit, 87...
Page 93 Index heat exchanger, 84 identification, 85 lack of water, 86 keys memory error, 84 Automatic, 65 milk empty, 85 Cleaning, 68 temperature, 85 Menu, 49 fly screen, 15, 90 frost protection, 15 frost risk, 83 lightning protection, 15 function table Menu key, connection to Alcom- - Bus, 63 locating the automatic calf feeder, local electrical con- nection, 15 functioning of the automatic calf feeder, 30...
Page 94 Index shutdown, 82 settings operating elements, 20 air cleaning, 79 keyboard, 20 cleaning, 79 entering the values, 22 detergent, 80 operational control keys, 21 hose cleaning, 80 selecting the options, 23 mixer cleaning, 79 overvoltage, 15 Setup, 32 different selections in Setup, 32 function table, 34 how to make entries, 35 shutdown, 82...
Page 95 Annex EC DECLARATION OF CONFORMITY Förster Technik GmbH Gerwigstr. 25 D- -78234 Engen Tel.:+49- -( 0)7733- -9406- -0 Fax: +49- -(0)7733- -9406- -99 declare that our products with the designation: TAK*- -SM2- -27- -F1 TAP*- -SM2- -27- -F1 VDW*- -SM2- -27- -F1 TAK*- -SM2- -28- -P1 TAP*- -SM2- -28- -P1 VDW*- -SM2- -28- -P1...
Page 97 Automatic Calf Feeders Supplement - keypad guide - improved electrical grounding - wiring diagrams - parts list DairyPlan Calf Feeder, Combi model 7163-9001-044 AU supplement 01.2006...
Page 98 Display Automatic key Function Table of the Menu key with LED Automatic Feeding pump SM 2 Plus Combi/Fresh Milk Cleaning key Menu key (Connection to the VC3- -Bus) Arrow Up Arrow Down (Program Version 01.01) Enter key Please note that the Fresh Milk version will not display the functions relating to milk powder! Menu* Submenus** ***Further Menus...
Page 99 Diagnosis Valves Water valve HE open? Water valve boiler open? Milk valve open? Mixer valve open? Circulation valve open? Air valve open? Box valve 1/2 open? Motors Milk pump start? Mixer start? Powder motor start? Additive dispenser start? Detergent pump start? Feeding pump start? Circulation pump start? Sensors...
Page 100 =LT1 power unit SA2 Plus =LT1-A2 distribution board =LT1-A1 power card in case of problems with the electrode in the mixer jar (the liquid in the mixer jar overflows resp. there is lack of water), install an additional bonding point!
Page 101 mains connection 230V,L/N/PE/50Hz =LV1 power distributor line plug line filter heating minimum operating overheating thermostat temp. thermostat thermostat heating pilot lamp heating 230V/2700W (TAK5-SM2-27-F1 / 230V) 230V/3200W (TAK5-SM2-32-P1) =HE1 heat exchanger...
Page 102 mains connection 400V,3/N/PE/50Hz =LV1 power distributor line plug line filter heating minimum operating thermostat overheating temp. thermostat thermostat heating pilot lamp heating 400V/2700W (TAK5-SM2-27-F1 / 400V) 400V/3800W (TAK5-SM2-38-P1) =HE1 heat exchanger...
Page 103 motherboard motherboard distribution board...
Page 104 motherboard motherboard...
Page 105 motherboard transformer thermostat for frost protection...
Page 106 motherboard motherboard...
Page 107 motherboard motherboard Interface card RS232 for update Interface RS232 for update keyboard display...
Page 108 motherboard VC3-Bus-interface Micro-identification 2 Micro-identification 1 VC3-Bus (IN) VC3-Bus (OUT)
Page 109 =ST1-A1-A1 VC3-Bus-interface interface contrast Flash- plug for board eprom for connection to Bus/identification =ST1-A1 motherboard +12V =ST1-A1-A2 interface card RS232 supply for update +12V 12V REL =ST1-A5 board for connection Bus / identification transformer K11 K10 Connector for Micro-identification plug for connection to VC3-Bus-interface switch on/off switch on/off...
Page 110 Potentiometer to adjust contrast of the display Plug for keyboard Plug for display Flash eprom Connector for update-interface card RS232 Connector for update-cable Interface Electronic card Plug for interface Connector for leakage sensor and detergent sensor Connector for teat sensors Connector for button feeding pump Potentiometer for rod electrode +12V...
Page 111 Ersatzteillisten - spare part lists - für Kälbertränkeautomat for Calf Feeder...
Page 113 Ersatzteilliste 10.02.03 Page/Blatt: 2 spare part lists TAK5-SM2-P1-VC3 40495::40507 Pos. Teile -Nr. B e z e i c h n u n g Item Part-No.: D e s c r i p t i o n Pulverförderung powder supply 3/5 230V Intensivmixer intensive mixer Milch-Wasserversorgung TAK5 2-fach VA-Pumpe o.
Page 115 Ersatzteilliste 10.02.03 Page/Blatt: 3 spare part lists Pulverförderung powder supply 3/5 230V 40320::40320 Die Ersatzteil-Liste stellt die verschiedenen Varianten der o.g. Baugruppe dar. The spare-parts-list shows the different variants of the above-mentioned structural group. Pos. Teile -Nr. B e z e i c h n u n g Item Part-No.: D e s c r i p t i o n...
Page 117 Ersatzteilliste 10.02.03 Page/Blatt: 4 spare part lists Milch-Wasserversorgung TAK5 2-fach VA-Pumpe o. Steckverschr. milk and water supply TAK5, double, stainless steel pump 40352::40352 Die Ersatzteil-Liste stellt die verschiedenen Varianten der o.g. Baugruppe dar. The spare-parts-list shows the different variants of the above-mentioned structural group. Pos.
Page 119 Ersatzteilliste 10.02.03 Page/Blatt: 5 spare part lists Milch-Wasserversorgung TAK5 2-fach VA-Pumpe o. Steckverschr. milk and water supply TAK5, double, stainless steel pump 40352::40352 Die Ersatzteil-Liste stellt die verschiedenen Varianten der o.g. Baugruppe dar. The spare-parts-list shows the different variants of the above-mentioned structural group. Pos.
Page 120 41325 / 09.02 123 / / 75 81 84...
Page 121 Ersatzteilliste 10.02.03 Page/Blatt: 6 spare part lists Milch-Wasserversorgung TAK5/6 milk-water inlet 41325::41325 gültig/valid ab/as of: 01.06.2001 Die Ersatzteil-Liste stellt die verschiedenen Varianten der o.g. Baugruppe dar. The spare-parts-list shows the different variants of the above-mentioned structural group. Pos. Teile -Nr. B e z e i c h n u n g Item Part-No.:...
Page 122 41325 / 09.02 123 / / 75 81 84...
Page 123 Ersatzteilliste 10.02.03 Page/Blatt: 7 spare part lists Milch-Wasserversorgung TAK5/6 milk-water inlet 41325::41325 gültig/valid ab/as of: 01.06.2001 Die Ersatzteil-Liste stellt die verschiedenen Varianten der o.g. Baugruppe dar. The spare-parts-list shows the different variants of the above-mentioned structural group. Pos. Teile -Nr. B e z e i c h n u n g Item Part-No.:...
Page 124 40813 / 01.02...
Page 125 Ersatzteilliste 10.02.03 Page/Blatt: 8 spare part lists Anschlussleitung connecting line 40813::40813 Die Ersatzteil-Liste stellt die verschiedenen Varianten der o.g. Baugruppe dar. The spare-parts-list shows the different variants of the above-mentioned structural group. Pos. Teile -Nr. B e z e i c h n u n g Item Part-No.: D e s c r i p t i o n...
Page 126 40955 / 02.02 102 103 80 81 36 39...
Page 127 Ersatzteilliste 10.02.03 Page/Blatt: 9 spare part lists Wärmetauscher-5 heat exchanger 40955::40955 Die Ersatzteil-Liste stellt die verschiedenen Varianten der o.g. Baugruppe dar. The spare-parts-list shows the different variants of the above-mentioned structural group. Pos. Teile -Nr. B e z e i c h n u n g Item Part-No.: D e s c r i p t i o n...
Page 128 40955 / 02.02 102 103 80 81 36 39...
Page 129 Ersatzteilliste 10.02.03 Page/Blatt: 10 spare part lists Wärmetauscher-5 heat exchanger 40955::40955 Die Ersatzteil-Liste stellt die verschiedenen Varianten der o.g. Baugruppe dar. The spare-parts-list shows the different variants of the above-mentioned structural group. Pos. Teile -Nr. B e z e i c h n u n g Item Part-No.: D e s c r i p t i o n...
Page 130 99262 / 11.02 36 37 17 18 / 19...
Page 131 Ersatzteilliste 10.02.03 Page/Blatt: 11 spare part lists Intensivmixer intensive mixer 99262::99262 Die Ersatzteil-Liste stellt die verschiedenen Varianten der o.g. Baugruppe dar. The spare-parts-list shows the different variants of the above-mentioned structural group. Pos. Teile -Nr. B e z e i c h n u n g Item Part-No.: D e s c r i p t i o n...
Page 132 40520 / 01.02...
Page 133 Ersatzteilliste 10.02.03 Page/Blatt: 12 spare part lists Steuerung control unit 40520::40520 Die Ersatzteil-Liste stellt die verschiedenen Varianten der o.g. Baugruppe dar. The spare-parts-list shows the different variants of the above-mentioned structural group. Pos. Teile -Nr. B e z e i c h n u n g Item Part-No.: D e s c r i p t i o n...
Page 134 40520 / 01.02...
Page 135 Ersatzteilliste 10.02.03 Page/Blatt: 13 spare part lists Steuerung control unit 40520::40520 Die Ersatzteil-Liste stellt die verschiedenen Varianten der o.g. Baugruppe dar. The spare-parts-list shows the different variants of the above-mentioned structural group. Pos. Teile -Nr. B e z e i c h n u n g Item Part-No.: D e s c r i p t i o n...
Page 136 40520 / 01.02...
Page 137 Ersatzteilliste 10.02.03 Page/Blatt: 14 spare part lists Steuerung control unit 40520::40520 Die Ersatzteil-Liste stellt die verschiedenen Varianten der o.g. Baugruppe dar. The spare-parts-list shows the different variants of the above-mentioned structural group. Pos. Teile -Nr. B e z e i c h n u n g Item Part-No.: D e s c r i p t i o n...
Page 139 Ersatzteilliste 10.02.03 Page/Blatt: 15 spare part lists Absperrventil+Spülventil+manue stop valve+rinsing valve+hand-actuated feeding pump TA3/TA5 40476::40476 Die Ersatzteil-Liste stellt die verschiedenen Varianten der o.g. Baugruppe dar. The spare-parts-list shows the different variants of the above-mentioned structural group. Pos. Teile -Nr. B e z e i c h n u n g Item Part-No.: D e s c r i p t i o n...
Page 140 40605 / 10.01...
Page 141 Ersatzteilliste 10.02.03 Page/Blatt: 16 spare part lists Spülmitteldosierpumpe TA5/TA6 detergent dosing pump SA2+/SM2+ Teilenummer: 7163-9983-010 40605::40605 Part-No. : 7163-9983-010 Die Ersatzteil-Liste stellt die verschiedenen Varianten der o.g. Baugruppe dar. The spare-parts-list shows the different variants of the above-mentioned structural group. Pos.
Page 143 Ersatzteilliste 10.02.03 Page/Blatt: 17 spare part lists Zubehör - Beipack TAK/VDW 5/6 Profi included accessories for TAK/VDW 5/6 Profi ::41891 Die Ersatzteil-Liste stellt die verschiedenen Varianten der o.g. Baugruppe dar. The spare-parts-list shows the different variants of the above-mentioned structural group. Pos.

This manual is also suitable for:

7163-9001-046

Westfalia 7163-9001-044 Operating Instructions And Spare Parts List

Quick Links

Need help?

Questions and answers

Related Manuals for Westfalia 7163-9001-044

Summary of Contents for Westfalia 7163-9001-044

This manual is also suitable for:

Table of Contents
