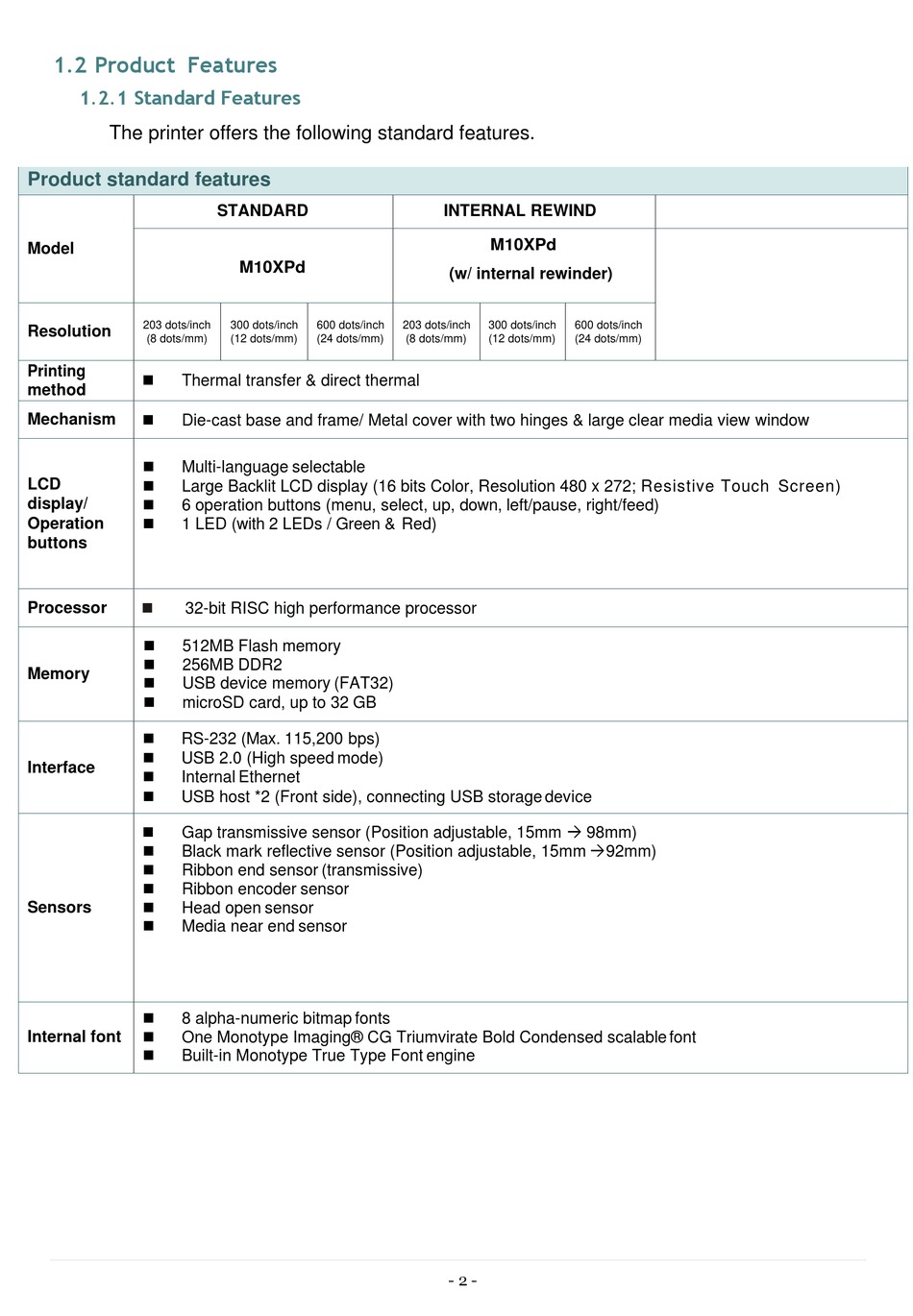

1.2 Product Features

1.2.1 Standard Features
The printer offers the following standard features.
Product standard features
Model
203 dots/inch
Resolution
(8 dots/mm)
Printing
◼
Thermal transfer & direct thermal
method
◼
Mechanism
Die-cast base and frame/ Metal cover with two hinges & large clear media view window
◼
Multi-language selectable
◼
LCD
Large Backlit LCD display (16 bits Color, Resolution 480 x 272; Resistive Touch Screen)
◼
display/
6 operation buttons (menu, select, up, down, left/pause, right/feed)
◼
Operation
1 LED (with 2 LEDs / Green & Red)
buttons
◼
Processor
32-bit RISC high performance processor
◼
512MB Flash memory
◼
256MB DDR2
Memory
◼
USB device memory (FAT32)
◼
microSD card, up to 32 GB
◼
RS-232 (Max. 115,200 bps)
◼
USB 2.0 (High speed mode)
Interface
◼
Internal Ethernet
◼
USB host *2 (Front side), connecting USB storage device
◼ Gap transmissive sensor (Position adjustable, 15mm → 98mm)
◼ Black mark reflective sensor (Position adjustable, 15mm →92mm)
◼
Ribbon end sensor (transmissive)
◼
Ribbon encoder sensor
◼
Sensors
Head open sensor
◼
Media near end sensor
◼
8 alpha-numeric bitmap fonts
◼
Internal font One Monotype Imaging® CG Triumvirate Bold Condensed scalable font
◼
Built-in Monotype True Type Font engine
STANDARD
M10XPd
300 dots/inch 600 dots/inch
(12 dots/mm) (24 dots/mm)
INTERNAL REWIND
M10XPd
(w/ internal rewinder)
203 dots/inch 300 dots/inch 600 dots/inch
(8 dots/mm) (12 dots/mm) (24 dots/mm)
- 2 -
