Ducting Options

spaces between walls, crawl spaces, ceilings, attics, or garages.
►
Use single wall rigid metal ductwork only.
►
Fasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or Duct
Tape.
Titan Use, Care, and Installation Guide
WARNING
Fire Hazard: NEVER exhaust air or terminate ductwork into
All exhaust must be ducted to the outside, unless using the
recirculating option.

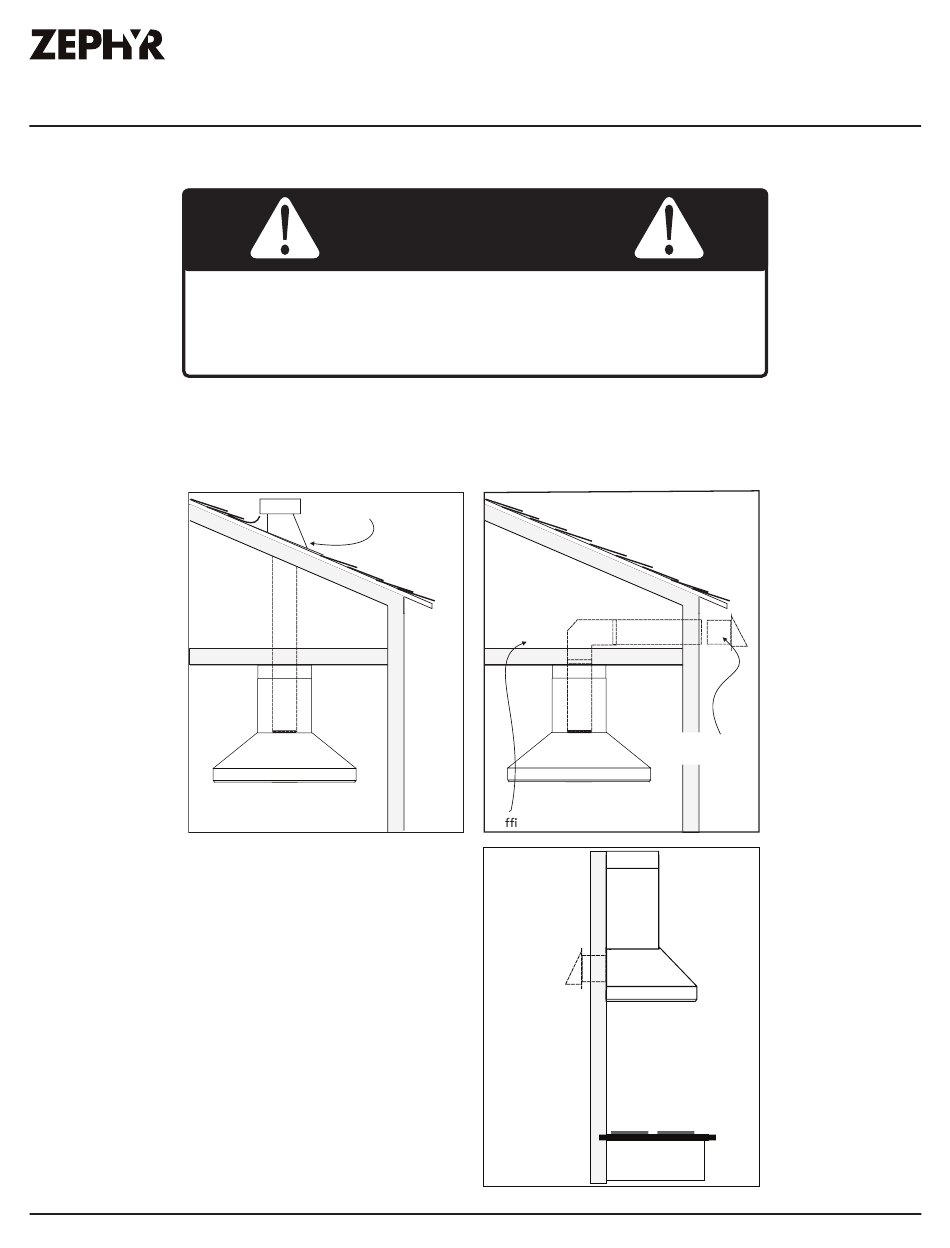

Roof pitch w/
flashing & cap
Installation Instructions
Side wall cap w/
gravity damper
So t or crawl space
Side wall cap w/
gravity damper
