Horizontal and Plumb measurements can use both the bubble vial and the LCD readout features.
Horizontal measurements (Fig.5)
Use the level on horizontal surfaces to true them up. The level's bubble vials will show when you have the surface level. The
bubbles will be exactly in between the marks on the vial.
Once the Power button is turned on, lay the level on the surface you want to level. The LCD display will show the surface you
are measuring as a line either above or below the true level line, and the degree to which the surface is off, with an arrow
showing whether the surface should be raised or lowered in order to be leveled.

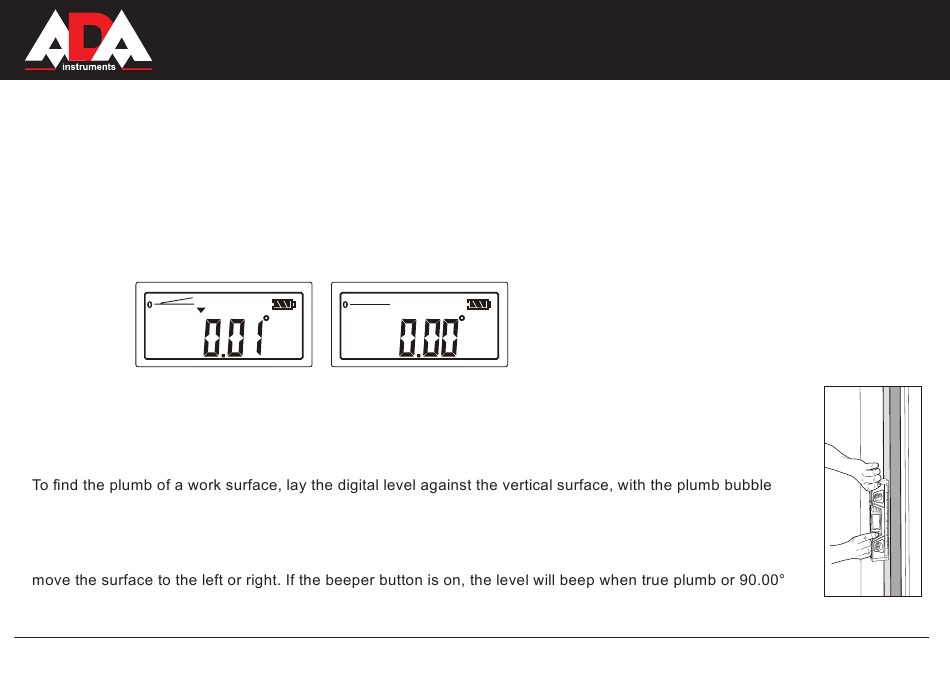

Fig.5
The LCD display also gives the degree to which the surface is off. To level, move the surface with the level on
it until the two lines on the readout match and the readout says 0.00° for the angle. If the beeper is activated,
the beeper will sound when the level is at level.
Vertical measurements (Fig.6)
vial at the top. The surface will be at true plumb when the bubble is positioned exactly between the marks on
the vial.
The LCD display shows the surface with the level on it as a line, and true plumb as another line either to the
left or right of the line for plumb, and the degree to with the surface is off, with an arrow showing whether to
is reached.
Fig.6
