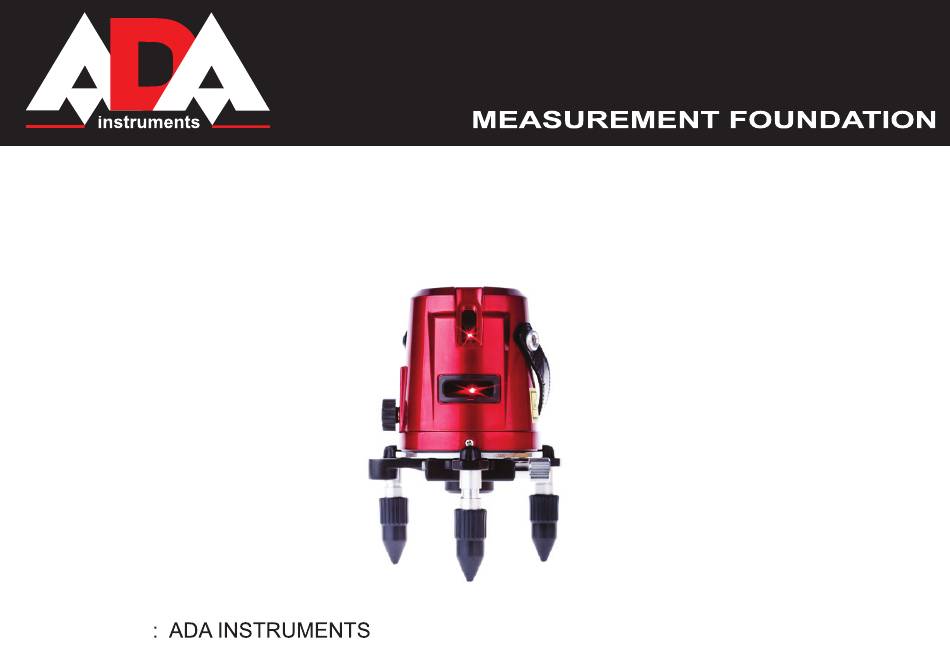

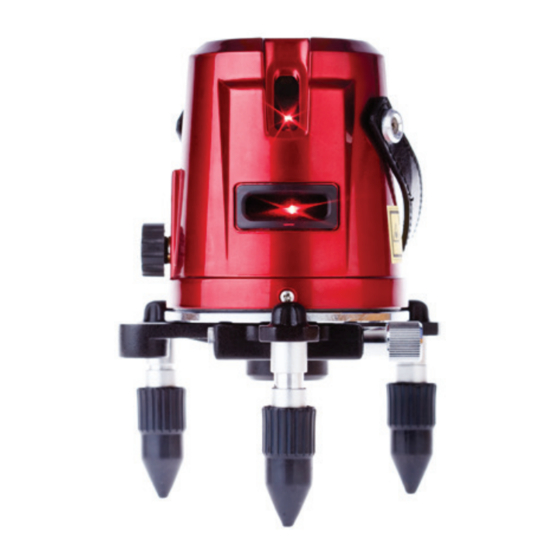

- Page 1 LINER Operating manual Line Laser Model: 3D LINER 2V,3V,4V Manufacturer Address: WWW. ADAINSTRUMENTS.COM...
-
Page 2: Table Of Contents
LINER Table of contents 1. Kit .............3 2. -
Page 3: Kit
LINER ADA 3D LINER 2V,3V,4V, aluminum carrying case, laser glasses, alkaline batteries, target, operating manual. Applications With ADA 3D LINER you can take horizontal and vertical marking. You can use the instrument inside and outside. Spesifications Laser beam 2V/3V/4V1H1D Light sources... -
Page 4: Functional Description
LINER Functional description 1. 2, 3 or 4 vertical lines (the quantity of lines depend on the model of the instrument), 1 horizontal line, plumb down. 2. Can be used both for operation indoor and outdoor. Use the receiver for outdoor operation up to 40 m. 3. -
Page 5: Laser Lines
LINER Laser lines MEASUREMENT FOUNDATION... -
Page 6: Features
LINER Features Carry belt Power switch Vertical laser window Horizontal laser window Adjusting legs Circular level Fine adjustment MEASUREMENT FOUNDATION... -
Page 7: Keypad
LINER Keypad Indoor/outdoor key (D) V laser lines switch Detector LED Power LED MEASUREMENT FOUNDATION... -
Page 8: Operation
LINER Operation Take out the battery lid. According the sign “ + ,-”, insert four alkaline batteries or rechargeable batteries to the battery socket, then cover the battery lid. Set up the instrument on the floor or the tripod. When using tripod, put the bottom part of the instrument on the tripod. -
Page 9: To Check The Accuracy Of Cross Line Laser
LINER TO CHECK THE ACCURACY OF LINE LASER LEVEL Set up the instrument between two walls, the distance is 5 m.Turn on the Line Laser and mark the point of cross laser line on the wall. Set up the instrument 0,5-0,7m away from the wall and make, as described above, the same masrks. If the difference {a1-b2} and {b1-b2} is less then the value of “accuracy”... -
Page 10: To Check Level
LINER TO CHECK LEVEL Choose a wall and set laser 5M away from the wall. Turn on the laser and cross laser line is marked A on the wall.Find another point M on the horizontal line, the distance is around 2.5m. Swivel the laser, and another cross point of cross laser line is marked B. -
Page 11: To Check Plumb
LINER TO CHECK PLUMB Choose a wall and set laser 5m away from the wall. Mark point A on the wall, please note the distance from point A to ground should be 3m. Hang a plumb line from A point to ground and find a plumb point B on ground. turn on the laser and make the vertical laser line meet the point B, along the vertical laser line on the wall and measure the distance 3m from point B to another point C. -
Page 12: Electromagnetic Acceptability
LINER ELECTROMAGNETIC ACCEPTABILITY (EMC) • It cannot be completely excluded that this instrument will disturb other instruments (e.g. navigation systems); • will be disturbed by other instruments (e.g. intensive electromagnetic radiation nearby industrial facilities or radio transmitters). Laser class 2 warning labels on the laser instrument. MEASUREMENT FOUNDATION... -
Page 13: Laser Classification
LINER LASER CLASSIFICATION The instrument is a laser class 2 laser product accortding to DIN IEC 60825-1:2007. It is allowed to use unit without further safety precautions. SAFETY INSTRUCTIONS Please follow up instructions given in operators’ manual. Do not stare into beam. Laser beam can lead to eye injury (even from greater distances). Do not aim laser beam at persons or animals. -
Page 14: Exceptions From Responsibility
LINER to this product if it has been misused, abused or altered. Withiut limiting the foregoing, leakage of the battery, bending or dropping the unit are presumed to be defects resulting from misuse or abuse. EXCEPTIONS FROM RESPONSIBILITY The user of this product is expected to follow the instructions given in operators’ manual. Although all instruments left our warehouse in perfect condition and adjustment the user is expected to carry out periodic checks of the product’s accuracy and general performance. - Page 15 WARRANTY DOESN’T EXTEND TO FOLLOWING CASES: 1. If the standard or serial product number will be changed, erased, removed or wil be unreadable. 2. Periodic maintenance, repair or changing parts as a result of their normal runout. 3. All adaptations and modifications with the purpose of improvement and expansion of normal sphere of product ap- plication, mentioned in the service instruction, without tentative written agreement of the expert provider.
-
Page 16: Appendix 2- "Warranty Card
WARRANTY CARD Name and model of the product ________________________________________________ Serial number ________________date of sale_______________________ Name of commercial organization _____________________stamp of commercial organization Warranty period for the instrument explotation is 24 months after the date of original retail purchase. During this warranty period the owner of the product has the right for free repair of his instrument in case of manufacturing defects. Warranty is valid only with original warranty card, fully and clear filled (stamp or mark of thr seller is obligatory). - Page 17 MEASUREMENT FOUNDATION WWW.ADAINSTRUMENTS.COM...
