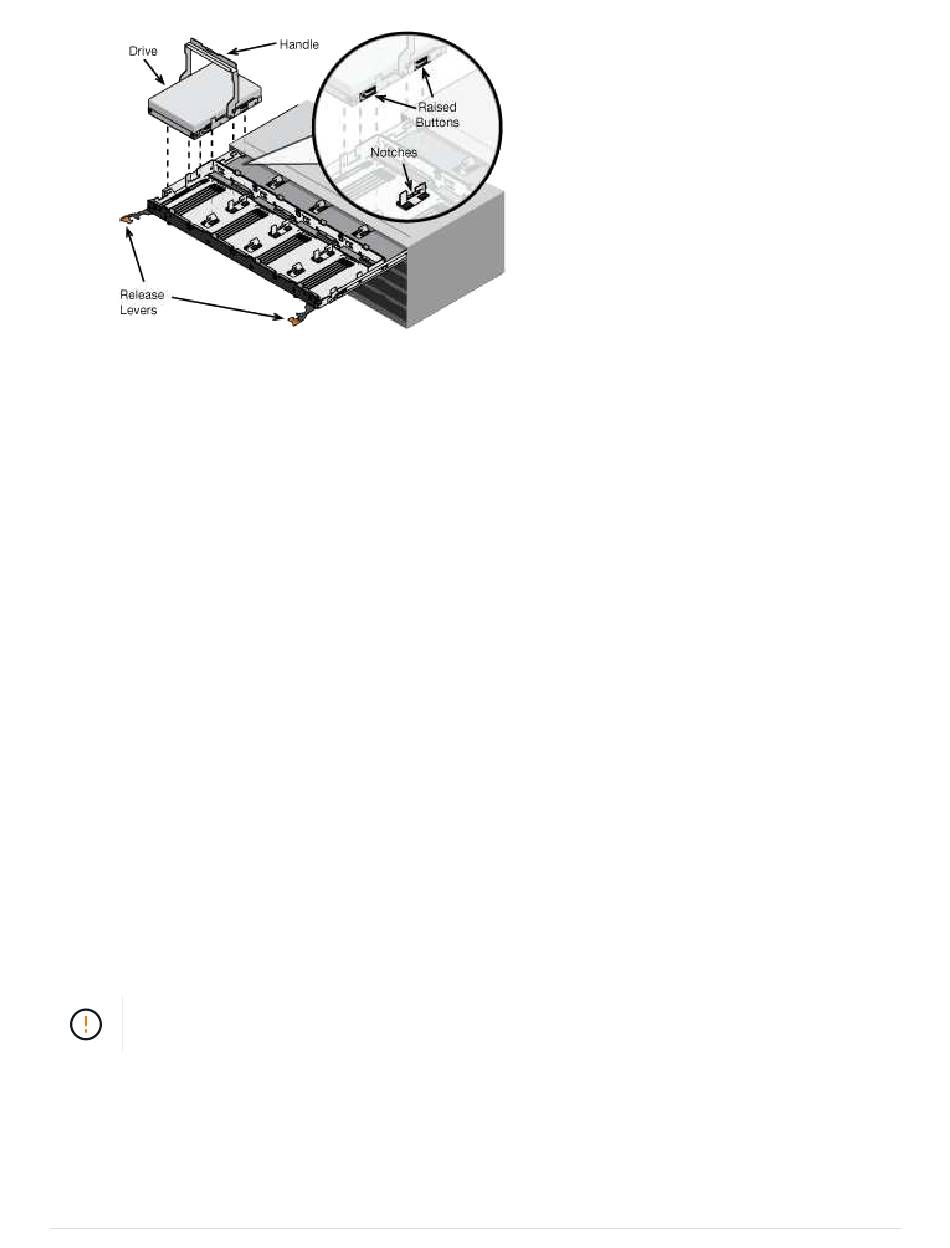

d. Pressing gently on the top of the drive, rotate the drive handle down until the drive snaps into place.
e. After installing the first 12 drives, slide the drawer back in by pushing on the center and closing both
levers gently.
f. Repeat these steps for the other four drawers.
6. Attach the front bezel.

Cable appliance (SG5700)

You must connect the two controllers to each other, connect the management ports on
each controller, and connect the 10/25-GbE ports on the E5700SG controller to the Grid
Network and optional Client Network for StorageGRID.
What you'll need
• You have unpacked the following items, which are included with the appliance:
◦ Two power cords.
◦ Two optical cables for the FC interconnect ports on the controllers.
◦ Eight SFP+ transceivers, which support either 10-GbE or 16-Gbps FC. The transceivers can be used
with the two interconnect ports on both controllers and with the four 10/25-GbE network ports on the
E5700SG controller, assuming you want the network ports to use a 10-GbE link speed.
• You have obtained the following items, which are not included with the appliance:
◦ One to four optical cables for the 10/25-GbE ports you plan to use.
◦ One to four SFP28 transceivers, if you plan to use 25-GbE link speed.
◦ Ethernet cables for connecting the management ports.
Risk of exposure to laser radiation — Do not disassemble or remove any part of an SFP
transceiver. You might be exposed to laser radiation.
About this task
The figure shows the two controllers in the SG5760, with the E2800 controller on the top and the E5700SG
controller on the bottom. In the SG5712, the E2800 controller is to the left of the E5700SG controller when
viewed from the back.
