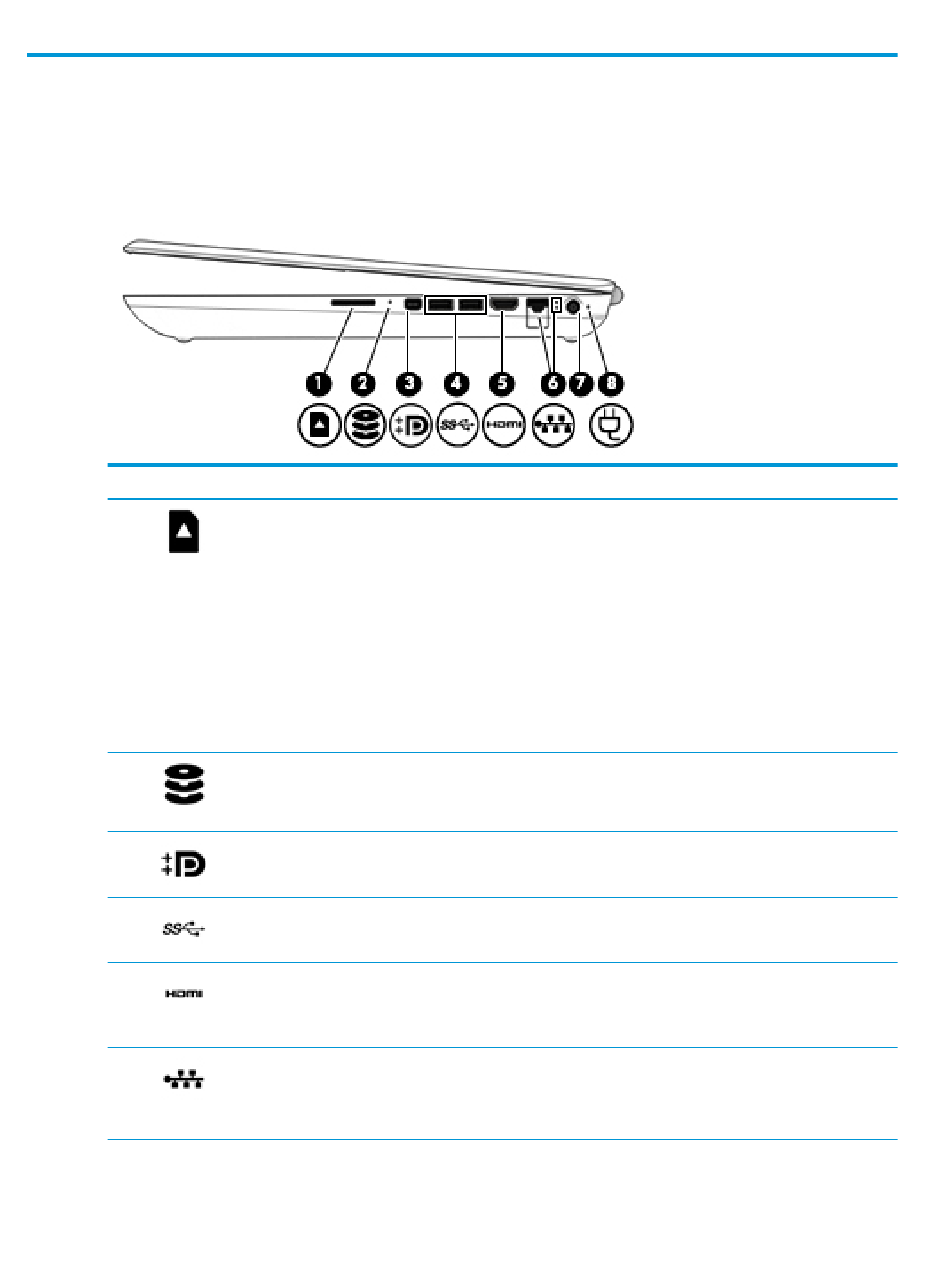

External component identification

Right side

Component
(1)
(2)
(3)
(4)
(5)
(6)
4 Chapter 2 External component identification
Memory card reader
Drive light (select products only)
Mini Dual-Mode DisplayPort
USB 3.0 ports (2)
HDMI port
RJ-45 (network) jack/status lights
Description
Reads optional memory cards that enable you to store, manage,
share, or access information.
To insert a card:
Hold the card label-side up, with connectors facing the
1.
computer.
2. Insert the card into the memory card reader, and then
press in on the card until it is firmly seated.
To remove a card:
Press in on the card, and then remove it from the memory
▲
card reader.
● Blinking white: The hard drive is being accessed.
● Amber: HP 3D DriveGuard has temporarily parked the hard
drive (select products only).
Connects an optional digital display device, such as a high-
performance monitor or projector.
Connect an optional USB device, such as a keyboard, mouse,
external drive, printer, scanner or USB hub.
Connects an optional video or audio device, such as a high-
definition television, any compatible digital or audio component,
or a high-speed High-Definition Multimedia Interface (HDMI)
device.
Connects a network cable.
● White: The network is connected.
Amber: Activity is occurring on the network.
●
