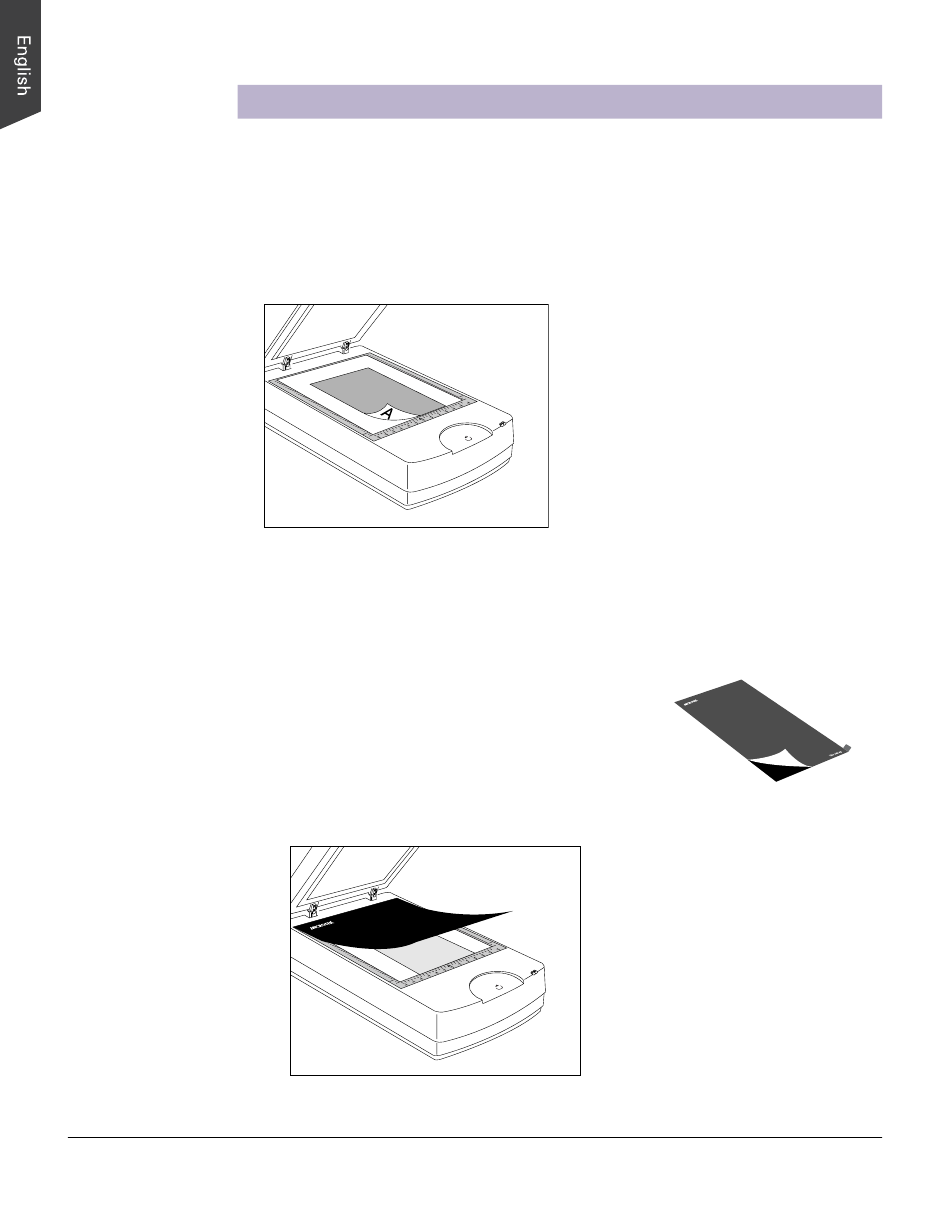

Positioning Reflective Originals - Microtek ScanMaker 9800XL Plus User Manual

To scan reflective originals such as photos, you can use the ScanMaker 9800XL
Plus with or without the TMA 1600-III.
A. If you purchased your ScanMaker 9800XL Plus without the TMA 1600-III,
B. If you purchased your ScanMaker 9800XL Plus with the TMA 1600-III, you will
8 ScanMaker 9800XL Plus User Guide

Positioning Reflective Originals

simply lift the scanner lid, and place the reflective original to be scanned on the
scanner glass surface. Center the original along the U-shaped ruler on the
scanner.
need to use the Black Plate included with your TMA 1600-III package to shield
unwanted light.
1. Place the reflective original face down on the scanner glass surface. Center
the original along the U-shaped ruler on the scanner.
2. Peel the protective film from the Black Plate.
3. Put the Black Plate on top of the reflective
photo to be scanned, so that the Plate covers
the photo. The side of the Black Plate that reads
"This side up" should be facing up.
4. Gently lower the TMA 1600-III down onto the scanner glass surface.
