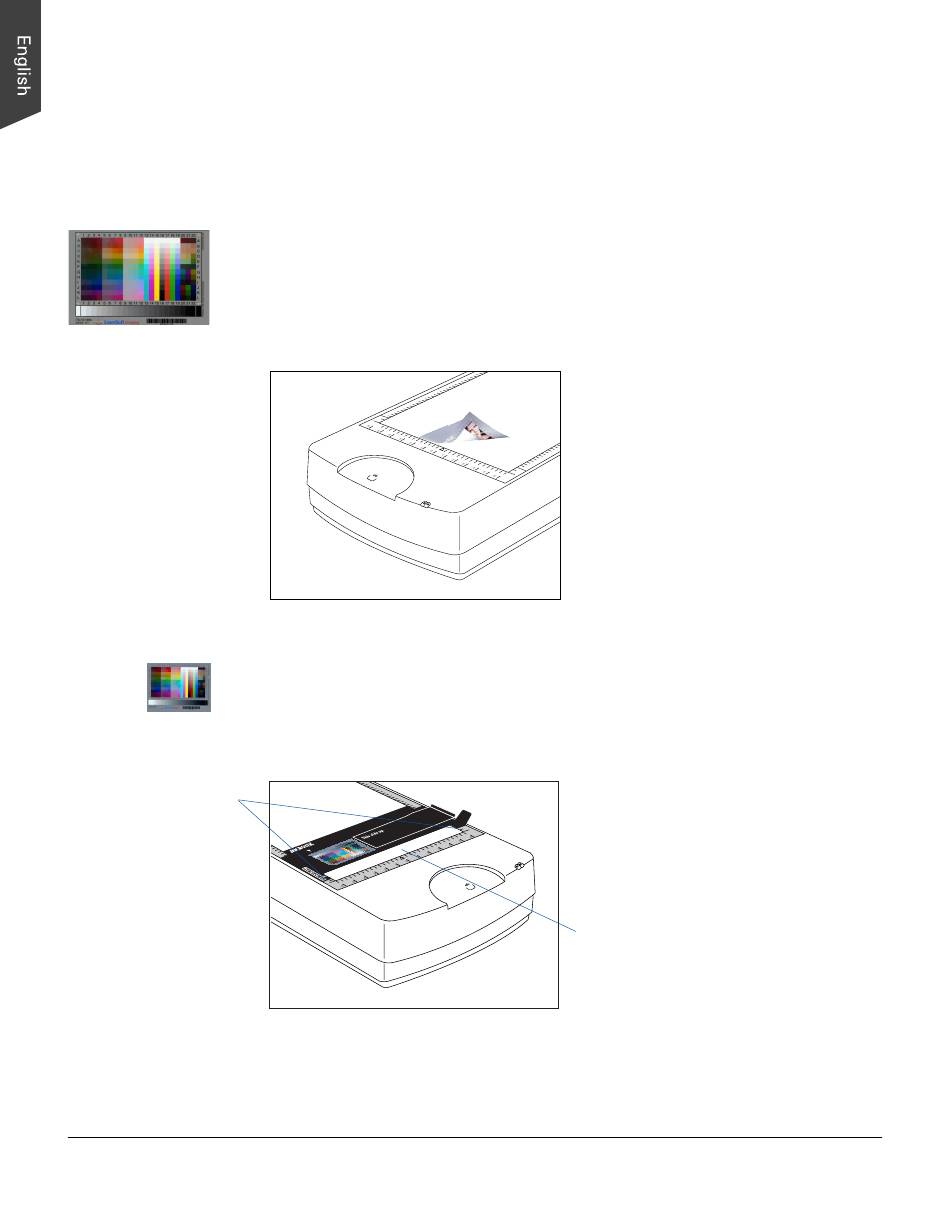

Positioning the Target

Proper positioning of the target on the scanner is important for successful calibration.
Incorrect positioning of the target will result in an unsuccessful calibration.
A. Positioning the Reflective Target
1. Place the target face down on the scanner glass surface, making sure that the
2. Using the U-shaped ruler as a point of reference, adjust the target so that it is
B. Positioning the Transparent Target
1. Load the target face down inside the slot of the 120 Film Template.
2. Place the 120 Film Template with the loaded target on the scanner glass surface,
Important: Align the
template's front
corners firmly against
the top corners (left
and right) of the U-
shaped ruler, located
at the front of the
scanner.
32 ScanMaker 9800XL Plus User Guide
target is positioned correct side up toward the front of the scanner.
positioned at the center of the scanner glass bed.
and orient the template with the "Microtek" logo facing up.
Note: To scan the target
with the TMA 1600-III, put the
Black Plate on top of the
target to cover the target and
shield unwanted light.
Keep calibration strip clear
and free of any obstruction
