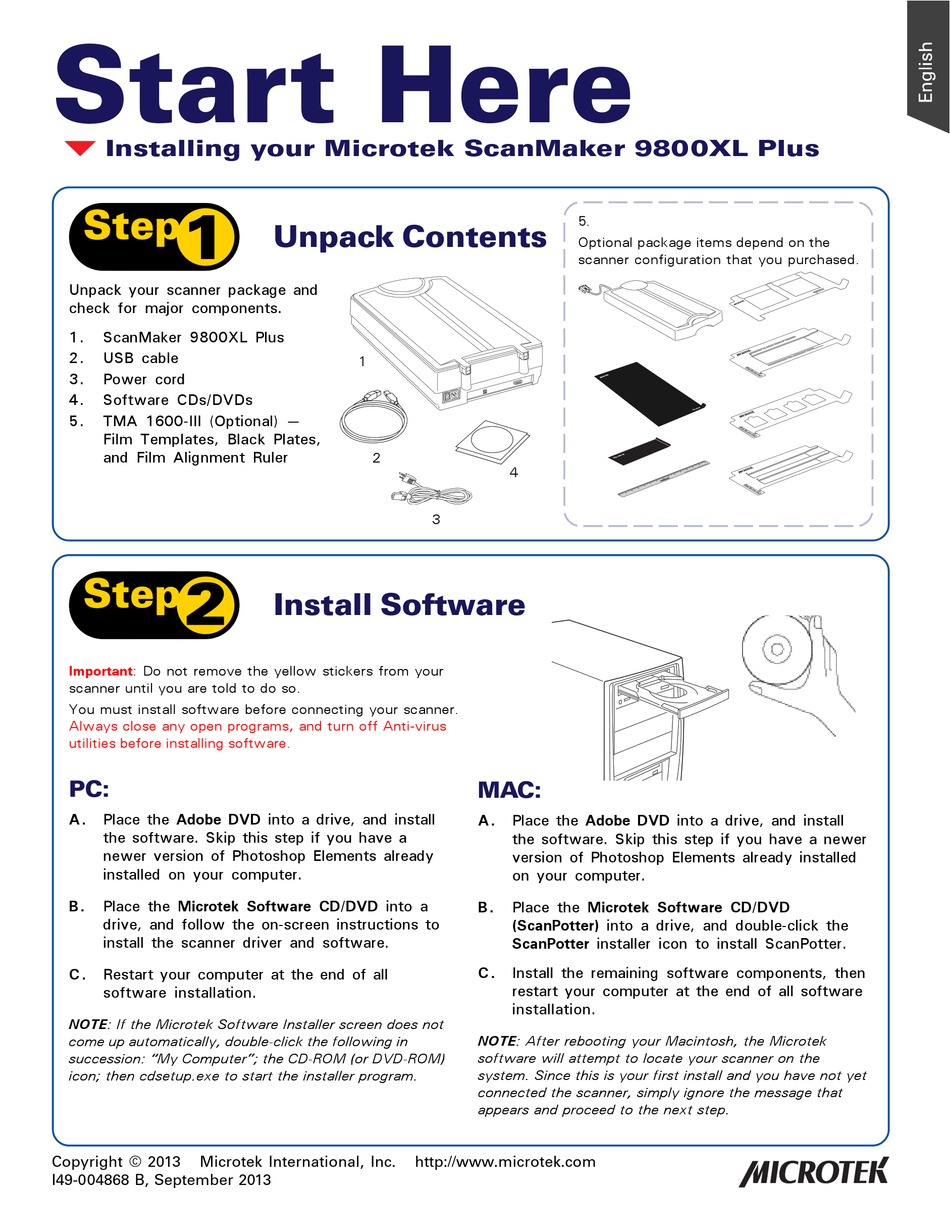

Start Here
Installing your Microtek ScanMaker 9800XL Plus
Step 1:
Unpack your scanner package and
check for major components.
1.
ScanMaker 9800XL Plus
2.
USB cable
3.
Power cord
4.
Software CDs/DVDs
5.
TMA 1600-III (Optional) —
Film Templates, Black Plates,
and Film Alignment Ruler
Step 2:
Important: Do not remove the yellow stickers from your
scanner until you are told to do so.
You must install software before connecting your scanner.
Always close any open programs, and turn off Anti-virus
utilities before installing software.
PC:
A.
Place the Adobe DVD into a drive, and install
the software. Skip this step if you have a
newer version of Photoshop Elements already
installed on your computer.
B.
Place the Microtek Software CD/DVD into a
drive, and follow the on-screen instructions to
install the scanner driver and software.
C.
Restart your computer at the end of all
software installation.
NOTE: If the Microtek Software Installer screen does not
come up automatically, double-click the following in
succession: "My Computer"; the CD-ROM (or DVD-ROM)
icon; then cdsetup.exe to start the installer program.
Copyright © 2013
Microtek International, Inc.
I49-004868 B, September 2013
Unpack Contents
1
2
3
Install Software
http://www.microtek.com
5.
Optional package items depend on the
scanner configuration that you purchased.
4
MAC:
A.
Place the Adobe DVD into a drive, and install
the software. Skip this step if you have a newer
version of Photoshop Elements already installed
on your computer.
B.
Place the Microtek Software CD/DVD
(ScanPotter) into a drive, and double-click the
ScanPotter installer icon to install ScanPotter.
C.
Install the remaining software components, then
restart your computer at the end of all software
installation.
NOTE: After rebooting your Macintosh, the Microtek
software will attempt to locate your scanner on the
system. Since this is your first install and you have not yet
connected the scanner, simply ignore the message that
appears and proceed to the next step.
1
