Component Identification; Test Rig; Flow Meter Assembly; Syringe Assembly - Neutronics QUICK DETECT Operation Manual

1
C
OMPONENT

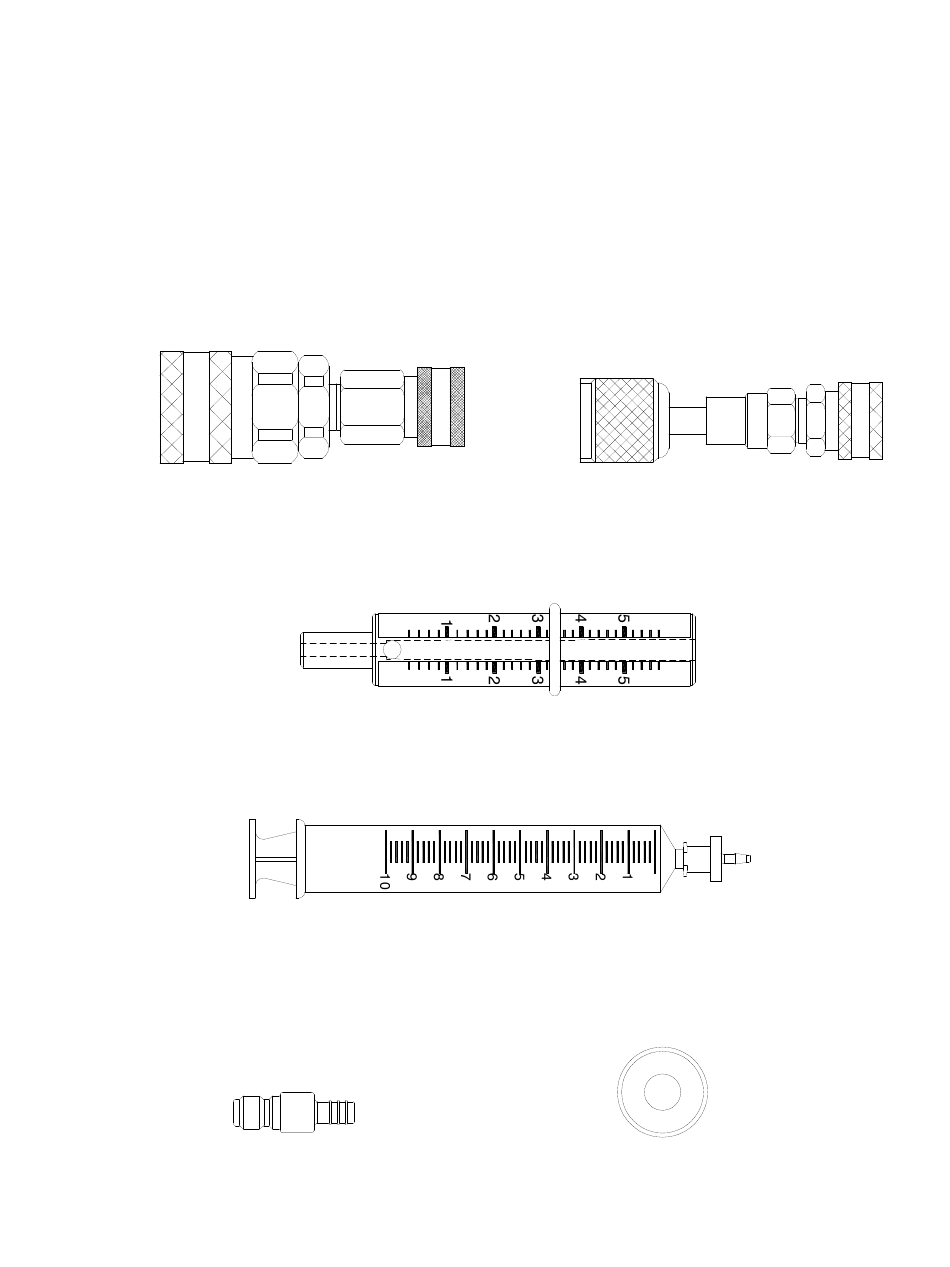

1.1

Test Rig

Provides connection of sensing plug to the high
based A/C systems.
R134a Test Rig
1.2

Flow Meter Assembly

Provides visu al indication of refrigerant leak flow rate.
1.3

Syringe Assembly

Provides method for injection of water into sensing plugs ends
1.4 Sensing Plug & Safety Cap
Sensing Plug provides seal
refriger ant from test rig.
Sensing Plug (10)
Manual Part Number:
5-06-7000-62-0
I
DENTIFICATION
ant detection function
Manual File:
MN-A-0001 Rev. E

Component Identification

si de or liquid service port of R134a or R12
R12 Test Rig
. Safety cap prevents accidental release
Safety Cap
Revision Date: June 5, 2006
of
Page 1-1
