- Page 1 ® YELLOW JACKET Refrigerant Identifier OPERATION MANUAL Part Numbers: 68945 68947 68948 Manufactured by: 456 Creamery Way, Exton, PA 19341 Phone: 610.524.8800 • Fax: 610.524.8807 • Email: info@neutronicsinc.com www.neutronicsinc.com...
-
Page 3: Table Of Contents
Table of Contents TABLE OF CONTENTS............III FOR YOUR SAFETY:............V IDENTIFIER WARNINGS............V GENERAL CAUTIONS............VI WELCOME..............VII INTRODUCTION AND OVERVIEW ........1-9 ............1-9 ENERAL ............1-10 EATURES ID C ..........1-11 LTIMA OMPONENTS 1.3.1 Ultima ID Base Unit.......... 1-11 1.3.2 R134a Sample Hose.......... - Page 4 ..........3-10 ATTERY ARNING ............ 3-10 RROR ESSAGES APPENDICES ............ 4-12 ........... 4-12 PARE ARTS B - S .......... 4-12 PPENDIX PECIFICATIONS APPENDIX E – W ..........4-14 ARRANTY...
-
Page 5: For Your Safety
For Your Safety: PLEASE READ THIS MANUAL ENTIRETY BEFORE ATTEMPTING INSTALLATION OPERATION! Attempting operate the Ultima ID without fully understanding its features and functions may result in unsafe conditions • Always protective wear observe proper safety procedures when working with pressurized gases. Read and understand the entire manual BEFORE attempting to operate the instrument. -
Page 6: General Cautions
General Cautions • Always inspect the sample hose before each use. Replace the hose if it appears cracked, frayed, obstructed or fouled with oil. • ALWAYS turn compressor automobile engine before connecting the instrument to an air conditioning system. • Always wear skin... -
Page 7: Welcome
This work is protected under Title 17 of the US Code and is the sole property of Neutronics Inc. No part of this document may be copied or otherwise reproduced, or stored in any electronic information retrieval system, except as specifically permitted under US copyright law, without the prior written consent of Neutronics Inc. -
Page 9: General
The substitute refrigerant blends can also introduce a flammability hazard to the technician and the ultimate end user of the vehicle air conditioning system. The Neutronics Ultima ID Refrigerant Identifier will provide a fast, easy accurate means... -
Page 10: Features
(Model RI-2004DXP) is available to print on-the-spot customer confidence receipts. The Neutronics Ultima ID Refrigerant Identifier will provide the refrigerant technician with absolute knowledge of refrigerant purity... -
Page 11: Ultima Id C

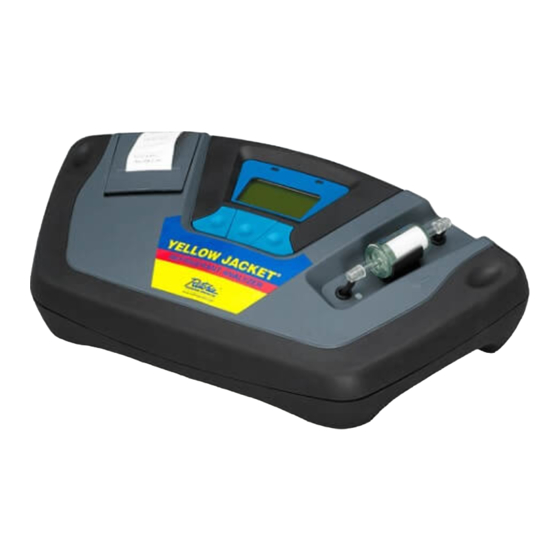

1.3 Ultima ID Components 1.3.1 Ultima ID Base Unit The Ultima Id base unit houses the Graphic Display, Infrared Bench, Electrical Connections, Optional Printer Module. These components require maintenance, therefore there serviceable components internal to the instrument, and disassembly will void the warranty. Sample Filter Control Panel Printer Door... -
Page 12: R12 Sample Hose
1.3.3 R12 Sample Hose Identifier End Service End (1/4 SAE Flare Nut) The 6-foot (1.8 meter) R12 Sample Hose is constructed of a nylon inner tube and a polyurethane outer tube. The inner tube will handle all of the refrigerant transfer and will provide containment up to 300psig. -
Page 13: Control Panel
1.3.6 Control Panel The Control Panel serves as the main user interface. The Control Panel features three soft key buttons that change their function as the instrument changes modes. The current function for each button is displayed by the soft key label at the bottom of the graphic display. -
Page 14: Hard Shell Storage/Carrying Case
1.3.8 Hard Shell Storage/Carrying Case The hard shell storage/carrying case is custom fit to the Ultima ID. provides rugged protection instrument well convenient storage for all components. The enclosure is general purpose and is not watertight. -
Page 15: First Use
Miscellaneous Refrigerant Equipment 12 VDC, 1A; Design Pressure: 300 psig Refrigerant Type: R-12, R-134a Design Pressure: 300 psig NEUTRONICS INC. MODEL No: UID 456 Creamery Way, Exton, PA, 19431 USA (610) 524-8800, www.NeutronicsInc.com WARNING-TO REDUCE THE RISK OF FIRE: DO NOT USE THIS EQUIPMENT IN THE VICINITY OF SPILLED OR OPENED CONTAINERS OF GASOLINE. -
Page 16: Unit
Note: Charge the battery for a minimum of 4 hours with the supplied charger prior to first use. To remove the battery, simply tug gently on the nylon strap, being sure to pull straight up, until the battery is dislodged. 2.2 Turning On the Unit Connect the supplied vehicle power cable to the 12VDC power input jack on the back of the unit. - Page 17 CALIBRATING - CALIBRATING - CALIBRATION TIME NOTE HAS EXPIRED THIS WILL ONLY REPLACE FILTER DISCONNECT HOSE TAKE 30 SECONDS WHEN WHITE FROM VEHICLE AND ELEMENT BEGINS PRESS CAL TO TO SHOW RED RECALIBRATE SPOTS ON OUTSIDE DIAMETER Figure 5 Figure 6 Figure 4 After calibrating, the unit will display the screen shown in Figure Connect the hose to the vehicle, (for R134a open the valve) and...
- Page 18 If the refrigerant tested is 98% pure or better, and the air content is less than 90%, the “PASS” screen will display and the Green LED will illuminate. Should the refrigerant be less than 98% pure or the air content greater than 90%, the “FAIL” screen will display and the Red LED will illuminate.
-
Page 19: Efrigerants
2.5 Blend Refrigerants The Ultima ID includes the “Blend ID” feature for determining the presence of EPA S.N.A.P approved blend refrigerants. In the event that the Ultima ID determines that the refrigerant in the system or cylinder is possibly a S.N.A.P. blend, the results will display as follows Figures Note... - Page 20 N e u t r o n i c s , I n c . N e u t r o n i c s , I n c . N e u t r o n i c s , I n c . N e u t r o n i c s , I n c .
-
Page 21: Maintenance & Troubleshooting
& T AINTENANCE ROUBLESHOOTING 3.1 Setting the Elevation During the initial power-up, the Ultima ID will indicate that the elevation has not been set. To set the elevation, press the “Help” button on the “Ready to Air Cal” screen as shown in Section 2.2, Figure 3. - Page 22 3.2 Setting the LCD Contrast The Ultima ID features an adjustable LCD contrast for use in varying light conditions. To adjust the contrast, press the “HELP” button on the “Ready to Air Cal” screen as shown in Section 2.2, Figure 3. The screen will display several options as shown in Figure 17.
- Page 23 Obtain a replacement filter, part number 6-02-6000-08-0. Remove the existing filter from the retaining clip of the instrument by pulling straight up and out. CAREFULLY remove the flexible, black rubber tubing connections from both ends of the existing filter. DO NOT allow the tubes to slip back into the internal portion of the case.
- Page 24 In the unlikely event that an “Error” message is displayed on the screen, power off the unit, take it to a location outside of the shop environment where fresh air is available and turn the unit back “Error” message reappears, contact service department for assistance. Neutronics Inc.
- Page 25 456 Creamery Way Exton, PA 19341 Ph: 800-378-2287 x 123 or 610-524-8800 x 123 Fax: 610-524-8800...
-
Page 26: Sample Filter
PPENDICES 4.1 Spare Parts List PART NUMBER DESCRIPTION R134a Tank Adapter Fitting 4-03-5004-07-0 R134a Sample Hose 6-02-6000-09-0 R12 Sample Hose 6-02-6000-02-0 Vehicle Power Cable 6-01-6001-08-0 Sample Filter (5 Pack) 6-02-6000-08-1 Battery Kit (Optional) 6-02-6001-04-1 Spare Battery 6-02-6001-04-0 Printer Upgrade (Factory Installation Only) 6-01-6001-10-0 Printer Paper Roll (Sold in Quantities of 10 5-03-1000-08-0... - Page 27 This instrument has not been design certified for contaminate detection of R124 or R142b.
- Page 28 (1) one year from the date that the goods are shipped to the buyer. THE SOLE LIABILITY OF NEUTRONICS FOR ALL PURPOSES SHALL BE TO REPAIR OR REPLACE, AT THE SOLE OPTION OF NEUTRONICS, DEFECTS APPEARING WITHIN THE (1) ONE YEAR PERIOD.
- Page 29 Appendix E – Warranty The terms of these warranty provisions shall apply to all products sold by Neutronics, except filters which are considered “consumable items,” such covered terms these warranties. No waiver, alteration or modification of the terms of these provisions shall be valid unless in writing and signed by an executive officer of NEUTRONICS.
