- Page 1 Ultima ID Pro Thank you for purchasing the .™ Proper registration will enable us to send you periodic notification of product updates and other important announcements. Registering your product will also allow us to contact you in the unlikely event that it will need adjustment or modification.
- Page 2 Manual Part Number: Manual File: Revision Date: December 8, 2010 Page 1-2 5-06-7000-70-0 MN-A-0190 Rev. D...
- Page 3 ULTIMA ID PRO™ Model RI-700H HVAC/R REFRIGERANT ANALYZER OPERATION MANUAL Manual Part Number: 5-06-7000-70-0 Manual File MN-A-0190 Rev. D Revised: December 8, 2010 Manual Part Number: Manual File: Revision Date: December 8, 2010 Page 1-3 5-06-7000-70-0 MN-A-0190 Rev. D...
-
Page 5: Table Of Contents
Table of Contents TABLE OF CONTENTS ..............................V FOR YOUR SAFETY: ..............................VI ANALYZER WARNINGS ............................. VI WELCOME ................................VIII INTRODUCTION AND OVERVIEW ........................1-9 ............................... 1-9 ENERAL ..............................1-10 EATURES ID P ........................ -
Page 6: For Your Safety
For Your Safety: PLEASE READ THIS MANUAL IN ITS ENTIRETY BEFORE ATTEMPTING INSTALLATION OR OPERATION! Attempting to operate the Ultima ID Pro without fully understanding its features and functions may result in unsafe conditions • Always use protective eye wear and observe proper safety procedures when working with pressurized gases. - Page 7 General Cautions • Always inspect the sample hose before each use. Replace the hose if it appears cracked, frayed, obstructed or fouled with oil. • ALWAYS turn the compressor off before connecting the instrument to an air conditioning system. • Always wear eye and skin protection when working with refrigerants.
-
Page 8: Welcome
Copyright ©2010 Neutronics Inc. This work is protected under Title 17 of the US Code and is the sole property of Neutronics Inc. No part of this document may be copied or otherwise reproduced, or stored in any electronic information retrieval system, except as specifically permitted under US copyright law, without the prior written consent of Neutronics Inc. -
Page 9: Introduction And Overview

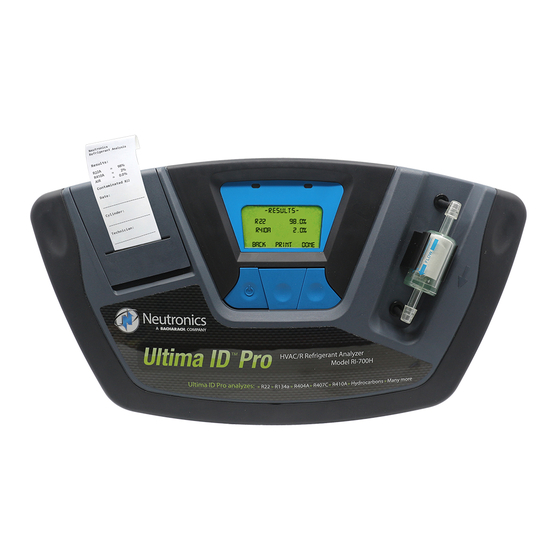

The Neutronics Ultima ID Pro Refrigerant Analyzer provides a fast, easy and accurate means to determine refrigerant purity in refrigerant storage cylinders or directly in air conditioning systems. The instrument utilizes non-dispersive infrared (NDIR) technology to determine the weight concentrations multiple of refrigerant types. -
Page 10: Features
Features The Ultima ID Pro Refrigerant Analyzer is the most advanced portable instrument ever manufactured for determining the purity of gaseous refrigerants for the HVAC-R market. Features Include: • Advanced ergonomic design • Rugged rubberized hand grips • Large graphic display with on-screen instructions •... -
Page 11: Ultima Id Pro Components
Ultima ID Pro Components Ultima ID Pro Base Unit The Ultima ID Pro base unit houses the Graphic Display, Infrared Bench, Electrical Connections, and Optional Printer Module. These components require no maintenance, therefore there are no serviceable components internal to the instrument, and disassembly will void the warranty. Sample Filter Control Panel Printer... -
Page 12: Ac Power Adapter
High Side Liquid Sample Hose Analyzer End Service End (1/4 SAE Flare Nut) The 6-foot (1.8 meter) High Side Sample Hose is constructed of a polyurethane tube with an oil reservoir. A Brass flow restrictor acts to transform Liquid refrigerant to Vapor at the sample connection point while the Oil Trap Syringe collects oil and provides a means of expulsion after the test is complete. -
Page 13: Control Panel
Control Panel The Control Panel serves as the main user interface. The Control Panel features three soft key buttons that change their function as the instrument changes modes. The current function for each button is displayed by the soft key label at the bottom of the graphic display. Red and Green LED’s at the top of the Control Panel are used for visual status indications. -
Page 14: Hard Shell Storage/Carrying Case
Hard Shell Storage/Carrying Case The hard shell storage/carrying case is custom fit to the Ultima ID Pro. It provides rugged protection for the instrument as well as convenient storage for all components. The enclosure is general purpose and is not watertight. Manual Part Number: Manual File: Revision Date: December 8, 2010... -
Page 15: Ultima Id Pro Operation
Miscellaneous Refrigerant Equipment 12 VDC, 1A; Design Pressure: 300 psig Refrigerant Type: R-12, R-134a Design Pressure: 300 psig NEUTRONICS INC. MODEL No: UID 456 Creamery Way, Exton, PA, 19431 USA (610) 524-8800, www.NeutronicsInc.com WARNING-TO REDUCE THE RISK OF FIRE: DO NOT USE THIS EQUIPMENT IN THE VICINITY OF SPILLED OR OPENED CONTAINERS OF GASOLINE. -
Page 16: Turning On The Unit
To remove the battery, simply tug gently on the nylon strap, being sure to pull straight up, until the battery is dislodged. The battery may be charged either inside of the unit or independent of the unit. Turning On the Unit Connect the included AC power supply to the 12VDC power input jack on the back of the unit. -
Page 17: Vapor Sampling
When the unit is ready for gas testing, the unit will display the screen shown in (Figure 6). Connect the hose to the tank and press test. The Ultima ID Pro will display the screen shown in (Figure 7). If you wish to change any of the factory default settings, refer to section 3. TESTING READY 1 - CONNECT HOSE... -
Page 18: Viewing The Test Results
Viewing the Test Results Upon completion of the test, the Ultima ID Pro will display a screen similar to that shown in (Figure 8). Pressing the “More” button will display the screen shown in (Figure 9). RESULTS RESULTS 97.0% R410A 3.0% CONTAMINATED BACK... -
Page 19: Blends With Incorrect Component Ratios
To exit the test, press the “EXIT” button. (Figures 17, 18, & 19,) show sample printouts for various test results. (NOTE) Care must be taken when tearing off the printed results to leave a clean edge. Neutronics Inc. Neutronics Inc. Neutronics Inc. -
Page 20: Setting The Lcd Contrast
& T AINTENANCE ROUBLESHOOTING Setting the LCD Contrast The Ultima ID Pro features an adjustable LCD contrast for use in varying light conditions. To adjust the contrast, press the “HELP” button on the “Ready to Air Cal” screen as shown in Section 2.2, (Figure 1A). -
Page 21: Replacing The Sample Hose
Replacing the Sample Hose Inspect the inside diameter of the tube for signs of oil build up, dirt, obstructions, kinks, cuts, fraying, or any other signs of wear. Oil contamination cannot be cleaned out of sample hoses due to the density of the oil restrictor. If oil is visible in the Low Pressure Vapor hose, replace the hose and restrictor with P/N 6-01-6001-23-1. -
Page 22: Software Updates
The Ultima ID Pro has a USB update port located within the battery compartment. This port should not be used for any other purpose other than to install factory updates using the Neutronics factory USB drive. -
Page 23: Appendices
PPENDICES Spare Parts List PART NUMBER DESCRIPTION Low Pressure Vapor Sample Hose 6-02-6001-11-0 High Pressure Liquid Sample Trap Assembly 6-02-6001-17-0 Spare Sample Hose Restrictor Assembly 6-01-6001-23-1 White Plastic Sample Filter 6-02-6000-08-0 AC Power Adapter 6-01-6001-13-0 Battery Kit (Optional) 6-02-6001-04-1 Spare Battery (Optional) 6-02-6001-04-0 Printer Paper Roll 5-03-1000-08-0... -
Page 24: Appendix E - Warranty
Buyer, therefore, agrees to indemnify NEUTRONICS from and against all losses and claims to or by any person or property caused in any manner by the goods or the use of the goods, including any expenses and attorney’s fees in connection with all claims, demands, proceedings, or other expenses.
