Hyundai HDBT52-A Original Instructions Manual

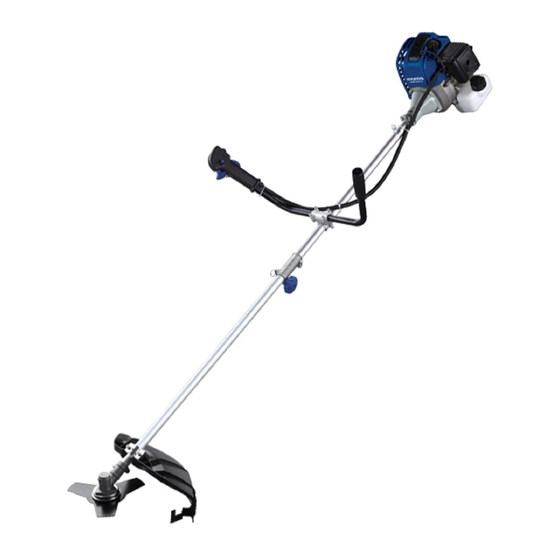

Petrol brush cutter & grass trimmer
Hide thumbs
Table of Contents

Advertisement

Quick Links

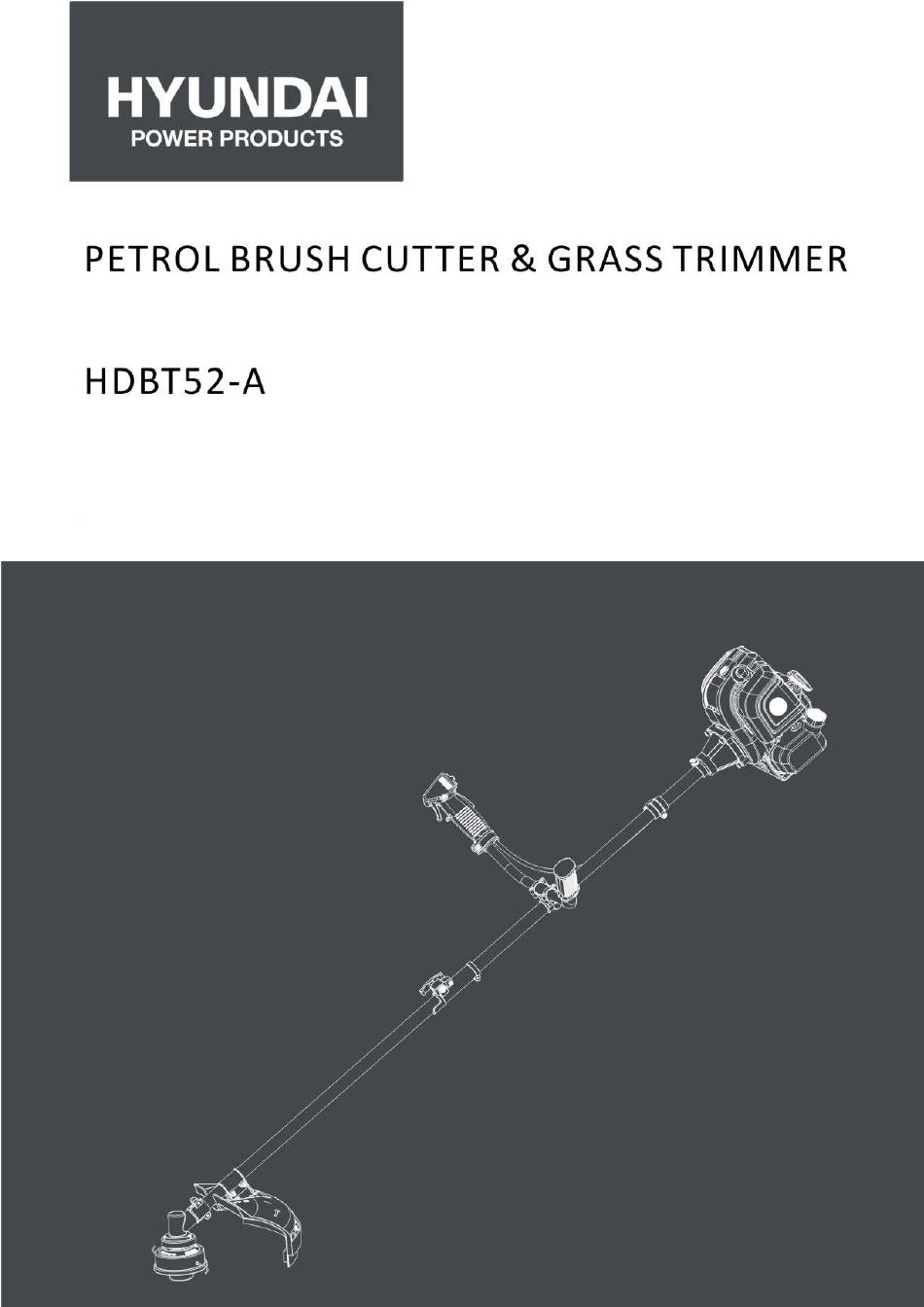

ORIGINAL INSTRUCTIONS
Read carefully this manual before any use
1

Advertisement

Table of Contents
loading

Related Manuals for Hyundai HDBT52-A

Summary of Contents for Hyundai HDBT52-A

  • Page 1 ORIGINAL INSTRUCTIONS Read carefully this manual before any use...

  • Page 2: Table Of Contents

    CONTENT 1. SAFETY WARNINGS 2. PRODUCT DESCRIPTION 3. ASSEMBLY 4. FILLING FUEL TANK 5. OPERATION 6. MAINTENANCE & CARE 7. TROUBLE SHOOTING 8. DECLARATION OF CONFORMITY 9. WARRANTY 10. PRODUCT FAILURE 11. WARRANTY EXCLUSIONS...

  • Page 3: Safety Warnings

    1. SAFETY WARNINGS  WARNING! When using this type of tool, basic precautions should always be followed to reduce the risk of fire and injury.  Read all instructions carefully before attempting to use this product and retain these instructions. Be familiar with all the operations described in these operating instructions.
  • Page 4  Keep the work area clear. Before working, inspect the work area and remove any materials or objects that could cause accidents.  Do not force the tool.  Use only accessories and guards supplied or recommended by the manufacturer. The use of non-recommended accessories (e.g.
  • Page 5  For machines with a clutch, check regularly that the cutting attachment stops turning when the engine idles.  Check the tool before and after use. Check for loose fasteners, fuel leaks and damaged parts, such as cracks in the cutting attachment. If the tool is damaged, if parts are missed or meet some dysfunctions, do not use the tool and bring it to a service agent for inspection and reparation.
  • Page 6 Residual risks Even if you use this product in accordance with all safety requirements, the potential risk of injury and damage remains. The following hazards may arise: There are harmful health consequences resulting from the emission of vibrations if the product is used for long periods of time or not managed adequately and properly maintained.
  • Page 7 BEWARE OF FOOT INJURY BY CUTTING ATTACHMENT PAY ATTENTION THAT BYSTANDERS ARE NOT INJURED THROUGH FOREIGN OBJECTS THROWN FROM THE MACHINE. BEWARE OF THROWN OBJECTS HIT BY CUTTING ATTACHMENTS. NEVER USE WITHOUT PROPERLY MOUNTED BLADE GUARD. BEWARE OF BLADE THRUST. KEEP BYSTANDERS AT LEAST 15 M AWAY.

  • Page 8: Product Description

    2. PRODUCT DESCRIPTION...
  • Page 9 a. Description 1. Starter handle 2. Starter 3. Throttle valve control lever 4. Plug cables 5. Fuel tank 6. Exhaust pipe 7. Left handle 8. Engine casing 9. Right handle 10. Lower part for attaching the handle 11. Shoulder strap ring 12.
  • Page 10 Technical data MODEL HDBT52-A Main unit Remote type Centrifugal Clutch; Hard transmission Maximum rotational frequency of the spindle 9,500/min Idle speed of engine 3,000 /min Measured vibration emission value Brush cutter: 7.824m/s² K=1.5 m/s at each manipulation (m/s2) Grass trimmer: 8.856 m/s², K=1.5 m/s (According to ISO 22867) Measured sound pressure level at operator’s...

  • Page 11: Assembly

    3. ASSEMBLY HANDLE INSTALLATION Remove the upper part of the handle attachment (1) by unscrewing the 4 screws. Install the operating handles (3 and 5). The right-hand grip (3) is equipped with engine controls, the trigger of the right-hand grip should be directed toward the gearbox.
  • Page 12 Loosen the retaining nut and then remove all elements. NOTE After installation, always check if the installation is correct. If blade is not well installed, it will vibrate excessively and can cause injury. When operation, if there is abnormal vibration, immediately stop the tool and check the installation.

  • Page 13: Filling Fuel Tank

    4. FILLING THE FUEL TANK 1) Filling fuel tank WARNING: When filling the tank: The tool must always be stopped and cooled. Never smoke during refueling. It must not have flames or sparks near the fuel. Before refueling, allow the chainsaw to cool completely. Do not attempt to refuel when the engine is hot.

  • Page 14: Operation

    5. OPERATION a. Starting the operation Cold starting  Switch on the tool by putting the Start/stop button on the position I (ON). Push the primer bulb 5-7 times, until fuel comes into the primer bulb. Pull the choke lever to the OFF position. Pull the starter cord until the engine starts.
  • Page 15 c. Grass trimmer operation Trimming  Tilt the head slowly to direct debris away from you. If cutting up to a barrier such as fence, wall or tree, approach from an angle where any debris ricocheting off the barrier will fly away from you, Move the line head slowly until the grass is cut right up the barrier, but do not jam (overfeed) the line into the barrier.

  • Page 16: Maintenance & Care

    side. You will be hit by some debris if you scythe in both directions. Cut only with the side of the blade that the debris is moving away from you. If kickback occurs, the blade may be dull, or the material so thick and hard that you should use other tool instead of this machine.
  • Page 17 Fuel tank is fitted with a filter. Filter is situated at the free end of fuel pipe. It can be picked with a hook or similar device. Check the fuel filter periodically. Do not allow dust to enter into fuel tank. Clogged filter will cause difficulty in starting engine or abnormalities in starting engine or abnormalities in engine performance.

  • Page 18: Troubleshooting

    7. TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION The tool is not started in the Star the tool by following the correct way instructions given this manual Problem with the carburettor carburettor shall inspected by an authorized The unit does not start service centre Spark plug is worn Clean/gap or replace plug...

  • Page 19: Declaration Of Conformity

    ZI, 32, rue Aristide Bergès – 31270 Cugnaux - France Tel: +33 (0)5.34.502.502 Fax: +33 (0)5.34.502.503 Declares that the machines: Brush Cutter & Grass Trimmer Model: HDBT52-A Serial No.: 20200833924-20200834378 / 20200834151-20200834378 The people name holding the technical file：M. Olivier...

  • Page 20: Warranty

    9. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor.

  • Page 21: Product Failure

    10. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.

  • Page 22: Warranty Exclusions

    11. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
