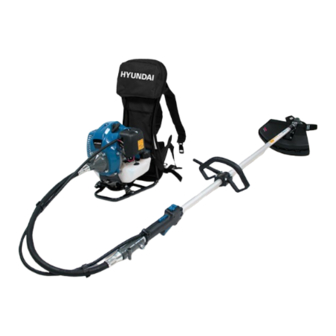

Hyundai HDBTD60-A1 Instructions Manual
  1. Manuals
  2. Brands
  3. Hyundai Manuals
  4. Trimmer
  5. HDBTD60-A1
  6. Instructions manual

Hyundai HDBTD60-A1 Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDBTD60-A1 and is the answer not in the manual?

Questions and answers

Related Manuals for Hyundai HDBTD60-A1

Summary of Contents for Hyundai HDBTD60-A1

  • Page 2: Safety Warnings

    1. SAFETY WARNINGS Proper safety precautions must be observed. This unit must be handled carefully. DO NOT EXPOSE YOURSELF OR OTHERS TO DANGER. Follow these general rules. Do not permit others to use this machine unless they are thoroughly responsible and have read, and understand the machine manual and are trained in its operation. •...
  • Page 3 dealer. The use of any other accessories or attachments may cause a potential hazard or injury to the user, damage to the machine and void this warranty. • Clean the machine completely, especially, the fuel tank, its surroundings, and the air cleaner. •...

  • Page 4: Residual Risks

    other hand-held power equipment is not required. • If you experience discomfort, redness and swelling of the fingers followed by whitening and loss of feeling, consult your physician before further exposing yourself to cold and vibration. • Always wear ear protection, loud noise for long time can make hearing debase even lost hearing.
  • Page 5 Even if you use this tool correctly, there are always residual risks. The following hazards may arise in connection with the structure and manufacture of this power tool: Hearing impairment if no suitable hearing protection is worn. Cuts if no suitable protective clothing is worn. Health damage resulting from vibration in the hands and arms if the device is used for a long period of time or is not handled and maintained properly.

  • Page 6: Your Product

    Do not smoke and do use the tool near naked flame The accessible part are hot when operate the tool Caution! Risk of rebound Keep bystanders away at least 15mm Caution! The tool can contact to a voluminous material. Loss of control and injuries can be created.
  • Page 7 Description Unit 10. Grass trimmer attachment Handle 11. Brushcutter attachment Cutting attachment installation 12. Bottle for fuel mixing Tube 13. Flexible tube Command cord 14. Air filter Accelerator throttle 15. Choke lever ON/OFF switch 16. Starter rope Tube connector 17. Fuel tank Carter of protection 18.
  • Page 8 machine mass (without fuel, cutting 6,8 kg attachment and harness), volume (fuel tank) 1200 cutting attachments (type, diameter for Brushcutter: 255mmx1.4mm, 3 teethes, blades), in mm; Grass trimmer: 2.5mmx420mm, flexible line engine displacement, in cm3; 52 cm³ maximum engine power, in accordance 1,75 kW with ISO 8893, in kW;...
  • Page 9 Assembling the flexible tube with the engine and the pipe support Insert one end of the flexible tube into the clutch housing on the engine until it locks in place. Insert the other end of the flexible tube into the brush cutter line until it locks into place. The ends of the flexible shaft are interchangeable.
  • Page 10 Remove the air filter cover. Place the throttle cable in the adjusting bolt. Be careful that the round hole of the rotating joint faces the end of the inner wire. Leave the rotating seal and make sure that the inside wire is properly seated in the hole. Reinstall the cover of the air filter.
  • Page 11 Remove the screws which are on the carter of protection. Install the tube on the carter of protection. Make sure that you have installed it in the correct position. Screw the carter on the tube with the two screws. Installation of the nylon cutting head (for grass trimmer operation) Insert a metal locking tool into the hole on the side of the drive gear and on the tool drive.
  • Page 12 Insert a metal locking tool into the hole on the side of the drive gear and on the tool drive Remove cover bell and the holding nut from the shaft. Install, in the following order, on the shaft: the blade, the cover bell and then the holding nut.

  • Page 13: Operation

    4. FUEL • Warning: Gasoline is highly flammable. Keep the fuel in specially designed cans. • Only fill the tank outside and do not smoke during the operation. Avoid sparks or open flames near the fuel. • Fill the tank before starting the engine. Never remove the fuel tank cap, add fuel while the engine is still running, or while the engine is still warm.
  • Page 14 Cold starting Put the tool on a plane surface. Push the ON/OFF switch on the ON position. Close the choke lever. Push the priming bulb 7 to 10 times. Pull the starter rope until the engine starts. Press and hold the safety switch and then accelerator throttle to start the operation...
  • Page 15 Hot starting Partial the choke lever or open the choke lever Pull the starter rope. Press and hold the safety switch and then accelerator throttle to start the operation...
  • Page 16 Stopping Release the accelerator throttle. Push the ON/OFF switch on the OFF position. Let the tool completely stop a) Grass trimmer operation Trimming Tilt the head slowly to direct debris away from you. If cutting up to a barrier such as fence, wall or tree, approach from an angle where any debris ricocheting off the barrier will fly away from you, Move the line head slowly until the grass is cut right up the barrier, but do not jam (overfeed) the line into the barrier.
  • Page 17 Brushcutter operation Do not the brushcutter for cutting trees Do not cut with dull, cracked or damaged meal blade. Before cutting growth, inspect for obstructions such as boulders, metal stakes or strands of wire from broken fences. If an obstruction cannot be removed, mark its location so that you can avoid it with the blade.

  • Page 18: Maintenance And Storage

    thrown away from you. That is using the side of the blade that it is rotating away from you. Tilt down the blade slightly on this same side. You will be hit by some debris if you scythe in both directions. 6.

  • Page 19: Spark Plug

    d) Spark plug Do not attempt to remove the plug from a hot engine in order to avoid possible damage to the threads. Clean or replace the spark plug in case of ozone contamination. Replace the spark plug if the end of the center electrode is worn. e) Handling and transport The engine should be turned off when the unit is moved between work areas.
  • Page 20 ZI, 32, rue Aristide Bergès – 31270 Cugnaux - France Tel : +33 (0)5.34.502.502 Fax : +33 (0)5.34.502.503 Declares that the machine: BRUSH CUTTER & GRASS TRIMMER HDBTD60-A1 Serial No: The people name holding the technical file：Mr. Olivier Patriarca Have been designed in compliance with the following standards:...
  • Page 21 Spare parts You can order spare parts directly from our service center. This tool should only be used with spare parts and accessories recommended by the manufacturer and corresponding to the specifications of this tool. Contact the service center.
