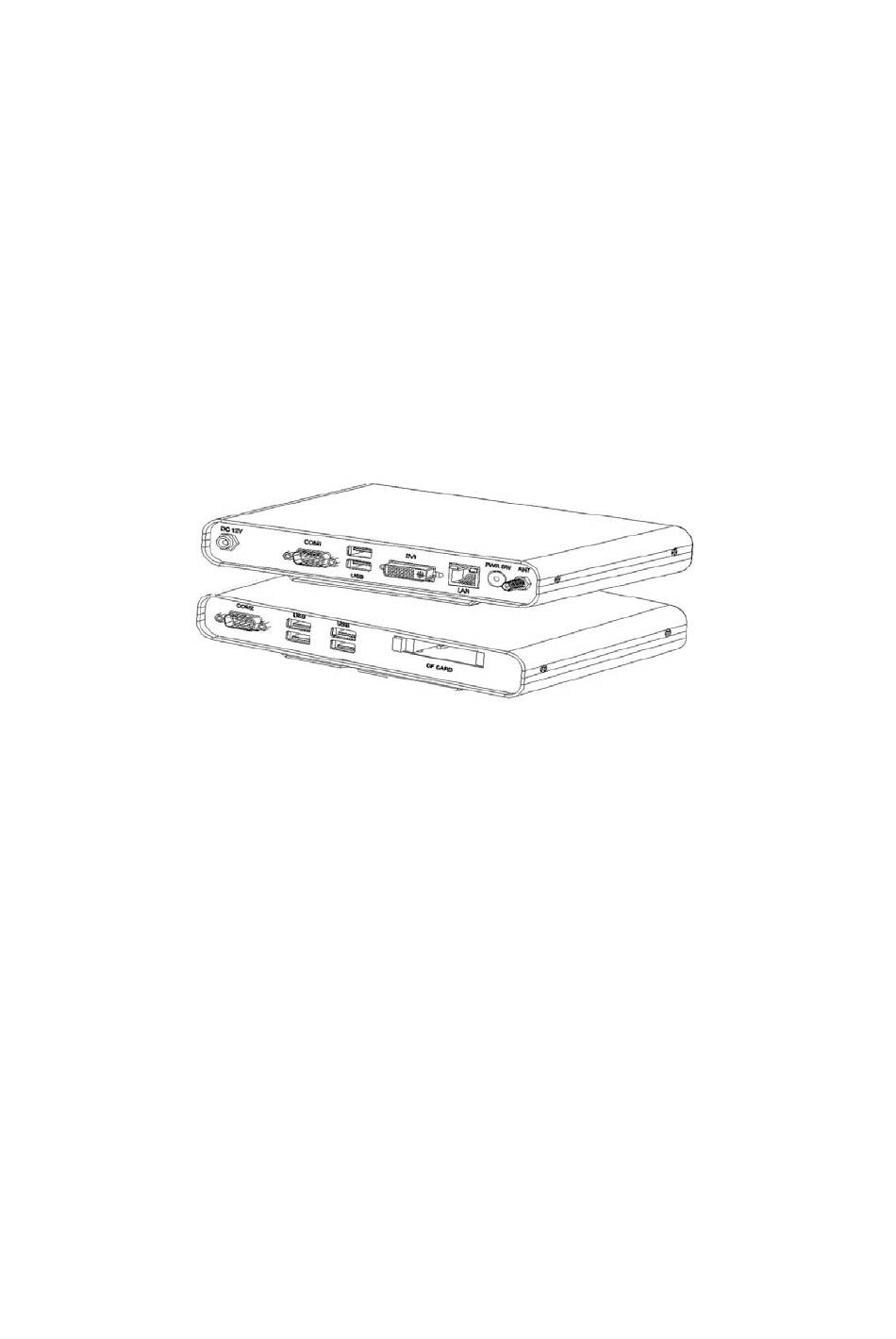

- Page 1 CSB200-888 User Manual 2009 October V1.0...
- Page 2 Copyright © 2008 IBASE Technology INC. All Rights Reserved. No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of IBASE Technology INC.
-
Page 3: Table Of Contents
Components ......................7 Front View ........................7 Rear View ........................8 Specification ......................10 Mounting CSB200-888 to VESA mounting bracket ..........11 Mounting procedure: ....................11 Exploded view of the CSB200-888 assembly ............12 Parts description ......................12 Driver Installation ....................13... - Page 4 Safety Information Your CSB200-888 is designed and tested to meet the latest standards of safety for information technology equipment. However, to ensure your safety, it is important that you read the following safety instructions. Setting up your system • Read and follow all instructions in the documentation before you operate your system.
- Page 5 The system was dropped or the cabinet is damaged. Lithium-Ion Battery Warning CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions. NO DISASSEMBLY The warranty does not apply to the products that have been disassembled by users...
-
Page 6: Accessories
Accessories Power Cord x 1 M/B Manual x 1 Driver CD x 1 Power Brick x 1 Mounting Rail Screw x 4 Mounting Bracket x 1... -
Page 7: Components

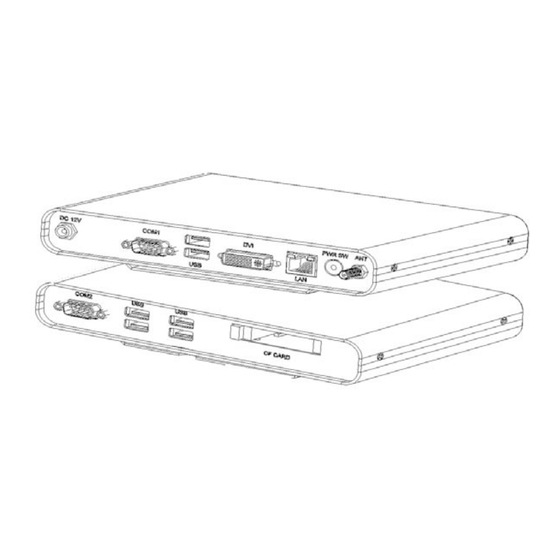

Components Front View Refer to the diagram below to identify the components on this side of the system. COM2 Communication or serial port one is compatible with RS-232 interface. The USB (Universal Serial Bus) port is compatible with USB devices such as keyboards, mouse devices, cameras, and hard disk drives. -
Page 8: Rear View
Rear View Refer to the diagram below to identify the components on this side of the system. DC 12V The supplied power adapter converts AC power to DC power for use with this jack. Power supplied through this jack supplies power to the system. To prevent damage to the system, always use the supplied power adapter. - Page 9 PWR SW The power switch allows powering ON and OFF the system. The backlight of the power switch illuminated when system been power on. The jack is reserve for connect the wireless antenna to enhance wireless signal reception.
-
Page 10: Specification
Specification System Mainboard IB888 Construction Steel Chassis Color Black Storage One CF type II socket Mounting Desktop or wall mount Dimensions 190mm(W) x 132mm(D) x 30mm(H) (7.48” x 5.19” x 1.18”) Power Supply 60W DC adapter Operating 0°C ~ 45°C (32°F ~ 113°F) Temperature Storage -20°C ~ 80°C... -
Page 11: Mounting Csb200-888 To Vesa Mounting Bracket
Mounting procedure: Using four embedded M3 flat head screws to secure the mounting bracket on bottom of CSB200-888. Place CSB200-888 with mounting bracket on VESA75 device noting the alignment, and then secure the system with four M4 screws. -
Page 12: Exploded View Of The Csb200-888 Assembly
Exploded view of the CSB200-888 assembly Parts description Part NO. Description Part NO. Description 1 Base Chassis 2 Top Cover 3 Rear IO Panel 4 Front IO Panel 5 Mounting Bracket 6 Power Button Bracket 7 IB888 8 CF Bracket... -
Page 13: Driver Installation
Driver Installation Please refer correspond mainboard user manual to install the driver properly. BIOS Setup Please refer correspond mainboard user manual to configure BIOS setting.
