PREPARE THE COASTER COMPONENTS
A
ARM ASSEMBLY
Arm Holder B
B
RAIL SPLITTERS
To avoid damaging parts, do not move or adjust the Rail Clip while locked in the arm. To move the Rail Clip, release
Arm Lock by turning clockwise, position Rail Clip as desired, then secure Arm Lock again.
Seaich Corporation, LLC. All rights reserved. www.seaich.com | Spacerails, LLC. www.spacerails.com
(QTY: 66 SHAFT TO RAIL)

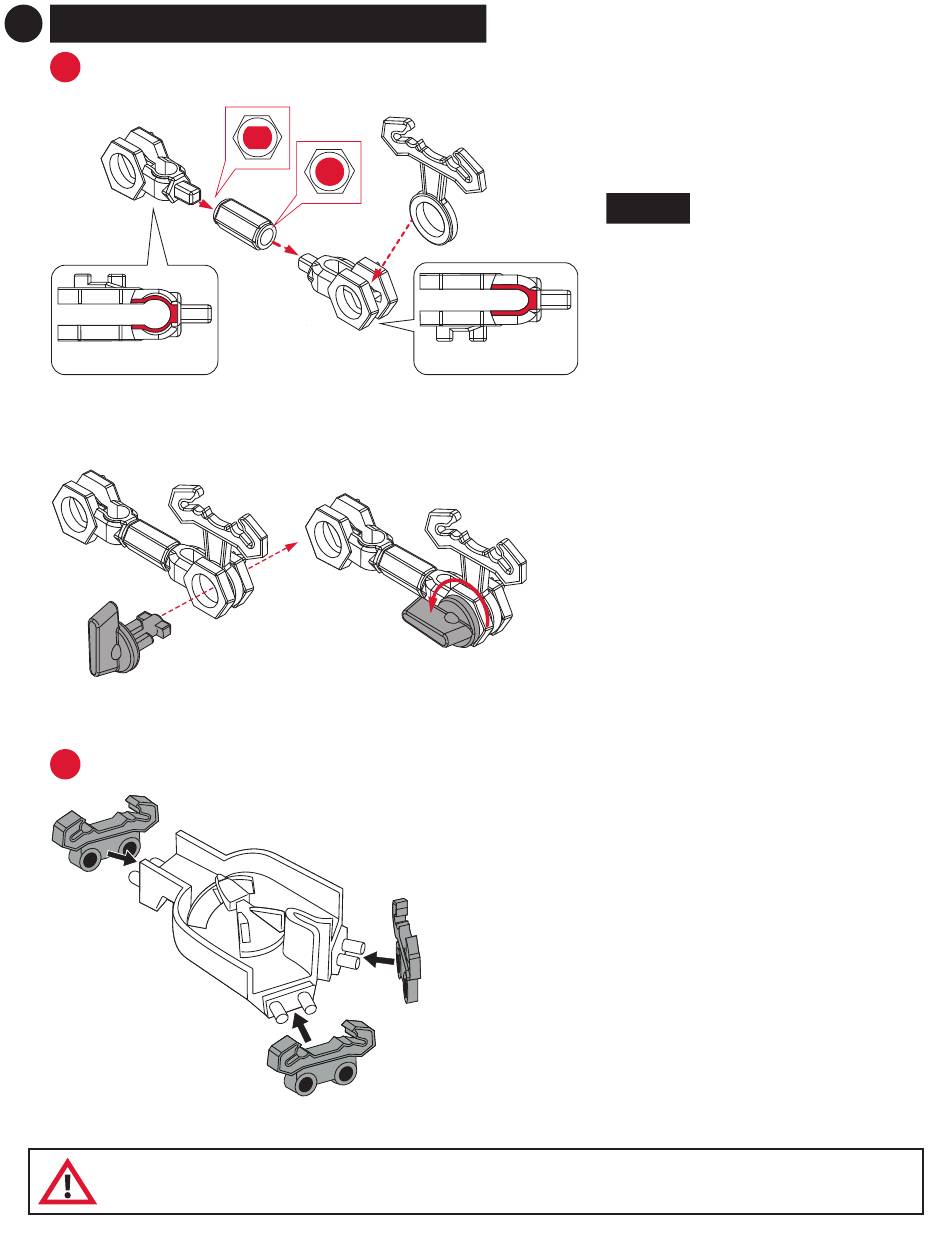

Step 1: Attach one Arm Holder A and one
Arm Holder B with one Arm Sheath.
NOTE:
The hole shapes of the Arm Holder
and Arm Sheath differ.
Step 2: Insert one Arm Clip into Arm
Holder A. Slide the circular part between
the matching parts on the Arm Holder.
Arm Holder A
Step 3: Insert Arm Lock through Arm
Holder A and Arm Clip. Ensure that the
tab is facing up.
Step 4: Turn the Arm Lock
counter-clockwise to secure the
Arm Clip in place.
Step 1: Attach one Rail Clip on each of
the Rail Splitter posts.
Page 3
