Spacerails LEVEL 4 Quick Start Manual page 12

A
INSTALL RAIL A

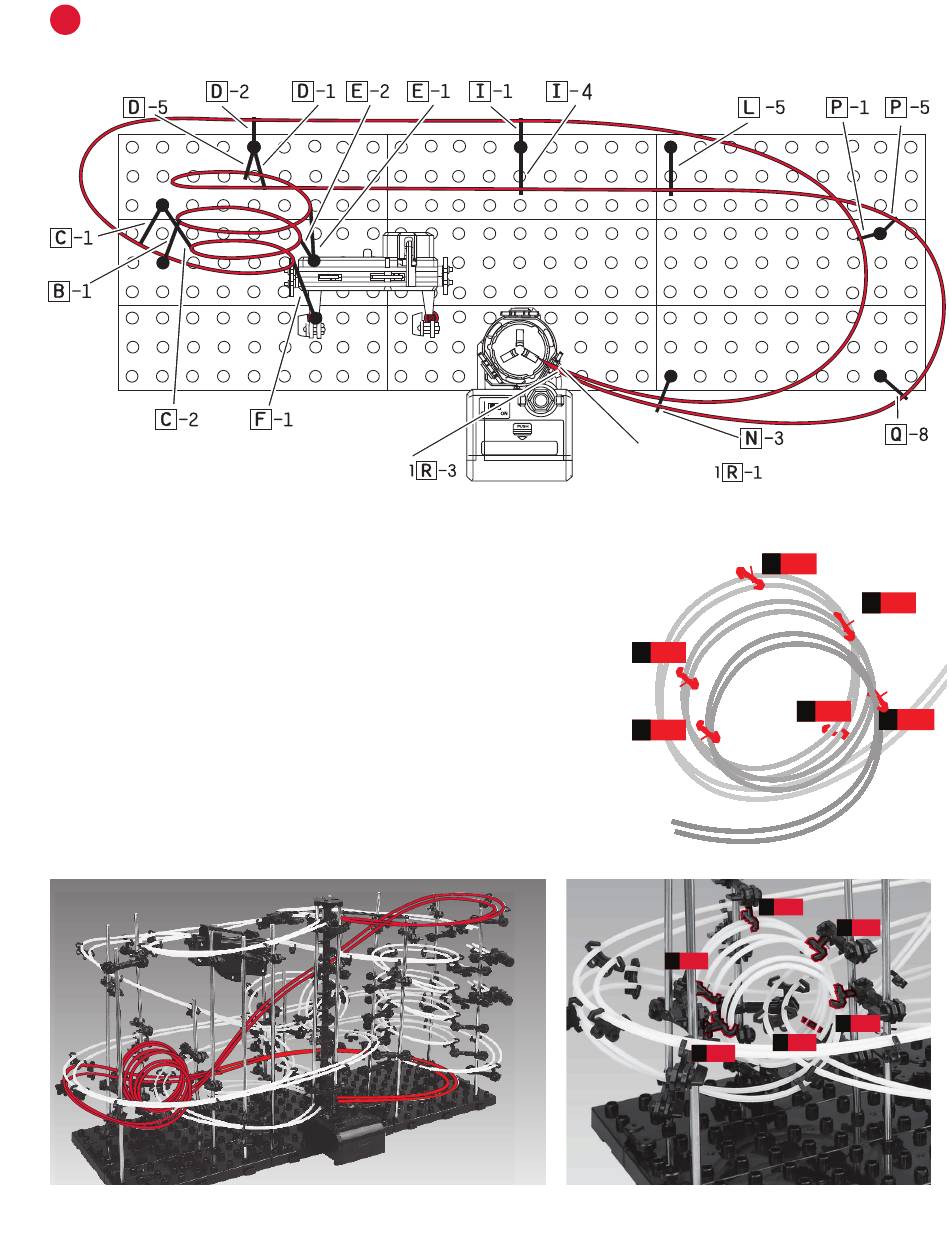

Use the following illustrations and pictures as references for attaching the rails to the structure:
Step 1: Install one side of a rail at a time. Starting at the top right Elevator
Ring (1R-1) connect Rail A (300 cm) to Rail Clip. Curving rail, connect to
Arm P-1. Continue the curve and connect to Arm I-1 then, keeping rail
tight, connect to Arm D-1. Curve rail and connect to C-1. Attach Rail Clips
every 8-10 cm along rail to maintain stability and keep rails parallel.
Step 2: Begin the Loop. You will need to angle arms and Arm Clips to
create loop as shown below. Starting at Arm F-1 loop rail and attach at
C-2 then E-2 to create a circular shape. Continue with B-1, E-1, D-5, then
D-2. You should now have 3 complete loops.
Step 3: Keeping rail tight, connect to I-4, then L-5. Curve rail and attach
to P-5, Q-8, N-3, and then finish at Elevator Exit (R-3).
Fine Tune: Once each rail Section is completed run a Marble down your
course and make sure it travels well. Make any adjustments as needed.
The Loop will need to be adjusted and the rail angles tweaked.
Page 12
Elevator Exit
Seaich Corporation, LLC. All rights reserved. www.seaich.com | Spacerails, LLC. www.spacerails.com
B-1
4
2 C-2
Elevator Entry
4 B-1
2 C-2
4 B-1
Rail A
6 D-5
3
E-1
5
D-5
6
3
5 E-1
6 D-5
3 E-2
F-1
1
E-1
5
2 C-2
E-2
F-1
1
E-2
F-1
1
Loop
