Controller-to-stack cabling worksheet template for multipathed connectivity - shelves with IOM12
modules
By completing the worksheet template, you can define the controller SAS port pairs you
can use to cable controllers to stacks of disk shelves with IOM12 modules to achieve
multipathed connectivity in an HA pair or single-controller configuration. You can also use
the completed worksheet to walk yourself through cabling the multipathed connections for
your configuration.
Before you begin
Your HA pair or single-controller configuration cannot be an AFF A200, AFF A220, FAS2600 series or
FAS2700 system. If you have one of these configurations, use the following:
Controller-to-stack cabling worksheets and cabling examples for common AFF A200, AFF A220, FAS2600
series and FAS2700 configurations
About this task
• This procedure and worksheet template is applicable to cabling multipathed connectivity for a multipath HA
or multipath configuration with one or more stacks.

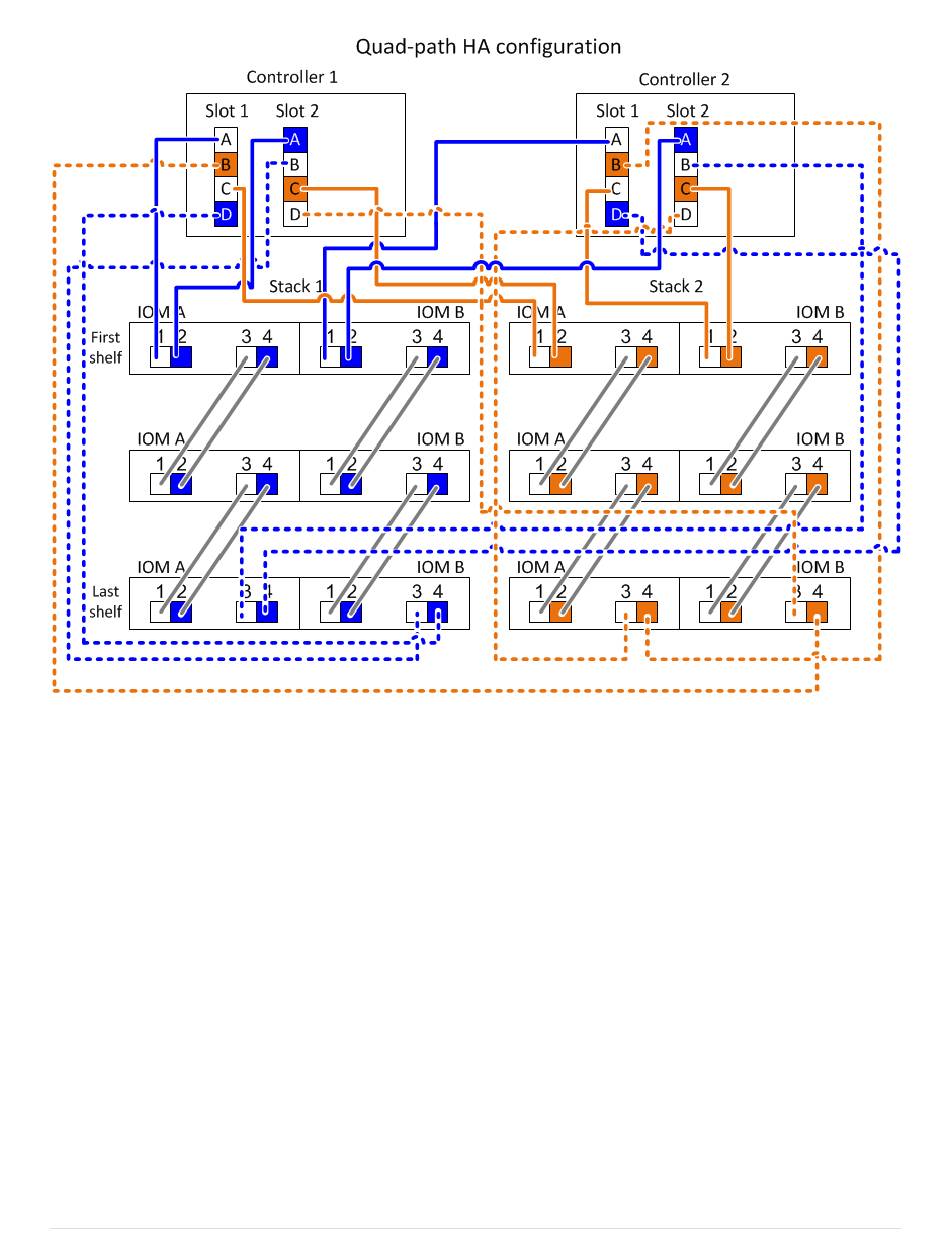

Examples of completed worksheets are provided for multipath HA and multipath configurations.
