c. While holding both release levers, pull the drive drawer toward you.
d. Remove the drive drawer from the drive shelf.
Installing a drive drawer
Installing a drive drawer into a drive shelf entails sliding the drawer into the empty slot,
installing the drives, and replacing the front bezel.
Before you begin
• You know where to install each drive.
• You have obtained the following items:
◦ Replacement drive drawer
◦ Flashlight
Steps
1. From the front of the drive shelf, shine a flashlight into the empty drawer slot, and locate the lock-out
tumbler for that slot.
The lock-out tumbler assembly is a safety feature that prevents you from being able to open more than one
drive drawer at one time.
2. Position the replacement drive drawer in front of the empty slot and slightly to the right of center.

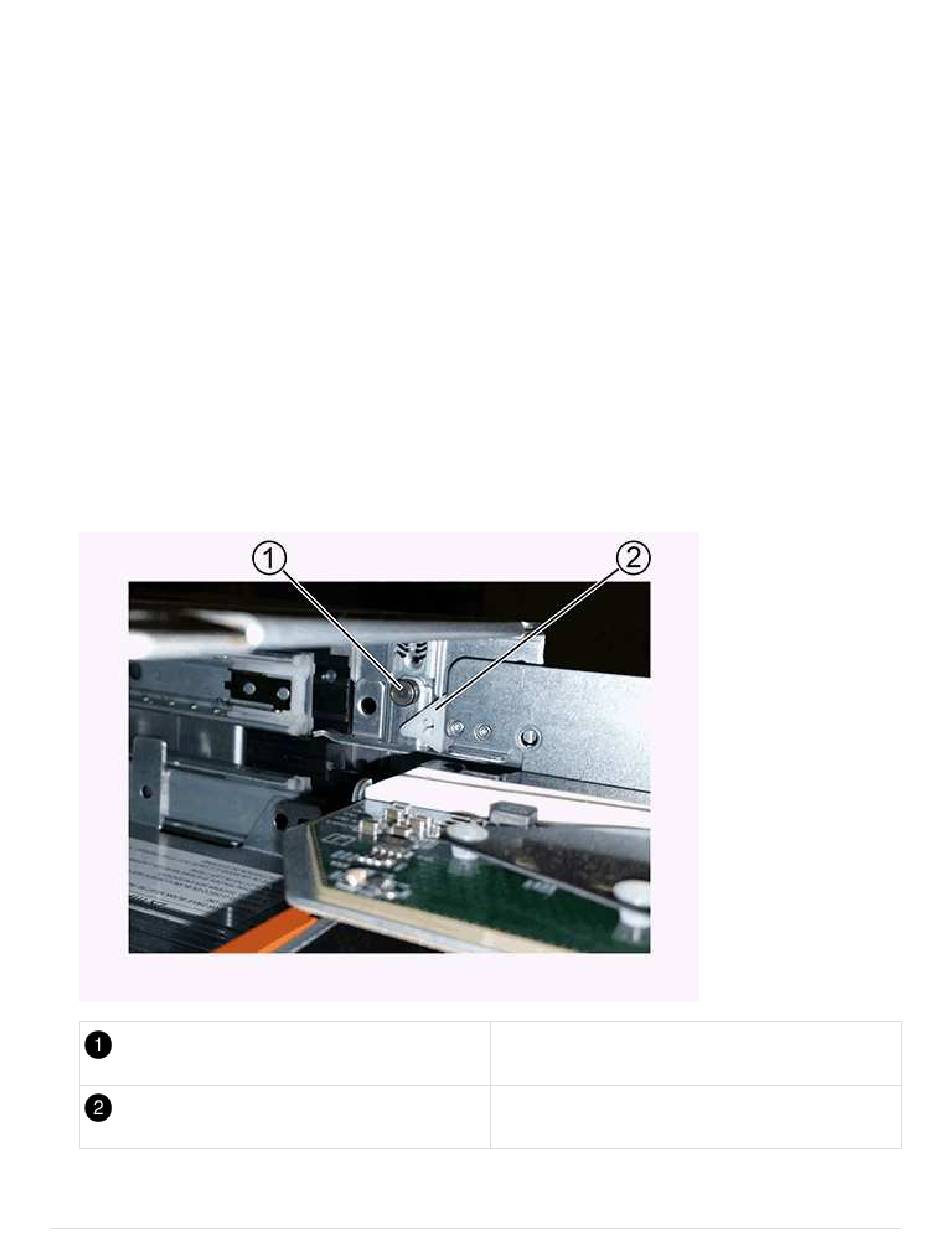

1636
Lock-out tumbler
Drawer guide
