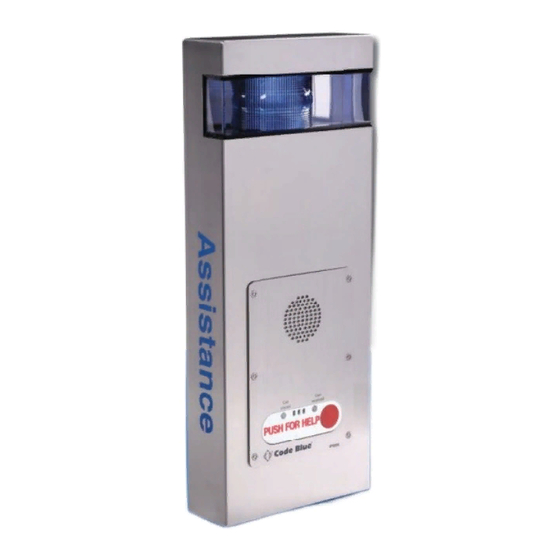

CB 2 Series
CB 2-e
CB 2-e with AED Housing
CB 2-e with Public Address
CB 2-s
Installation & Setup
Administrator Guide
800.205.7186
www.codeblue.com
•

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CB 2 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Code Blue CB 2 Series

Summary of Contents for Code Blue CB 2 Series

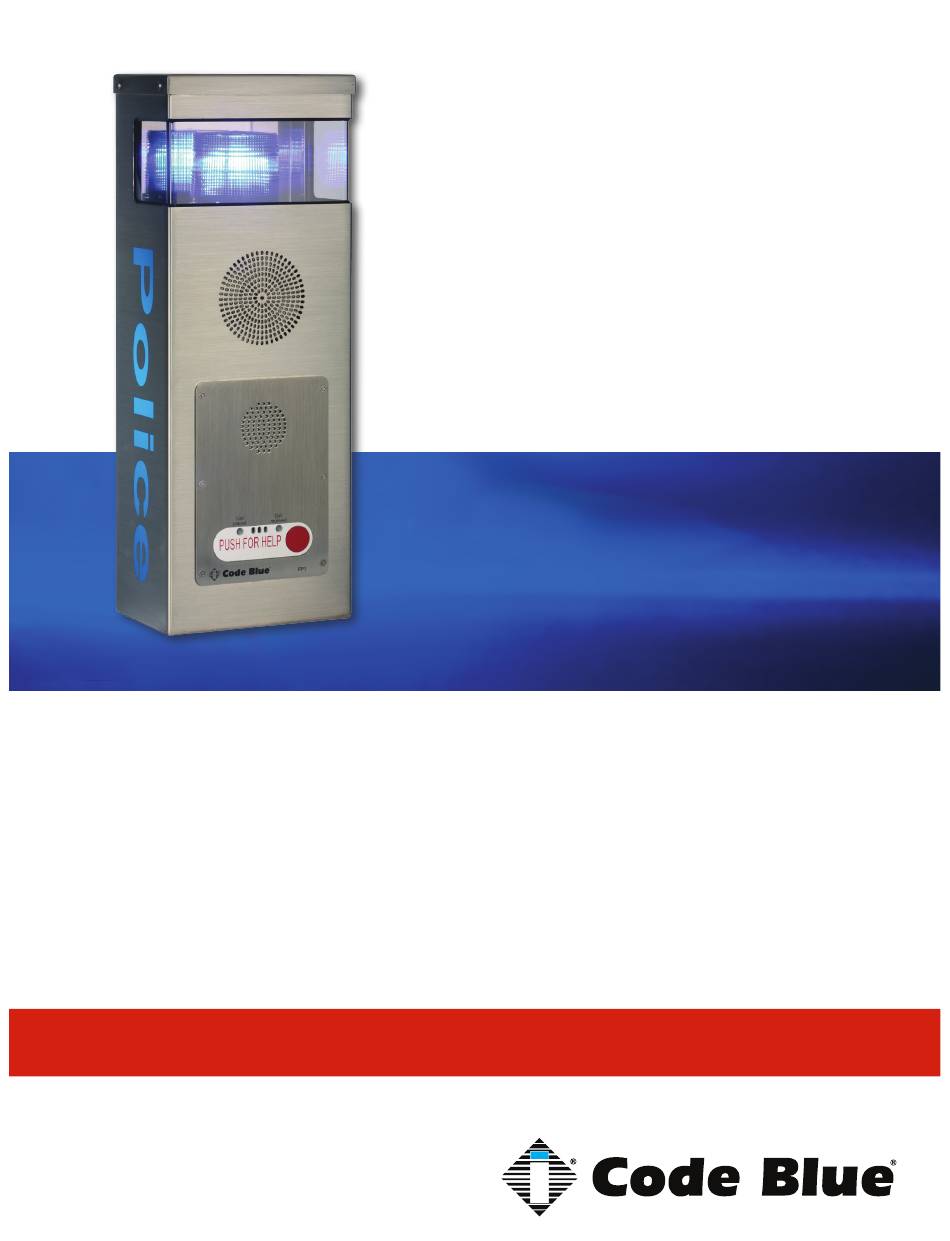

  • Page 1 CB 2 Series CB 2-e CB 2-e with AED Housing CB 2-e with Public Address CB 2-s Installation & Setup Administrator Guide 800.205.7186 www.codeblue.com •...

  • Page 2: Table Of Contents

    CB 2 Series Administrator Guide Table of Contents Section Page 2 Introduction..................3 3 Getting Started................4 3.1 CB 2-e Replacement Parts List..........5 3.2 CB 2-e with Public Address Replacement Parts List....6 3.3 Cb 2-e with AED Housing Replacement Parts List....7 3.4 CB 2-s Replacement Parts List..........8...

  • Page 3: Introduction

    CB 2 Series Administrator Guide 2 Introduction The 2 Series Wall Mount Help Points This popular line is a good fit for any indoor or outdoor application including parking facilities. Our unmistakable craftsmanship makes our Help Points the most rugged on the market, withstanding ®...

  • Page 4: Getting Started

    1. EIA/TIA, ANSI, CSA and BICSI cabling or similar standards shall be adhered to for proper operation of Code Blue communication devices connected to copper or fiber infrastructures. Communications cable and electrical cable in the same conduit is not an acceptable instal- lation and shall not be supported.

  • Page 5: Cb 2-E Replacement Parts List

    CB 2 Series Administrator Guide 3.1 CB 2-e Replacement Parts List Part Part Number LED Strobe Light 40159 Button Head Security Screws (3 pack) 41418 Analog Phone Line Surge Suppressor 41471 IP Phone Line Surge Suppressor 41421 Manifold R/B 5-way 40101 Power Brick 120V, 240V, 277V, &...

  • Page 6: Cb 2-E With Public Address Replacement Parts List

    CB 2 Series Administrator Guide 3.2 CB 2-e with Public Address Replacement Parts List Part Part Number LED Strobe Light 40159 Button Head Security Screws (3 pack) 41418 Analog Phone Line Surge Suppressor 41471 IP Phone Line Surge Suppressor 41421...

  • Page 7: Cb 2-E With Aed Housing Replacement Parts List

    CB 2 Series Administrator Guide 3.3 CB 2-e with AED Housing Replacement Parts List Part Part Number LED Strobe Light 40159 Button Head Security Screws (3 pack) 41418 Analog Phone Line Surge Suppressor 41471 IP Phone Line Surge Suppressor 41421...

  • Page 8: Cb 2-S Replacement Parts List

    CB 2 Series Administrator Guide 3.4 CB 2-s Replacement Parts List Part Part Number LED Strobe Light 40159 Button Head Security Screws (3 pack) 41418 Analog Phone Line Surge Suppressor 41471 IP Phone Line Surge Suppressor 41421 Manifold R/B 5-way 40101 Power Brick 120V, 240V, 277V, &...

  • Page 9: Installation Instructions

    120V AC – The enclosure comes pre-wired except for incoming power. If you are using a Code Blue Power Supply/Transformer, please look at the wiring diagram on top of the Step- Down Transformer to verify how to step down the voltage that you are bringing to the enclosure.
  • Page 10 CB 2-e Additional Options HIKVISION Network Mini Dome Camera The HIKVISION Mini Dome Network IP Camera installed in this unit is a Code Blue 3rd Party Partner product. Model # DS-2CD7153-E. The network camera is set with the following factory default settings: 1.
  • Page 11 CB 2 Series Administrator Guide CB 2-e Installation Instructions (continued) Code Blue 259 Hedcor Street Holland, MI 49423 USA 800.205.7186 www.codeblue.com page 11 of 33 GU-149-B • • • •...
  • Page 12 CB 2 Series Administrator Guide CB 2-e Installation Instructions (continued) Suggested installation dimensions shown from ground to lower right mounting hole are for single button faceplates. • For dual button faceplate, deduct 3.25 inches. • For keypad faceplate, deduct 4.5 inches.

  • Page 13: Cb 2-E With Public Address Installation Instructions

    120V AC – The enclosure comes pre-wired except for incoming power. If you are using a Code Blue Power Supply/Transformer please look at the wiring diagram on top of the Step-Down Transformer to verify how to step down the voltage that you are bringing to the enclosure.
  • Page 14 CB 2 Series Administrator Guide CB 2-e with Public Address Installation Instructions (continued) Code Blue 259 Hedcor Street Holland, MI 49423 USA 800.205.7186 www.codeblue.com page 14 of 33 GU-149-B • • • •...
  • Page 15 CB 2 Series Administrator Guide CB 2-e with Public Address Installation Instructions (continued) Suggested installation dimensions shown from ground to lower right mounting hole are for single button faceplates. • For dual button faceplate, deduct 3.25 inches. • For keypad faceplate, deduct 4.5 inches.

  • Page 16: Cb 2-E With Aed Housing Installation Instructions

    CB 2 Series Administrator Guide 4.3 CB 2-e with AED Housing Installation Instructions Pre-Installation Electrical preparation – The unit may have supply wires run either behind the unit through the wall or below the unit by using an external conduit through the bottom of the unit. Holes in the back and bottom of the unit have been provided for this purpose.
  • Page 17 CB 2 Series Administrator Guide CB 2-e with AED Housing Installation Instructions (continued) 12.53 8.00 36.00 46.72 21.00 23.06 3.00 9.00 15.5 Code Blue 259 Hedcor Street Holland, MI 49423 USA 800.205.7186 www.codeblue.com page 17 of 33 GU-149-B • •...
  • Page 18 CB 2 Series Administrator Guide CB 2-e with AED Housing Installation Instructions (continued) Ø .44 MOUNTING HOLES 4 PLCS 45.22 36.00 Ø 1.13 KNOCKOUTS FOR Ø 3/4 CONDUIT 8.00 2 PLCS 21.00 3.00 BOTTOM 9.00 12.40 28.00 GROUND LEVEL 2.20 8.00...

  • Page 19: Cb 2-S Installation Instructions

    120V AC – The enclosure comes pre-wired, except for incoming power. If you are using a Code Blue Power Supply/Transformer, please look at the wiring diagram on the top of the Step-Down Transformer to verify how to step down the voltage that you are bringing to the enclosure.
  • Page 20 CB 2 Series Administrator Guide CB 2-s Installation Instructions (continued) Code Blue 259 Hedcor Street Holland, MI 49423 USA 800.205.7186 www.codeblue.com page 20 of 33 GU-149-B • • • •...
  • Page 21 CB 2 Series Administrator Guide CB 2-s Installation Instructions (continued) 12 REF 4 X Ø7/16 MOUNTING HOLES 30 3/4 42 REF 2 X Ø1-1/8 (KNOCKOUTS FOR Ø3/4 CONDUIT) 2 9/16 8 5/16 REF 1 1/2 REF 1 1/2 GROUND/FLOOR Suggested installation dimensions shown from ground to lower right mounting hole are for single button faceplates.

  • Page 22: Pole Mount Bracket Installation Instructions

    CB 2 Series Administrator Guide 4.5 Pole Mount Bracket Installation Instructions 1. Thread the mounting straps through the slots; use the outside slots for larger poles and inside slots for smaller poles. 2. Hold bracket to pole; Set the height of the bracket (C) so the speakerphone push button(s) on the unit will be at desired height (please check with local codes for ADA compliance).

  • Page 23: Wiring Diagrams

    CB 2 Series Administrator Guide 5 Wiring Diagrams 5.1 CB 2-e Wiring Diagram Product wiring diagram shown reasonably represents current offering and is intended to assist in component identification and service. Earlier product production may have different components and wiring connections. Reference the model and serial number from the unit ID tag and contact manufacturer to confirm replacement part version and availability.

  • Page 24: Cb 2-E With Public Address Wiring Diagram

    CB 2 Series Administrator Guide PAS 2-e Wiring Diagram 5.2 CB 2-e with Public Address Wiring Diagram POWER SUPPLY LIGHTING Beacon/Strobe MULTI-TAP 12-24V AC or DC • Multi-Tap LV fuses are generally 2A GMA Faceplate Light 12-24V AC 12V DC...

  • Page 25: Cb 2-E With Aed Housing Wiring Diagram

    CB 2 Series Administrator Guide 5.3 CB 2-e with AED Housing Wiring Diagram A E D H o u s i n g A E D H o u s i n g Product wiring diagram shown reasonably represents current offering and is intended to assist in component identification and service.

  • Page 26: Cb 2-S Wiring Diagram

    CB 2 Series Administrator Guide 5.4 CB 2-s Wiring Diagram Product wiring diagram shown reasonably represents current offering and is intended to assist in component identification and service. Earlier product production may have different components and wiring connections. Reference the model and serial number from the unit ID tag and contact manufacturer to confirm replacement part version and availability.

  • Page 27: Cb 2-E And Cb 2-S Poe Wiring Diagram

    CB 2 Series Administrator Guide 5.5 CB 2-e and CB 2-s PoE Wiring Diagram Product wiring diagram shown reasonably represents current offering and is intended to assist in component identification and service. Earlier product production may have different components and wiring connections. Reference the model and serial number from the unit ID tag and contact manufacturer to confirm replacement part version and availability.

  • Page 28: Maintenance Schedule

    CB 2 Series Administrator Guide Maintenance Schedule 6 Maintenance Schedule Guidelines LEGEND Guard tasks Technician tasks DAILY OR WEEKLY Perform functional communications check Action: Press red button Strobe activates  Red LED “Call Placed” light turns on  Message plays ...
  • Page 29 (continued) UNIT SURFACE MAINTENANCE The painted and stainless steel Code Blue models require periodic care to sustain their aesthetic appearance. Units located outdoors are vulnerable to harsh environmental conditions, including UV rays, acid rain, diesel fumes and airborn iron particles (i.e., dust) which over time may cause unit discoloring.

  • Page 30: Cb 2-E With Aed Housing Access And Maintenance

    6 key on their telephone keypad, which will provide access to the AED device. 4. The access panel on the back of the Code Blue unit is removed and the manual latch re- lease is pulled, granting access to the AED device.

  • Page 31: Locating Unit Serial Numbers

    CB 2 Series Administrator Guide 7 Locating Unit Serial Numbers Remove the speakerphone faceplate with the special security bit. The serial number will be listed on the manufacturer’s label located inside the unit (1). Code Blue 259 Hedcor Street Holland, MI 49423 USA 800.205.7186...

  • Page 32: Warranty

    Administrator Guide 8 Warranty Code Blue Corporation provides a limited warranty on this product. Refer to your sales agreement to establish the terms of the limited warranty. In addition, Code Blue’s standard warranty language as well as information regarding support for this product, while under warranty, is available through the following website: www.codeblue.com.

  • Page 33: Download Information

    Administrator Guide Download Information 9 Download Information Main Location: http://codeblue.com/support/downloads/ Code Blue now has a centralized location where you can find all the Installation, Setup, Information, Configuration & Operation instructions. 1. IA4100 Installation & Setup: http://codeblue.com/resources/admin-guides/ 2. IA4100 Configuration & Operation: http://codeblue.com/resources/user-guides/...
