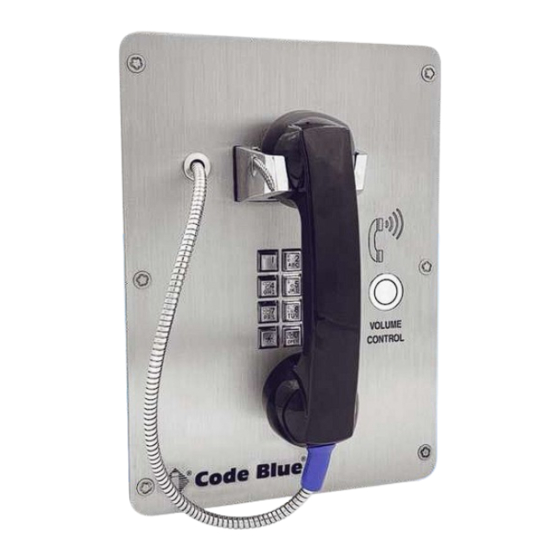

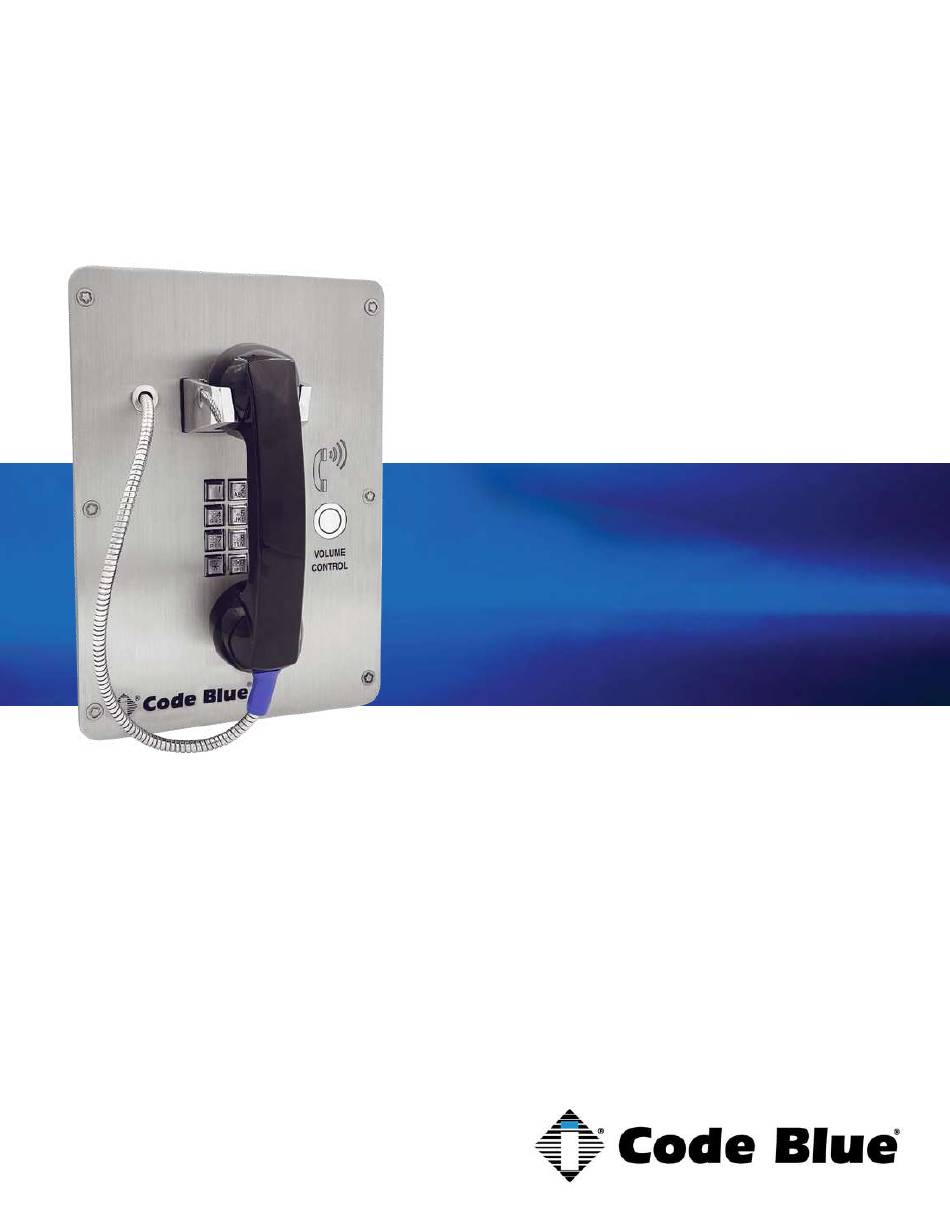

- Page 1 LS2000 Handset Speakerphone Models: IPVH01, IPVH02,IPVH03, IPVH04 Admin Guide Installation | Configuration | Support | Maintenance | Use 800.205.7186 www.codeblue.com...
- Page 2 OF OR IN CONNECTIONS WITH THIS GUIDE, THE SOFTWARE OR OTHER INFORMATION CONTAINED HEREIN OR THE USE THEREOF. Code Blue Corporation reserves the right to make any modifications to this guide or the information contained herein at any time without notice. The software described herein may also be governed by the terms of a separate user license agreement.
-
Page 3: Table Of Contents
Installation Instructions Tools Needed Basic Flush Mount Instructions Basic Surface Mount Instructions How to Update Connectors Wiring Diagrams Schematics Setting Up Your LS2000 Determine IP Address Default Login Info Network - General Settings Accounts SIP Settings Manage Accounts System Status... - Page 4 LS2000 Handset Phone Administrator Guide Table of Contents (continued) Section Section Title Page # Recordings Administration Date & Time Diagnostics Firmware Hardware Settings In Call Commands Compatibility Configuring for Cisco Unified Call Manager Configure Accounts UCM Configuration Configure End Users Configuring End Users for Secondary Accounts Configure Phones &...
-
Page 5: Introduction
Handset w/ Keypad and Volume Button Call Privacy Laws Some states require all parties to be aware that they are being recorded. Code Blue phones offer the ability to play a message stating that the caller is being recorded and giving the caller the option to continue or end the recorded call. -
Page 6: Safety Information
In some countries, a certified electrician may be required. NOTICE When transporting a Code Blue product, use the original packaging or equivalent to prevent damage to the product. Code Blue products shall be used in compliance with local laws and regulations. -
Page 7: Getting Started
LS2000 Handset Phone Administrator Guide 4 Getting Started This guide contains information and a general overview for LS2000, including applications, installation, and wiring. LS2000 Features Handset SIP 2.0 Protocol Support 3 Ethernet Ports 3 auxiliary N.O. input contact closures 3 auxiliary N.O. output contact closures... -
Page 8: Power Requirements
LS2000 Handset Phone Administrator Guide 5 Power Requirements The following table includes LS2000 and ALL OTHER Code Blue Devices and Enclosures for reference • 259 Hedcor Street • Holland, MI 49423 USA • 800.205.7186 • www.codeblue.com Code Blue page 8 of 53... - Page 9 LS2000 Handset Phone Administrator Guide KWHrs • 259 Hedcor Street • Holland, MI 49423 USA • 800.205.7186 • www.codeblue.com Code Blue page 9 of 53 GU-165-B...
- Page 10 LS2000 Handset Phone Administrator Guide • 259 Hedcor Street • Holland, MI 49423 USA • 800.205.7186 • www.codeblue.com Code Blue GU-165-B page 10 of 53...
- Page 11 LS2000 Handset Phone Administrator Guide • 259 Hedcor Street • Holland, MI 49423 USA • 800.205.7186 • www.codeblue.com Code Blue page 11 of 53 GU-165-B...
-
Page 12: Installation Instructions
Attach faceplate to enclosure using six security screws. Basic Surface Mount Installation Instructions for user by Installers: 1. Remove six security screws with Code Blue security bit and any 1/4” bit driver tool. 2. Separate LS2000 from enclosure and set aside carefully. -
Page 13: How To Update Connectors
Administrator Guide 7 How to Update Connectors As of 2020, many Code Blue products come with Wago connectors. These connectors provide ease of use and a much stronger connection. Below are the steps needed to change to the new connectors. - Page 14 LS2000 Handset Phone Administrator Guide • 259 Hedcor Street • Holland, MI 49423 USA • 800.205.7186 • www.codeblue.com Code Blue page 14 of 53 GU-165-B...
-
Page 15: Wiring Diagrams
32V AC or DC with current protection of 1.25 Amps. - Factory Reset Switch • With power connected to LS2000, hold down this reset switch for 12 seconds and then release. The unit will reboot. All settings will be lost. •... -
Page 16: Schematics
LS2000 Handset Phone Administrator Guide 9 Schematics 9.1 Flush Mount Mounting Schematics • 259 Hedcor Street • Holland, MI 49423 USA • 800.205.7186 • www.codeblue.com Code Blue page 16 of 53 GU-165-B... - Page 17 LS2000 Handset Phone Administrator Guide 9.2 Surface Mount Mounting Schema Mou • 259 Hedcor Street • Holland, MI 49423 USA • 800.205.7186 • www.codeblue.com Code Blue page 17 of 53 GU-165-B...
-
Page 18: Setting Up Your Ls2000
If you do not have network scanner software, you can download many free ones. “Advanced IP Scanner” is one example. Run a scan of the subnet the LS2000 device is plugged into, and your PC if plugged into the same network. -
Page 19: Default Login Info
LS2000 Handset Phone Administrator Guide Default login information is: Username: admin Password: admin Network - General Settings Once logged into the device, you can change the Network Settings in General Settings under Network if you want to switch over to a static IP address. - Page 20 LS2000 Handset Phone Administrator Guide Generally, you can leave the Host and Domain fields empty. SSH Port 22 is enabled by default. You can change the Port and disable it, if desired. If limiting Network Ports, then the ports to have open are:...
-
Page 21: Accounts
Account Name: Free form field to identify the account. Username/Number: Phone number or extension for the LS2000. This is still required for peer- to-peer; Any number value can be entered. Speaker Volume: You can set the speaker volume gain here in the GUI, as well as from a touch- tone phone using in-call commands. -
Page 22: Sip Settings
LS2000 Handset Phone Administrator Guide SIP Server Settings Server IP Address: You can use the domain name or IP address of your IP PBX, SIP Gateway, SBC or whatever you register SIP devices to. Password: This is the shared SIP secret password that the phone and your SIP registration server share. -
Page 23: System Status
LS2000 Handset Phone Administrator Guide System Status After creating your account and providing the SIP server, check the registration status on the System Status page. This is located in the top right corner of the screen. In this screen, you can see the current IP address of the phone, which is the same for the camera. -
Page 24: Audio
LS2000 Handset Phone Administrator Guide Audio Default RTP Ports and Codecs are listed here. These can be adjusted based on the needs of the SIP or PBX server. Code Blue • 259 Hedcor Street • Holland, MI 49423 USA •... -
Page 25: Multicast Audio
LS2000 Handset Phone Administrator Guide Multicast Audio To add a new multicast configuration, enter a Label, the Listening IP address and Port. To change the priority of the multicast, simply drag and drop. A phone call priority level also can be set with the Order Priority box checked. -
Page 26: General Events
LS2000 Handset Phone Administrator Guide General Events In the General Events setting you can alter the outgoing call tone, apply a call ending warning, allow or disallow incoming calls and apply location recordings. • 259 Hedcor Street • Holland, MI 49423 USA •... -
Page 27: Action Scripts
Action Scripts Action Scripts determine what happens when the handset is lifted, a number is dialed, or an aux input is activated. The button on the LS2000 is used to raise the output volume of the handset. Select the Hook Switch or aux input you would like to associate and action with. -
Page 28: Place A Call Action
For example, only allowing 4-digit extensions to be dialed. For Auto Dial calls enter in the “To” field the number you would like LS2000 to dial for Auto Calls. For peer-to-peer, enter the IP Address:Port the call is intended to go to. - Page 29 Note: If playing a remote message but not a local message, then the person at the LS2000 will hear dead air until the remote message is done playing. It is advisable to play the same message to both parties in this case.
-
Page 30: Control Aux Output
LS2000 Handset Phone Administrator Guide Control AUX Output Choose the AUX output you want to control. Choose enabled or disabled for this action. Enabled closes the normally open contact; disabled opens the normally open contact. Choose the duration you want the action to last. (0 seconds = indefinite.) - Page 31 Note: You can string together many actions in the action script. A typical action script for a LS2000 may just have a Place Call Action, or if your LS2000 has a remote beacon/strobe light, then it would look like the example below to have the strobe linked to the duration of the call.
- Page 32 LS2000 Handset Phone Administrator Guide • 259 Hedcor Street • Holland, MI 49423 USA • 800.205.7186 • www.codeblue.com Code Blue page 32 of 53 GU-165-B...
-
Page 33: Recordings
LS2000 Handset Phone Administrator Guide Recordings Upload recordings into the phone on this page. Recordings uploaded are then available in action scripts. The phone only can play uncompressed 16-bit PCM or compressed g.711 A-law/U-law format .wav files. If you upload unsupported audio file formats, they will not play in the action script. -
Page 34: Administration
From the General Administration page, you can pull OS and SIP logs that can be used to diagnose issues with functionality and SIP registration/Call Routing. The LS2000 can be rebooted from this page as well. Code Blue •... -
Page 35: Date & Time
LS2000 Handset Phone Administrator Guide Date and Time Adjust the date and time on this page or point the phone to a NTP server to have a permanent time source. • 259 Hedcor Street • Holland, MI 49423 USA •... -
Page 36: Diagnostics
LS2000 Handset Phone Administrator Guide Diagnostics With SNMP Traps enabled, enter the SNMP server name, port number (162 by default) and Read/Write Community Names. Each trap can be enabled or disabled to customize the output. The time interval for Power, Microphone and Speaker can be adjusted. By default, these are set to 900 seconds for Power Failure tests and 0 Seconds (Disabled) for Mic/Speaker tests. -
Page 37: Firmware
Administrator Guide Firmware Upload new firmware into the phone from www.codeblue.com/resources. Once you download onto your PC, unzip the file. From the LS2000 firmware page, browse to the .bin file on your PC and upgrade your LS2000. • 259 Hedcor Street •... -
Page 38: Hardware Settings
LS2000 Handset Phone Administrator Guide Hardware Settings Hardware settings allow you to enable or disable the Station Light, adjust the brightness, and blink rate. Each button can be configured as a Non-Emergency Button, Emergency or Volume Control. The color of the ring LED around each button can be changed in the drop-down menu. -
Page 39: In Call Commands
Decrease Speaker Gain Small adjustments to LS2000 speaker Note: These adjustments do not persist after the call has ended. The LS2000 phone will return to the default levels set in the account screen via the phone’s web GUI. See the Accounts chapter for further information. -
Page 40: Compatibility
LS2000 is a SIP version 2.0 (RFC3261) device and is compatible with IP Gateways and PBXs that can register third party SIP devices. You must verify that the IP PBX you are registering LS2000 to can handle third party SIP devices, whether through licensing and/or hardware add-ons. Please note that LS2000 currently does not work with a separate Proxy Server. -
Page 41: Configuring For Cisco Unified Call Manager
13 Configuring for Cisco Unified Call Manager PREPARATION 1. Record the MAC address and determine the current IP address for each LS2000 device you wish to use with CUCM. 2. Determine which partition you will put the LS2000 directory numbers into. -
Page 42: Ucm Configuration
Note: If you are setting up the LS2000 with secondary account support, make sure that you create each failover number twice. -
Page 43: Configuring End Users For Secondary Accounts
15. Under Line 1, for Display (Internal Caller ID), enter a descriptive name for Caller ID purposes. 16. If you wish to return a busy signal for silent monitoring if the LS2000 is in use, disable Call Waiting: under Multiple Call/Call Waiting Settings, For both Maximum Number of Calls and Busy Trigger, enter 1. -
Page 44: Integrating Informacast Utilizing Cisco Call Manager
Administrator Guide Configuring Phones and Directory Numbers for Secondary Accounts If you are going to use the LS2000’s secondary account functionality, repeat the above process with a local-use-only MAC address as outlined in Configuring End Users for Secondary Accounts, and specify a distinct directory number. -
Page 45: Troubleshooting
2. SIP/UDP outgoing to port 5060 IP PBX/SIP Gateway. 3. RTP/UDP incoming from IP PBX/SIP Gateway to UDP ports 23456-23556 (configurable). DHCP - LS2000 is set up for DHCP by default. If you cannot determine the IP address of your LS2000, contact your network administrator. -
Page 46: Remote Mount Beacon/Strobe Installation
LS2000 Handset Phone Administrator Guide 15 Remote Mount Beacon/Strobe Installation ATTACH J-BOX TO THE POLE Thread the banding (B) through the pole bracket (A) located on the backside of the J-box (C). Wrap the banding around the pole. Cut the banding to desired length. -
Page 47: S-1000 & S-1050 Strobe Operation
LS2000 Handset Phone Administrator Guide S-1000 & S-1050 Strobe Operation NOTE: Instructions pertain to: Model S-1000 LED Beacon/Strobe and Model S-1050 LED Beacon/Strobe only. POSITIVE (12-24V DC or AC) BLACK COMMON (GROUND) YELLOW (FLASH MODE) CONTACT CLOSED = "ON" YELLOW (FLASH MODE) REMOVE ALL POWER FROM UNIT BEFORE SERVICING. - Page 48 LS2000 Handset Phone Administrator Guide PROGRAMMING PRIMARY & SECONDARY MODES 1. Remove power from unit. 2. Short the Yellow wires together. 3. Restore power to the unit and wait until the unit begins to flash. Once the unit begins to flash, remove the short. The unit will alternately demonstrate the Secondary-Flash Mode and Primary-Steadyburn Mode that will be displayed during operation.
-
Page 49: Maintenance Schedule
LS2000 Handset Phone Administrator Guide 16 Maintenance Schedule LEGEND Guard Tasks Technician Tasks DAILY OR WEEKLY Perform functional communications check. Action: Press Red Button Strobe activates Red LED "Call Placed" light turns on Message plays Call connects, green LED "Call Received" light turns on... - Page 50 The Surface Care Frequency table below provides general guidelines to assist in configuring a schedule. Please note that the frequency of care required to guard the Code Blue unit’s surface from damage will also be dictated by local environmental characteristics.
-
Page 51: Warranty
17 Warranty Code Blue Corporation provides a limited warranty on this product. Refer to your sales agreement to establish the terms. In addition, Code Blue’s standard warranty language, as well as information regarding support for this product while under warranty, is available at www.codeblue.com/support... -
Page 52: Download Information
LS2000 Handset Phone Administrator Guide 18 Download Information Code Blue now has a centralized location where you can find installation, setup, information, configuration and operation instructions. Admin Guides: www.codeblue.com/resources/guides Frimware: www.codeblue.com/resources/firmware Maintenance Tips: www.codeblue.com/support Product Sheets: www.codeblue.com/resources/sheets Specifications: www.codeblue.com/resources/specifications For Legacy Product Information: www.codeblue.com/legacy-products... -
Page 53: Legal & Regulatory Information
This digital apparatus complies with CAN ICES-3 (Class A). The product shall and fitness for a particular purpose. Code Blue shall not be liable or be connected using a shielded network cable (STP) that is properly responsible for incidental or consequential damages in connection with grounded.
