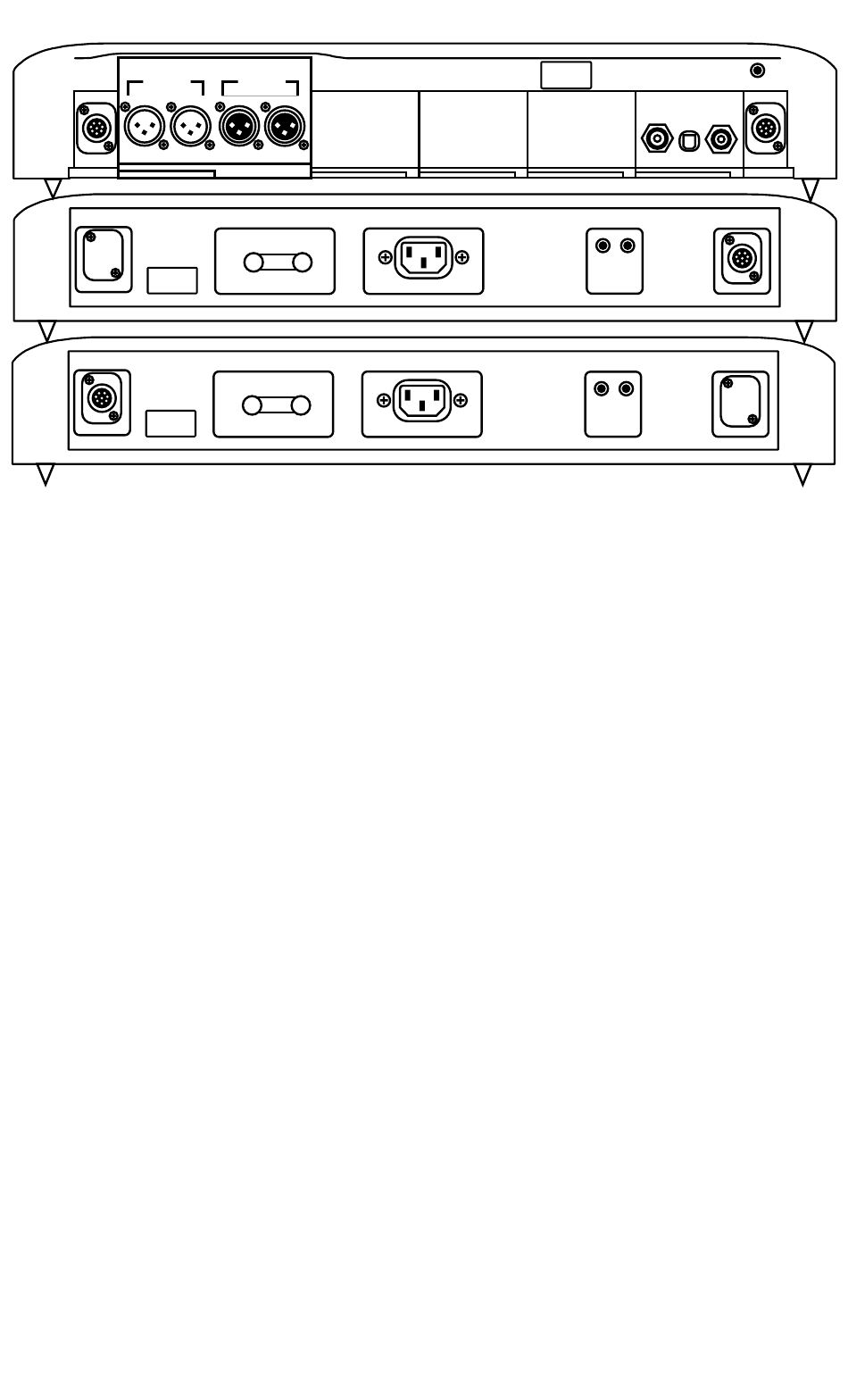

Removing and Installing Modules

Removal and installation of modules is a completely tool free process
that is easily performed at the back of the unit. Under the lower lip of
each module is a lever arm. Simply pull the lever out and away until it
is perpendicular with the back of the unit. Then gently, but firmly, pull
the module lip and lever until the module releases and slide it out of
the unit.
Analog output and analog input modules must be installed in a
special fashion. When installing any analog output or analog input
module, you must remove the preamp output module and attach
the analog output or analog input module into the side connector
of the larger preamp module and then slide the connected pair into
the back of the unit as one while making sure both levers are out and
tightened at the same time.

Module Handling

It is important that you refrain from touching the circuit board or
rear connector of any input or output module when removing or
installing any input or output module from your DAC. When handling
these modules it is important that you only contact the metal case
of the module or the front edge of the module where the cam arm is
located. Improper handling of your modules can result in static shock
and damage to the module or DAC.
