Signature DAC V
Power Base Users Manual
I
:
nputs
DAC o
:
utput
t
o
:
rAnsport
utput
C
F
:
ontrol
eAtures
Voltage Conversion and Changing Fuses
The Power Base detects the input voltage and switches for 120 V or 240 V operation.
Two fuses are provided:
* 5A 250V - 5 mm x 20 mm miniature fuse is the main fuse.
* 100mA 250V - 5 mm x 20 mm miniature fuse is for the standby supply.
These fuses are to protect the product in the case of internal failure. These fuses should not blow during unusual power surges or disturbances. To
check the fuses, remove the cover and examine.
Warranty
All MSB products carry a one year warranty in the country of origin. No returns accepted without an RMA. Upon receipt, MSB will repair or replace
any defective product. All product shipped FOB Watsonville. Shipping and shipping damage is the responsibility of the consignee.
Troubleshooting
Switch is Amber - unplug remote trigger and test.
MSB product not on but switch green - Check cable. Plugged in all the way?
100 - 120 VAC
200 -240 VAC
or
swItChAble
12VDC @1.75 A
12VDC @1.75 A
+/- 24 V DC @ 1 A
12 VDC @ 3 A
12 V
/
remote power on
oFF
o
F
p
r
ptIonAl
ront
Anel
emote
Rev 7 - February 2015

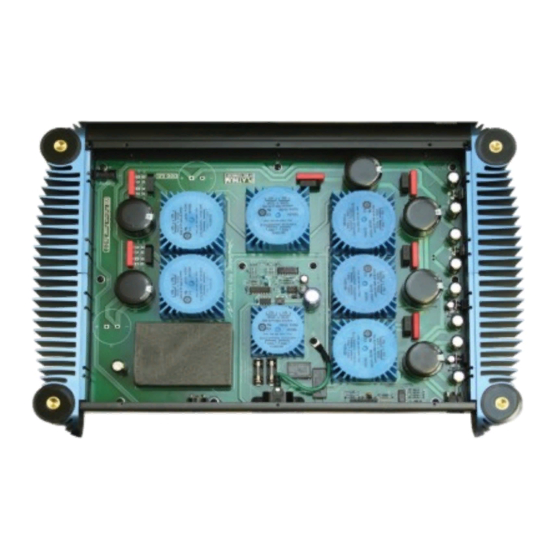

Signature Power Base with 7 transformers..
