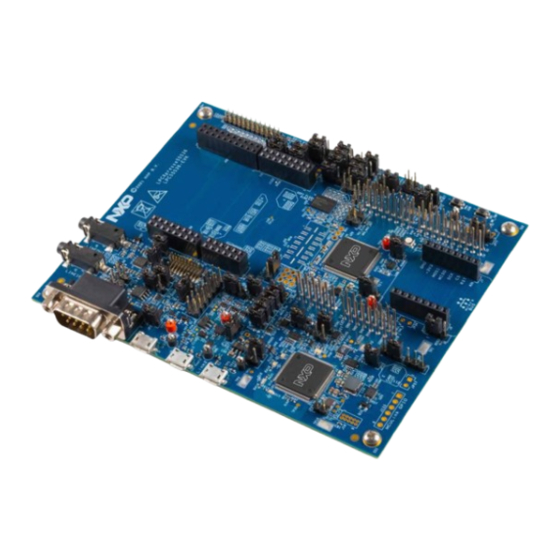

- Page 1 QUICK START GUIDE LPC5536-EVK LPC5536-EVK Evaluation kit supports LPC553x MCU Cortex -M33 ® ® 150 MHz Arm Cortex -M33 ® ® Floating Point Unit (FPU) and Memory Protection Unit (MPU) Up to 256 KB on-chip flash program memory Up to 128 KB total SRAM...
- Page 2 GET TO KNOW THE LPC5536-EVK Motor 2 + Motor 2 + Arduino Arduino J102 J102 J182 J182 J122 J122 Audio In (J5) Audio In (J5) Audio Out (J6) Audio Out (J6) CAN (J19) CAN (J19) Ext. Codec (J44) Ext. Codec (J44)
- Page 3 QUICK START GUIDE LPC5536-EVK GET TO KNOW THE LPC5536-EVK CONTINUED Motor 1 Motor 1 J9 J9 Figure 2: LPC5536-EVK Pin-Out...
- Page 4 USB connector J1. When the board is powered up, LED D5 turns ON. 2. The LPC5536-EVK board comes preprogrammed with a demo that will blink each RGB LED three times. In addition, pressing SW1 will turn on the RED LED and pressing SW3 will turn on the GREEN LED.
