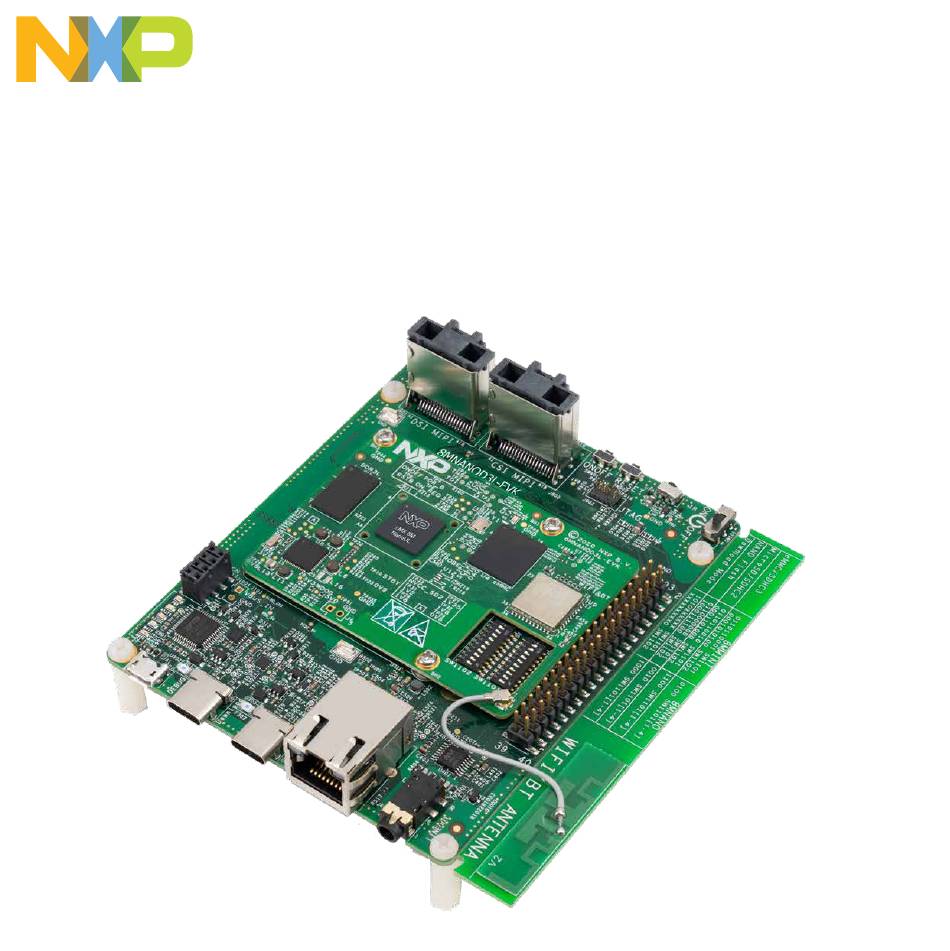

- Page 1 QUICK START GUIDE i.MX 8M NanoUL i.MX 8M NANO ULTRALITE DDR3L EVK...
- Page 2 ABOUT THE i.MX 8M NANO ULTRALITE DDR3L EVK The i.MX 8M Nano UltraLite (UL) applications processor is a member of the i.MX 8M family of products focused on delivering state-of-the- art capabilities with high-performance processing while optimized for low power consumption. FEATURES Compute Module: Baseboard:...
- Page 3 QUICK START GUIDE i.MX 8M NanoUL GET TO KNOW THE i.MX 8M NANO ULTRALITE DDR3L EVK On/Off Reset On/Off Reset IR Receiver IR Receiver Power Switch Power Switch Display: MIPI-CSI Display: MIPI-CSI JTAG JTAG Expansion Connector Expansion Connector CPU Board CPU Board BOOT Switches BOOT Switches...
- Page 4 GET TO KNOW THE i.MX 8M NANO ULTRALITE DDR3L EVK CONTINUED MicroSD Card MicroSD Card Connector Connector Audio Board Audio Board Connector Connector Figure 2: Back view i.M X 8M Nano UL DDR3L EVK board...
-
Page 5: Getting Started
QUICK START GUIDE i.MX 8M NanoUL GETTING STARTED Unpack the Kit The i.MX 8M Nano UL DDR3L EVK (8MNANOD3L-EVK) is shipped with the items listed in Table 1. Ensure the items are available in the EVK box. Table 1 Kit Contents... - Page 6 GETTING STARTED CONTINUED Download Software and Tools Installation software and documentation are available at www.nxp.com/imx8mnanoulevk. The following are available on the website: Table 2 Software and Tools ITEM DESCRIPTION Documentation • Schematics, layout and Gerber files • i.MX 8M Nano UL DDR3L EVK Board Hardware User’s Guide •...
-
Page 7: Setting Up The System
QUICK START GUIDE i.MX 8M NanoUL SETTING UP THE SYSTEM The following will describe how to run the If the serial port is not recognized, pre-loaded Linux image on the i.MX 8M download and install updated drivers Nano UL DDR3L EVK. as listed in the “Debug Serial Console”... - Page 8 GETTING STARTED CONTINUED Connect Power Supply Connect the USB Type-C plug of the Power Supply to J302 (USB Type-C Port2), then power up the board using switch SW101. Use only J302 for power delivery to the board. Board Boot During the boot process, there will be operating system status information scrolling on the terminal window of the PC.
-
Page 9: Additional Information
QUICK START GUIDE i.MX 8M NanoUL ADDITIONAL INFORMATION Boot Switches SW1101[1-4] are the boot configuration switches and the default boot device is eMMC/ uSDHC3, as shown in Table 4. If you want to try other boot devices, you need to change the boot switches to corresponding values as listed in Table 4. - Page 10 ADDITIONAL INFORMATION CONTINUED Do More with Accessory Boards MINISASTOCSI: MIPI-CSI CAMERA MODULE Use this MIPI-CSI camera module for machine vision, video streaming and recording. More information can be found at: https://www. baslerweb.com/en/embedded- vision/embedded-vision-portfolio/ embedded-vision-kits/daa3840- 30mc-imx8mp-evk/lease...
- Page 11 EUROPEAN DECLARATION OF CONFORMITY (Simplified DoC per Article 10.9 of the Radio Equipment Directive 2014/53/EU) This apparatus, namely 8MNANOD3L-EVK, conforms to the Radio Equipment Directive 2014/53/EU. The full EU Declaration of Conformity for this apparatus can be found at this location:...
-
Page 12: Warranty
Bluetooth SIG, ® Inc. and any use of such marks by NXP Semiconductors is under license. Arm and Cortex are trademarks or registered trademarks of Arm Limited (or its subsidiaries) in the US and/or elsewhere. The related technology may be protected by any or all of patents, copyrights, designs and trade secrets.
