Summary of Contents for Trotec PAE 51

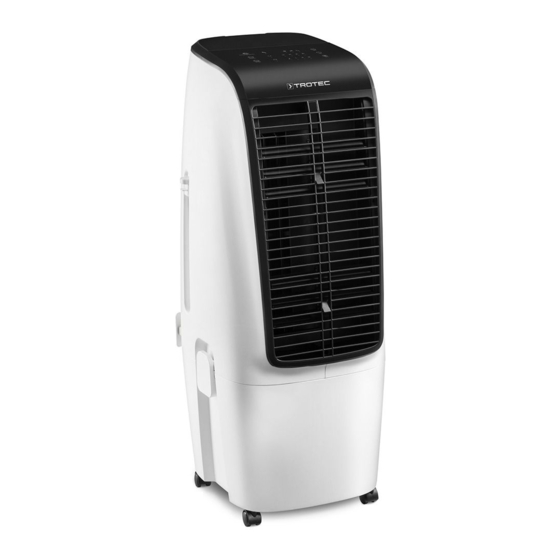

- Page 1 PAE 51 OPERATING MANUAL AIR COOLER...
-
Page 2: Table Of Contents
• Check accessories and connection parts for possible Information marked with this symbol indicates that the damage prior to every use of the device. Do not use any operating manual must be observed. defective devices or device parts. Operating manual – air cooler PAE 51... - Page 3 The liquid inside the ice packs can be harmful to hazard! health! If the liquid was swallowed, immediately seek medical attention. If the liquid came into contact with your eyes, rinse with water and immediately consult an ophthalmologist. Operating manual – air cooler PAE 51...
-
Page 4: Information About The Device
The device can be operated in an energy-efficient manner. If none of the operating elements have been actuated for a period of 60 s, the LEDs are automatically dimmed. Operating manual – air cooler PAE 51... - Page 5 Ice pack Remote control Air filter Stopper for slider Locking clasp for water tank Slider for pump Remote control receiver Water funnel Please note the warnings on the labels attached to the device. Operating manual – air cooler PAE 51...
-
Page 6: Transport And Storage
• Set the device up in an upright and stable position. • Do not create tripping hazards when laying the power cable or other electric cables, especially when positioning the device in the middle of the room. Use cable bridges. Operating manual – air cooler PAE 51... - Page 7 Filling the water tank The device requires fresh drinking water for air cooling. Note Fill the device with fresh drinking water only. The water temperature must not exceed 40 °C. Operating manual – air cooler PAE 51...
- Page 8 Otherwise wipe it dry. Note Always secure the slider in its upper position by means of the stopper before lifting off the top section of the device. Otherwise the pump and the mechanism might be damaged. Operating manual – air cooler PAE 51...
-
Page 9: Operation
On / Off button Switching the device on or off socket. Oscillation button Switching the swing function on Info or off An acoustic signal will be emitted; the device is now in standby mode. Operating manual – air cooler PAE 51... - Page 10 2. To adjust the fan stage, press the Speed button (25) until the LED for the desired fan stage (26) is illuminated. Note The Silent fan stage can only be selected in ventilation mode, possibly combined with air cooling. Operating manual – air cooler PAE 51...
- Page 11 If you switch the device back on from standby, a perhaps previously set timer and fan stage will have been stored by the device which starts in ventilation mode. Operating manual – air cooler PAE 51...
-
Page 12: Available Accessories
5. Close the flap for the water funnel (16) or put the upper section back onto the water tank and shut the locking clasps (13). 6. Make sure that the device is neither damp nor wet on the outside. Otherwise wipe it dry. Operating manual – air cooler PAE 51... -
Page 13: Errors And Faults
• The swing function motor might be defective. Please contact the customer service. The device is loud or vibrates: • Check whether the device is set up in a stable and upright position. Operating manual – air cooler PAE 51... -
Page 14: Maintenance
11. Date: ......12. Date: ......Signature: ......Signature: ......Signature: ......Signature: ......13. Date: ......14. Date: ......15. Date: ......16. Date: ......Signature: ......Signature: ......Signature: ......Signature: ......Operating manual – air cooler PAE 51... - Page 15 6. Remove all calcium deposits in the water tank. 7. Dry the inside of the tank with a lint-free cloth. 8. Fill the water tank with fresh drinking water if you want to continue operation (see chapter Adding water). Operating manual – air cooler PAE 51...
- Page 16 Before reinserting the air filter, make sure that it is undamaged and dry! 1. Loosen the screw at the air filter. 2. Remove the air filter from the device. Operating manual – air cooler PAE 51...
- Page 17 1. Loosen the screw at the air filter. 4. Dispose of used honeycomb filters according to the national regulations. 5. Insert the new honeycomb filter into the device. 2. Remove the air filter from the device. Operating manual – air cooler PAE 51...
-
Page 18: Technical Annex
Directive 2006/66/EC of the European Parliament and of the Council of 6 September 2006 on batteries and accumulators. Please dispose of batteries and accumulators according to the relevant legal requirements. Operating manual – air cooler PAE 51... - Page 20 Trotec GmbH & Co. KG Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
