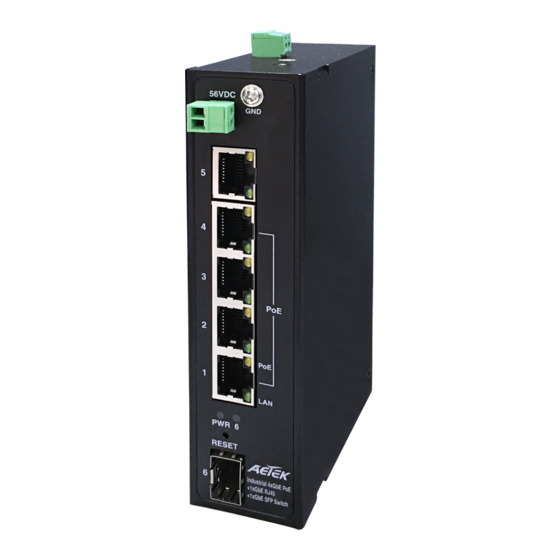

AETEK H30-042-30 Quick Installation Manual

Model Description
H30-042-30 4xGbE 30W PoE + 1xGbE RJ45 + 1xGbE SFP
H30-044-30 4xGbE 30W PoE + 2xGbE RJ45 + 2xGbE SFP
4xGbE 95W PoH PoE + 2xGbE RJ45 + 2xGbE
H30-044-90
SFP
4xGbE 90W bt PoE + 2xGbE RJ45 + 2xGbE
H30-044-91
SFP
H30-082-30 8xGbE 30W PoE + 2xGbE SFP
PACKAGE CONTENTS
* 1x PoE switch
* 1x DIN rail bracket
IMPORTANT:
1. Install the PoE switch in a ventilated and dry place that is free of electromagnetic source, vibration, moisture, and dust.
2. Make sure the ventilation openings on the switch are not blocked.
3. Use fiber optic cables nd transceiver compliant with the following: Multi-mode: 50/125um, 62.5/25um, 850nm;
Single-mode : 9/125um ,1310nm.
4. DC input. Follow the printed polarity for V+, V-, and Ground.
CONNECTION
1. Pull out the 2-pin terminal block.
2. Connect power wires to V+ and V-, Use a flatlade screwdriver to secure the wire-clamp screws.
3. Connect SFP ransceiver to the fiber port.
4. install the 2-pin terminal block, and check power LED.
5. The switch must be grounded properly by using a ground wire to connect switch ground screw to earth ground,
otherwise, the surge protection level will be greatly reduced.
Power LEDs
H30 / H36 Series
LED Color
Power Amber
PoE Link Amber
Data Link Green
SFP Link Green
H32-042-30
LED Color
Power Amber
24VDC Green
56VDC Amber
PoE Link Amber
Data Link Green
SFP Link Green
All Specifications are subject to change without noice.
RESET
Reset the switch
Quick Installation Guide
Industrial GbE PoE Switch
* 1x Quick Installation Guide
State Description
ON The switch is powered on correctly.
Off Not receiving power from power 1 or power 2.
ON PD is detected on the designated port.
Off No PD is detected.
ON Tx link is detected.
Off Link is not detected.
Flashing Data is being transmitted or received.
ON Fiber link is detected.
Off Fiber link is not detected.
Flashing Data is being transmitted or received.
State Description
ON The switch is powered on correctly.
Off Not receiving power from power 1 or power 2.
ON The No.5 port output is 24VDC PoE
ON The No.5 port output is 56VDC PoE
Off The No.5 port is no PoE ouput
ON PD is detected on the designated port.
Off No PD is detected.
ON Tx link is detected.
Off Link is not detected.
Flashing Data is being transmitted or received.
ON Fiber link is detected.
Off Fiber link is not detected.
Flashing Data is being transmitted or received.
3 seconds Blinking Green
Model Description
4xGbE 30W PoE + 1xGbE (24VDC/56VDC) PoE
H32-042-30
+ 1xGbE SFP
H36-042-30 4xGbE 30W PoE + 1xGbE RJ45 + 1xGbE SFP
4xGbE 95W PoH PoE +2xGbE RJ45 + 2xGbE
H36-044-90
SFP
H36-044-91 4xGbE 90W bt PoE +2xGbE RJ45 + 2xGbE SFP
H36-082-30 8xGbE 30W PoE + 2xGbE SFP
* 2x 2pin terminal block
All LEDs off
P/N: A625012700G
