Cold Jet IceTech R1000H User Manual page 105

PROPRIETARY AND CONFIDENTIAL: THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF ICETECH A/S. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF ICETECH A/S IS PROHIBITED.
7
3
5
5
6
1
4
947,90
2
1
ITEM NO. PART NUMBER
1 511251
2 511155
3 512379
4 514222
5 511115
6 513712
7 501289
Material:
-
Description:
IceTech A/S

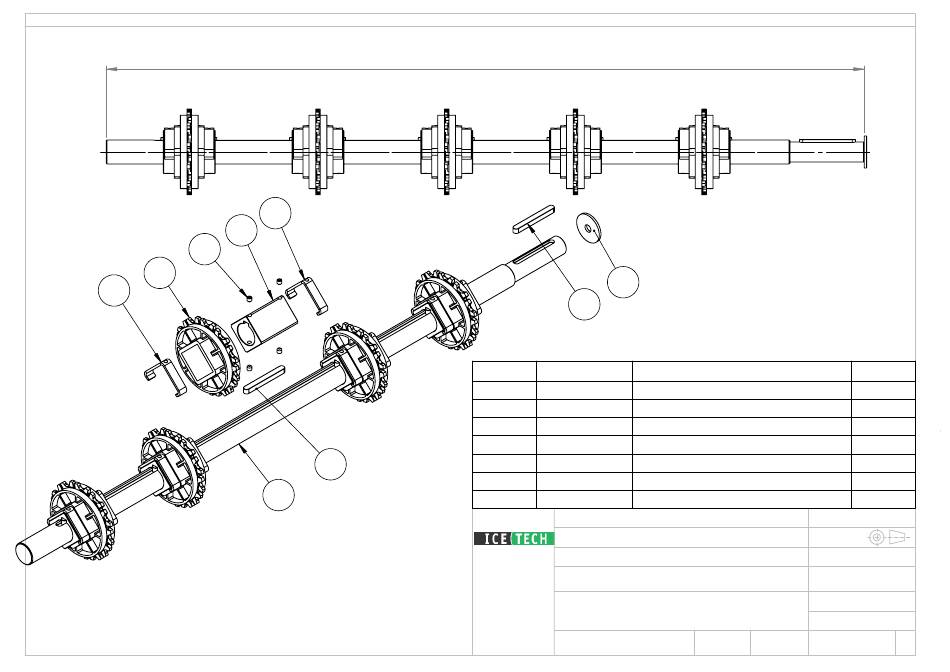

Drive end shaft assembly
Industrivej 62
DK-6740 Bramming
TLF. +45 76561500
Article nr.:
FAX. +45 76561509
513734
www.icetechworld.com
Description
Parallel key A8x7x70 DIN6885
Securing plate
Sprocket s0900-12t-104mm-40mm_sq
Shaft for drive, conveyor outlet, R1000
Intralox retaining ring A3BXXX040MNM
Fixing hub for sprocket and shaft
DIN 916 pin screw M6x6, A2
Sheet no:
Projection:
Format:
Copy from:
Creator:
Date:
Scale: Weight: Drawing no.:
1:4 P322-1-19416
6.48 kg
QTY.
6
1
5
1
10
5
20
1
A4
18298
jvm
27-04-17
Rev:
A
