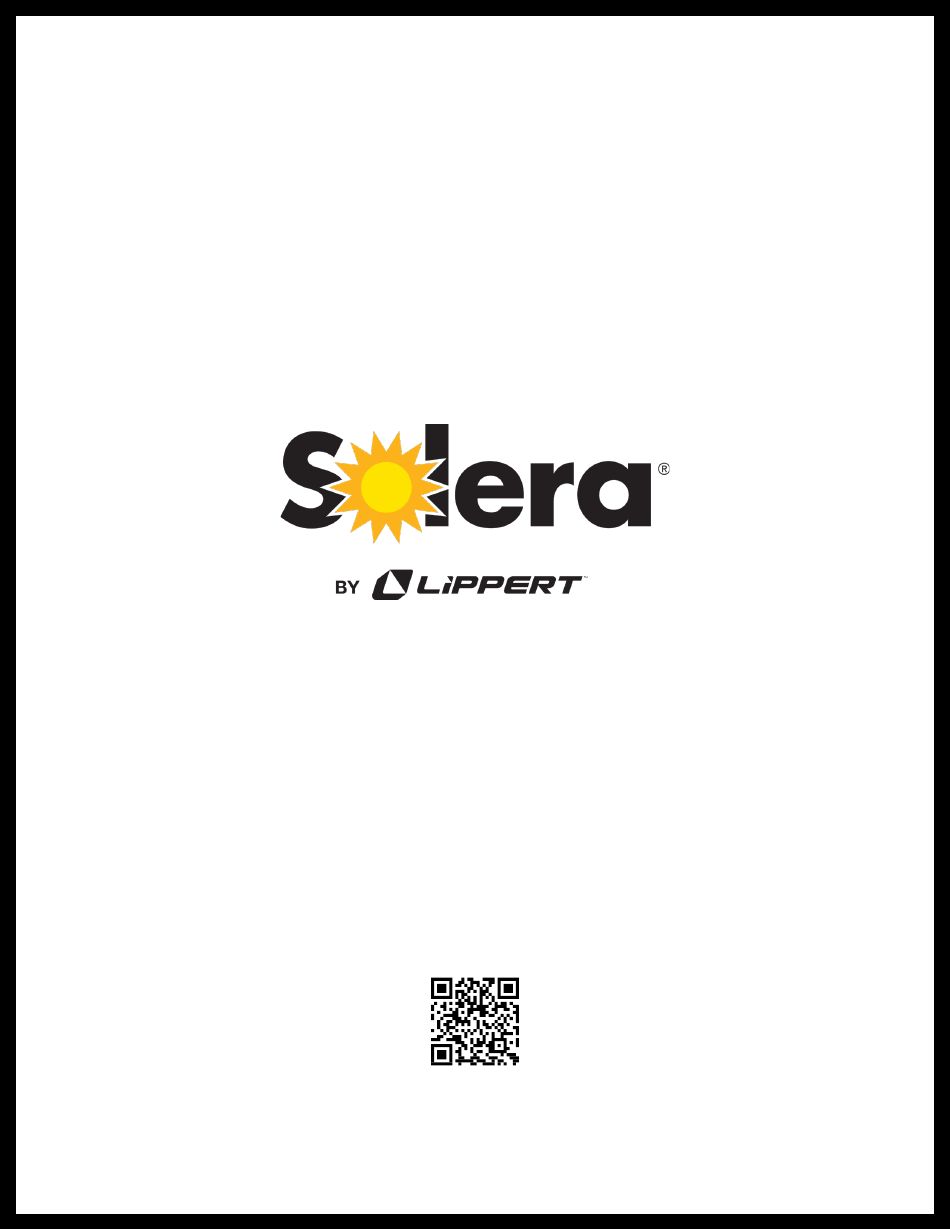

- Page 1 3000OG Series Solar Awning OWNER'S MANUAL Scan for product support...
- Page 2 Lippert’s Solera® OG (Off-Grid) brand awning installs like a regular awning. However, with Renogy’s proprietary thin-film solar technology, Lippert awnings provide the extra benefit of up to 300 watts of solar power without the labor, expense, additional weight and roof intrusion of installing conventional rigid panels.
- Page 3 Solera® Power Awning. operating the Solera® Power Awning in any other manner than described may result in personal injury, damage to the recreational vehicle unit or the awning assembly as well as voiding the Lippert Components Limited Warranty.
- Page 4 Note: Some units may not use the Lippert switch (Fig. 1). Extending the Awning IMPACt oR CRUSH HAZARD - Pitch MUSt be set to lower one side of the awning after the awning is extended. Failure to set pitch could lead to water, snow or debris accumulating on the awning fabric, which could cause the awning to move unpredictably, become unstable, and bend or collapse causing death or personal injury or property damage.
- Page 5 Set pitch using pitch arms with gas strut (Fig. 3A). Scan this QR Code to watch the video on How to Correctly Pitch a Lippert Awning. A. Choose the side of the awning for optimum shade or convenient water runoff. Pitch MUSt be set by adjusting the articulating arm to tip one side of the awning to allow water runoff.
- Page 6 Adjusting Pitch Arm Fasteners If the pitch arm does not hold position, it can be tightened by adjusting the bolt (Fig. 6A) in the center of the pitch arm. Use a 1/2" wrench to tighten the nut (Fig. 6A) while holding the bolt (Fig. 6B) on the other side of the pitch arm with a 1/4"...
- Page 7 troubleshooting Manual Override In the event of power loss or motor failure, the awning can be extended or retracted manually. Perform the following procedure to manually extend or retract the awning. Note: This procedure may also be performed to extend or retract the awning in the event of dry camping or camping without a battery.
- Page 8 Maintenance of Awning Resources Required • 5 gallon bucket • Clean water • cup of dish soap Fabric Care overspray of cleaning solution can cause eye and sensitive skin irritation. Flush affected area with clean water and seek medical attention, if necessary. Wear eye protection and appropriate protective clothing to avoid personal injury.
- Page 9 Maintenance, Cleaning of AIPV (Awning Integrated Photovoltaic) Module Resources Required • Rubber-soled shoes • Protective glovers • Nonabrasive microfiber cloth Module Care Keeping the modules clean and unsoiled enables maximum power production. While rain will clean off dust and light soiling, it is recommended to inspect and clean the AIPV modules periodically. In high-soiling areas such as the desert or rural areas with agriculture, the AIPV modules may require more frequent cleaning.
- Page 10 Lippert representative has been provided. Any unauthorized use shall void any applicable warranty. The information contained in this manual is subject to change without notice and at the sole discretion of Lippert. Revised editions are available for free download from lippert.com...
