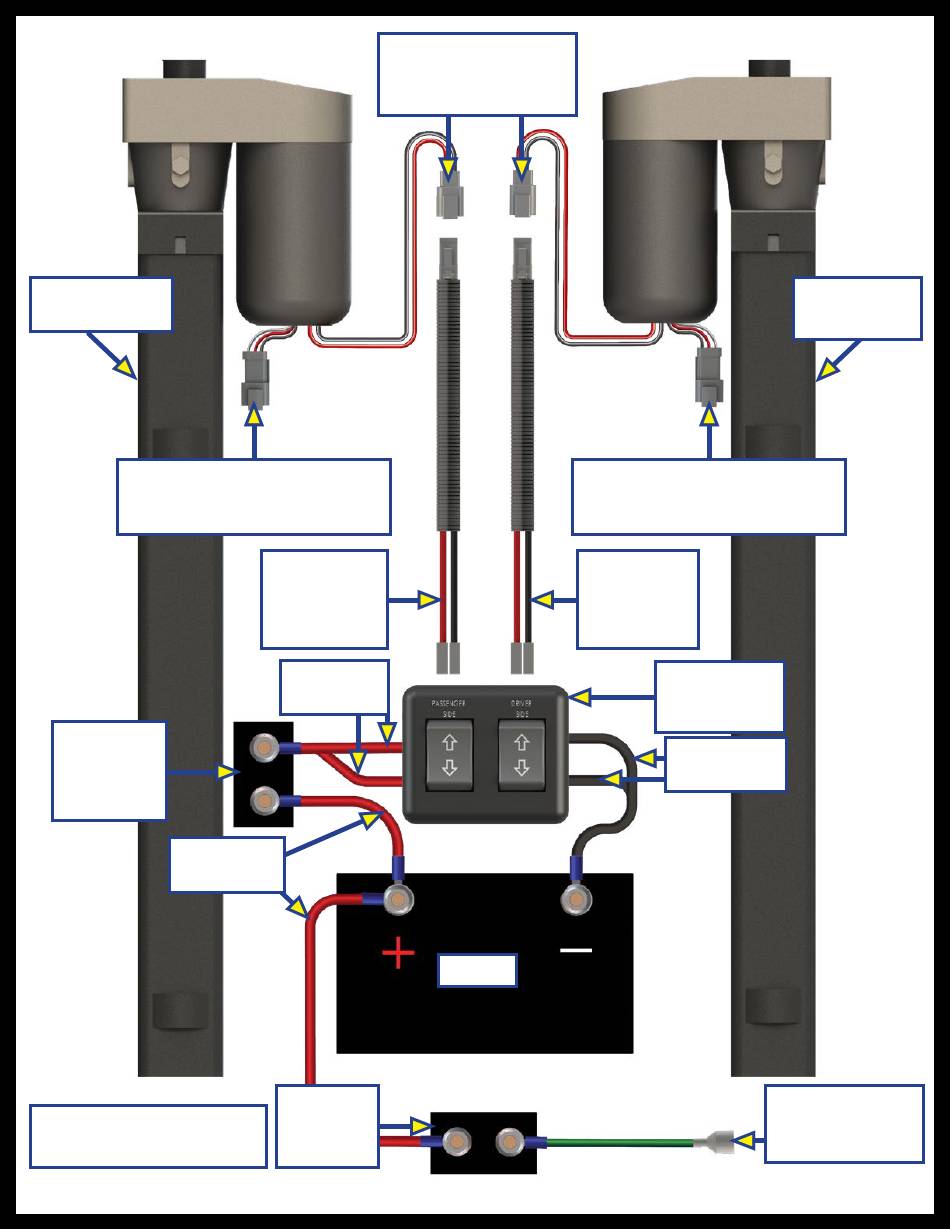

Wiring Diagram
Passenger Side
Landing Gear
Landing Gear Connection
for Future Leveling Installation
(not used at this time)
30 Amp
Auto-Reset
Circuit
Breaker
Red Battery
Power
All OEM Supplied Wiring
to be 6 AWG
Rev: 09.23.21
Landing Gear
2 Wire Harness
Connections
Landing
Gear Harness
Passenger
Side
Red Switch
Power
Battery
50 Amp
Circuit
Breaker
Page 6
Landing Gear Connection
for Future Leveling Installation
(not used at this time)
Landing
Gear
Harness
Driver's Side
Landing Gear
Switch Panel
Black Switch
Ground
Driver's Side
Landing Gear
Prep Wire for
Future Leveling
Controller Power
CCD-0004396
